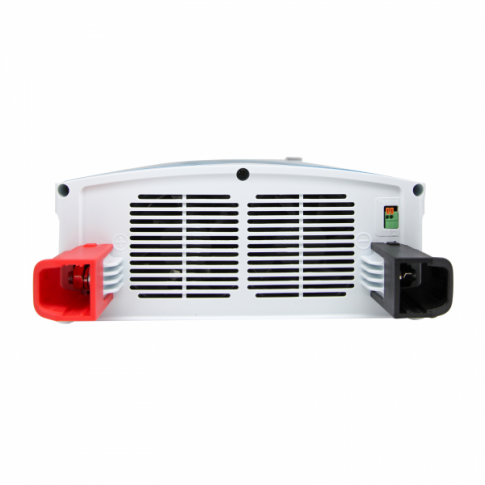

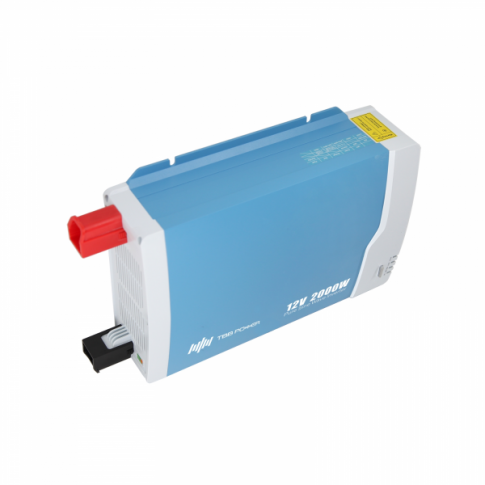

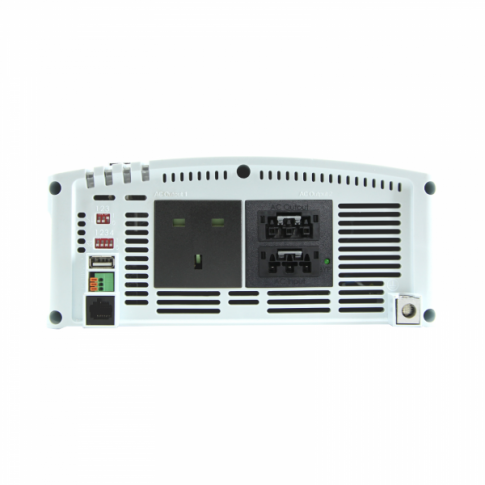

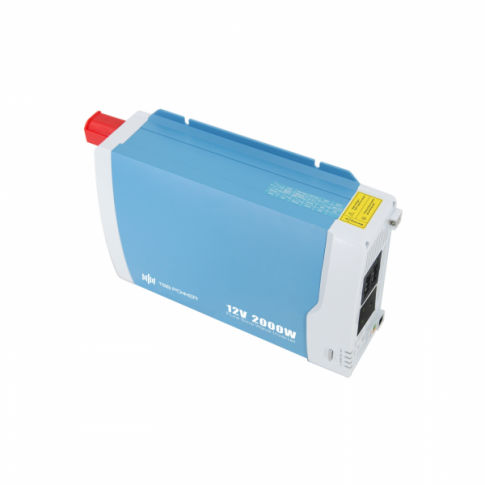

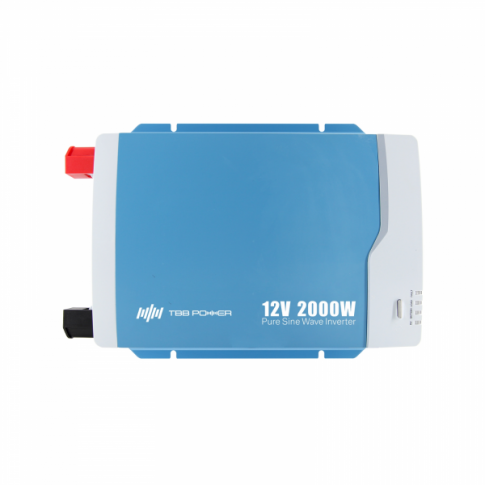

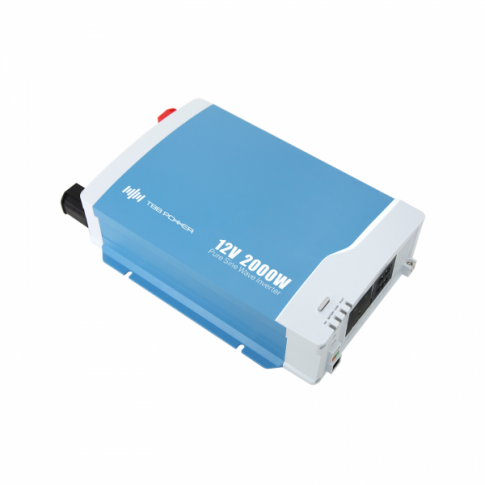

TBB Power 2000W 12V Pure Sine Wave Inverter with AC Bypass
TBB Power 2000W 12V Pure Sine Wave Inverter with AC Bypass
SKU:TBB-IH2000BYP
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
TBB Power 2000W 12V Pure Sine Wave Inverter
Model IH2000BYP | Integrated 20A AC Bypass Function
The TBB Power IH2000BYP is a robust 2000W 12V pure sine wave inverter, part of the reliable eRay series, designed for converting 12V DC battery power into stable 230V AC electricity. This unit is ideal for powering sensitive electronics and appliances in mobile and off-grid environments, ensuring clean and consistent power output.
A key feature of this inverter is its integrated 20A AC bypass function, which allows for automatic switching to an external AC source, such as shore power or a generator. This seamless transfer capability helps to preserve battery life and provides uninterrupted power when an alternative AC supply is available.
SEAMLESS POWER: Automatic 20A AC bypass for uninterrupted power from shore or generator.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable power suitable for sensitive electronics. |
| ▶ Integrated 20A AC Bypass — Automatically switches to external AC power, preserving battery life. |
| ▶ 200% Surge Capacity — Handles high start-up loads from demanding appliances like microwaves. |
| ▶ Adjustable Power Saving Mode — Optimises energy consumption when no load is detected. |
| ▶ Built-in USB Charging Port — Convenient 5V/2A output for charging mobile devices. |
| ▶ High Efficiency Design — Maximises power conversion from your 12V battery bank. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal DC Input Voltage | 12V DC |
| Continuous AC Output Power | 2000W |
| Peak Surge Power (1s) | 4000W |
| AC Output Voltage | 230V AC |
| AC Output Frequency | 50Hz |
| Waveform | Pure Sine Wave |
| Max AC Bypass Current | 20A |
| Transfer Time (AC to Inverter) | <30ms |
| Max Efficiency | >90% |
| USB Output | 5V / 2A |
| Dimensions (L x W x H) | 403 x 256 x 99 mm |
| Weight | 4.8 kg |
Operating & Power Guidance
| Feature | Description |
|---|---|
| AC Bypass Function | Automatically transfers load to grid/shore power when available, bypassing the inverter and saving battery power. |
| Power Saving Mode | Reduces idle power consumption by shutting down the inverter when no load or a very light load is detected. |
| Remote Control Port | Allows connection of an optional remote control switch (TBB-RBYP, sold separately) for convenient operation. |
| Battery Compatibility | Compatible with various 12V battery types, including AGM, Gel, Flooded Lead-Acid, and LiFePO4 batteries. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides reliable 230V AC power for domestic appliances and sensitive electronics on the go, with seamless shore power integration. |
| Marine Vessels | Powers onboard electrical systems, offering pure sine wave output for navigation equipment and entertainment systems. |
| Off-Grid Cabins & Sheds | Converts 12V battery bank power into usable household electricity for lighting, tools, and small appliances. |
| Backup Power Systems | Can be integrated into small backup systems to provide essential AC power during grid outages. |
Built-In Protection Functions
The TBB Power IH2000BYP inverter incorporates multiple safety features to protect both the unit and your connected appliances. These include: Overload Protection • Short Circuit Protection • Over Temperature Protection • Low Battery Voltage Alarm • Low Battery Voltage Shutdown • High Battery Voltage Shutdown.
Common Questions
What does 'Pure Sine Wave' mean?
Pure sine wave inverters produce AC power that is identical to or even cleaner than grid electricity. This makes them safe and suitable for all types of electronics, especially sensitive devices like laptops, medical equipment, and audio systems, preventing potential damage or malfunction.
How does the AC bypass function work?
The integrated 20A AC bypass automatically detects when an external AC power source (like shore power or a generator) is connected. It then seamlessly switches the load from the inverter to this external source, allowing your batteries to rest or recharge, and providing continuous power without interruption.
Can I use a remote control with this inverter?
Yes, the TBB Power IH2000BYP is compatible with the optional TBB-RBYP remote control switch (sold separately). This allows for convenient monitoring and control of the inverter from a distance, such as from a vehicle dashboard or control panel.
What battery types are compatible with this 12V inverter?
This 12V inverter is compatible with a wide range of 12V battery technologies, including traditional lead-acid batteries such as AGM, Gel, and Flooded types, as well as modern Lithium Iron Phosphate (LiFePO4) batteries.
Installation Notes
- ▶ Professional Installation: For safety and optimal performance, installation by a qualified electrician or certified solar/automotive technician is highly recommended.
- ▶ DC Cable Sizing: Ensure DC input cables are correctly sized for the 2000W output and 12V system to prevent voltage drop and overheating. Refer to the manufacturer's manual for specific recommendations (typically 50mm² or larger for this power level).
- ▶ AC Wiring: The AC input for the bypass function and AC output should be wired with appropriate circuit protection (e.g., 20A circuit breaker for the bypass input) and according to local electrical regulations.
- ▶ Ventilation: Install the inverter in a well-ventilated area, free from direct sunlight, moisture, and flammable materials, to ensure proper heat dissipation.
Before You Buy
- ▶ System Voltage: Confirm your battery bank is a 12V DC system. This inverter is not compatible with 24V or 48V systems.
- ▶ Power Requirements: Verify that 2000W continuous output is sufficient for your intended appliances. Consider the surge capacity for start-up loads.
- ▶ Physical Dimensions: Check the inverter's dimensions (403 x 256 x 99 mm) to ensure it fits your planned installation space.
- ▶ AC Bypass Need: Evaluate if the 20A AC bypass feature is beneficial for your application, particularly if you frequently connect to shore power or a generator.
Please verify all specifications and compatibility requirements with your system before purchase. Product specifications are subject to change by the manufacturer.
