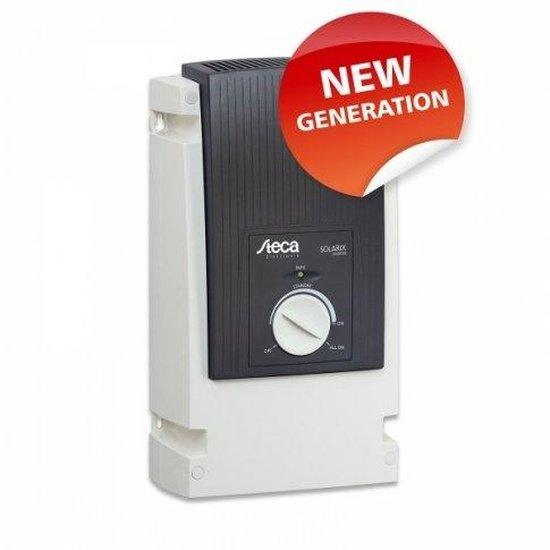

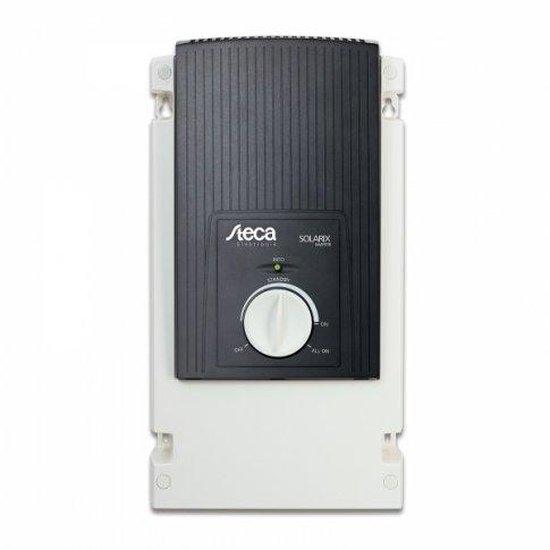

Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output
Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output
SKU:STECA-PI1500-48
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Steca Solarix 1500W 48V Pure Sine Wave Power Inverter
Model: PI1500-48 | 230V AC Output | High Efficiency Off-Grid Solution
The Steca Solarix PI1500-48 is a robust 1500W pure sine wave power inverter designed for reliable 48V off-grid solar systems. Engineered in Germany, this inverter delivers a stable 230V AC output, making it suitable for a wide range of domestic and professional appliances. Its innovative design focuses on minimising power loss, featuring a unique 'sleep mode' personalisation function and exceptional power conversion efficiency of up to 94%.
Ideal for homeowners, off-grid users, and small businesses in the UK, the Solarix PI1500-48 offers advanced protection features and the flexibility for future system expansion through parallel connectivity.
UK Application: Provides clean, stable 230V AC power from a 48V battery bank for various off-grid and backup power needs.
Key Features
| ▶ Pure Sine Wave Output — Ensures compatibility with sensitive electronics and appliances. |
| ▶ High Efficiency (up to 94%) — Maximises energy conversion and minimises system losses. |
| ▶ Intelligent 'Sleep Mode' — Adjustable load detection reduces standby power consumption to just 0.7W. |
| ▶ Parallel Connectable — Expand system power up to 4500W by linking up to three additional inverters (Steca PA Link required, sold separately). |
| ▶ Robust German Engineering — Developed, produced, and tested in Germany to high European quality standards. |
| ▶ Comprehensive Protection — Built-in safeguards against common electrical faults. |
| ▶ Automatic Cooling Fan — Operates only when needed, ensuring quiet operation and optimal temperature. |
Technical Specifications
| Parameter | Value |
|---|---|
| Continuous Power | 900 VA |
| Surge Power (30 mins) | 1500 VA |
| Surge Power (5 seconds) | 2800 VA |
| Input Voltage Range | 42V - 64V DC |
| Output Voltage | 230V AC |
| Output Frequency | 50 Hz |
| Output Waveform | Pure Sine Wave |
| Peak Efficiency | 94% |
| Self-Consumption (Standby) | 0.7W |
| Self-Consumption (In Use) | 10W |
| Operating Temperature | -20°C to +50°C |
| Enclosure Protection | IP20 |
| Dimensions (H x W x D) | 130 x 212 x 395 mm |
| Weight | 9 kg |
Operating & Power Guidance
The Steca Solarix PI1500-48 inverter features an innovative 'sleep mode' with adjustable load detection. This allows users to set a threshold for the inverter to exit standby, significantly reducing energy consumption when only low-power loads are connected. The unit also boasts excellent overload capabilities, ensuring stable power delivery for various appliances.
For increased power requirements, this inverter can be connected in parallel with up to three other Steca Solarix PI inverters using the Steca PA Link parallel switch box (sold separately). This enables system expansion up to 4500W nominal power. Please note that only new generation Steca Solarix PI inverters can be combined via the PA Link.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Powering essential appliances, lighting, and entertainment systems in remote locations. |
| Mobile & Recreational Vehicles | Providing reliable 230V AC power for caravans, motorhomes, and boats. |
| Backup Power Systems | Ensuring critical loads remain operational during grid outages. |
| Small Business & Workshops | Running tools, computers, and office equipment from a 48V battery bank. |
Built-In Protection Functions
The Steca Solarix PI1500-48 inverter incorporates a comprehensive suite of electronic protection functions to ensure safe and reliable operation. These include protection against over-discharge, battery overvoltage shutdown, short-circuiting, reverse polarity, over-temperature, and overload. The unit is also designed with protective insulation according to protection class II and is controlled by a digital signal processor (DSP) for enhanced reliability. It is CE and RoHS compliant, and manufactured under ISO 9001 and ISO 14001 standards.
Common Questions
What appliances can this 1500W inverter power?
A 1500W inverter can power many common domestic appliances, including laptops, TVs, small refrigerators, microwaves (check wattage), power tools, and lighting. Always check the power consumption of your specific appliances to ensure they do not exceed the inverter's continuous or surge ratings.
How does the 'sleep mode' function work?
The 'sleep mode' allows you to set a load threshold. If the connected load falls below this threshold, the inverter enters a low-power standby mode (0.7W self-consumption). It will automatically 'wake up' and enter full power mode when a load exceeding the set threshold is detected, saving battery power.
Can I connect multiple Steca Solarix PI1500-48 inverters together?
Yes, this inverter supports parallel connection with up to three other Steca Solarix PI inverters to increase the total output power. This requires the Steca PA Link parallel switch box, which is sold separately. It is crucial that only new generation Steca Solarix PI inverters are connected in parallel.
Is this inverter suitable for a 12V or 24V battery system?
No, the Steca Solarix PI1500-48 is specifically designed for 48V battery banks. It has an input voltage range of 42V to 64V DC. Using it with a 12V or 24V system would be incompatible and could damage the inverter or your battery system.
Installation Notes
- Connect the inverter directly to your 48V battery or battery bank using the supplied positive and negative cables.
- Ensure proper ventilation around the inverter to prevent overheating.
- Do not connect the inverter to 'load' terminals of a solar charge controller if the power demand is too high; connect directly to the battery.
- Refer to the included user manual for detailed wiring diagrams and operational instructions.
- Installation should ideally be performed by a qualified professional to ensure safety and compliance with local regulations.
Before You Buy
- Verify your battery bank voltage is 48V DC. This inverter is not compatible with 12V or 24V systems.
- Confirm the continuous and surge power requirements of your appliances do not exceed the inverter's ratings.
- Consider future power needs; parallel connection requires the Steca PA Link (sold separately).
- Ensure you have adequate space for installation, considering the inverter's dimensions and ventilation requirements.
- For any technical questions or installation guidance, please contact Solarika for support.
Always verify product specifications and compatibility with your existing system before purchase. This product is covered by a 5-year manufacturer warranty.
