Stäubli MC4-Evo Ready Solar PV Connectors
Tool-Free & Crimp-Free | 4–6 mm² Cable | 1500 V DC

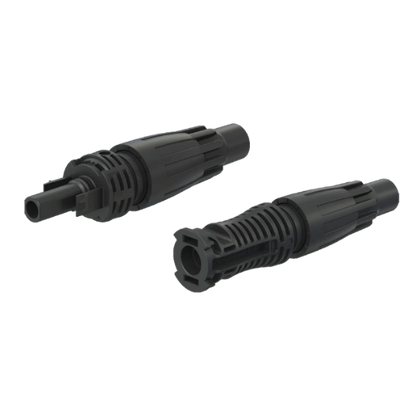

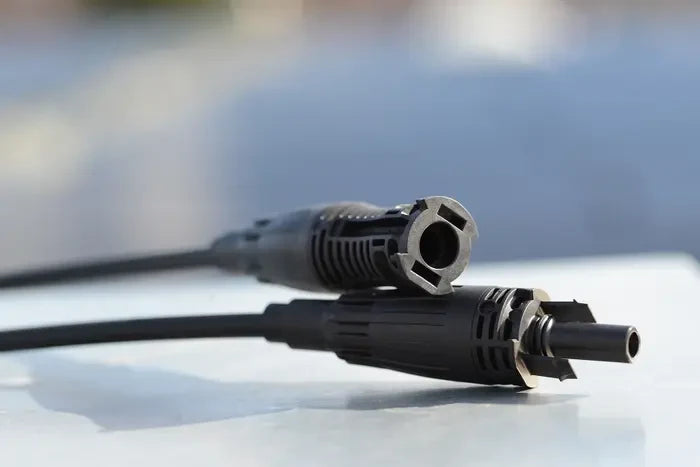

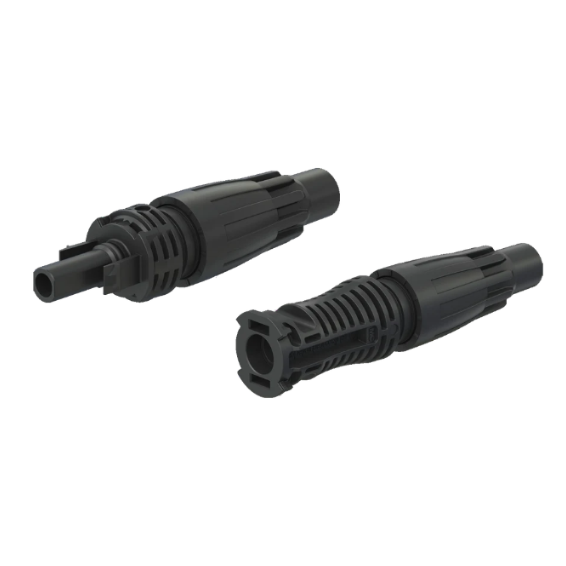

The Stäubli MC4-Evo Ready Connectors offer a revolutionary tool-free and crimp-free solution for connecting solar PV cables. Supplied as a pair (one positive female and one negative male), these genuine Stäubli connectors simplify photovoltaic installations by eliminating the need for specialised crimping tools.
Designed for 4 mm² and 6 mm² solar cables, the MC4-Evo Ready ensures a reliable and secure electrical contact through an automatically closing spring clamp mechanism. This innovative design significantly reduces installation time and potential errors, making it an ideal choice for both residential and commercial solar projects in the UK.
INSTALLATION NOTE: Tool-free connection for rapid, secure solar cable termination without special crimping tools.
Key Features
| ▶ Tool-Free Connection — Simplifies installation without the need for specialised crimping tools. |
| ▶ Crimp-Free Design — Ensures reliable electrical contact via an automatically closing spring clamp. |
| ▶ Wide Cable Compatibility — Suitable for 4 mm² and 6 mm² PV cables with an outer diameter of 5.4–7.6 mm. |
| ▶ High Voltage & Current Rating — Rated for 1500 V DC and 30 A, ideal for modern PV systems. |
| ▶ Pre-Assembled Pair — Supplied complete as 1 x positive female and 1 x negative male connector. |
| ▶ MC4 Compatibility — Fully mateable with the Stäubli Original MC4 product portfolio. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | PV Connector Pair |
| Manufacturer | Stäubli |

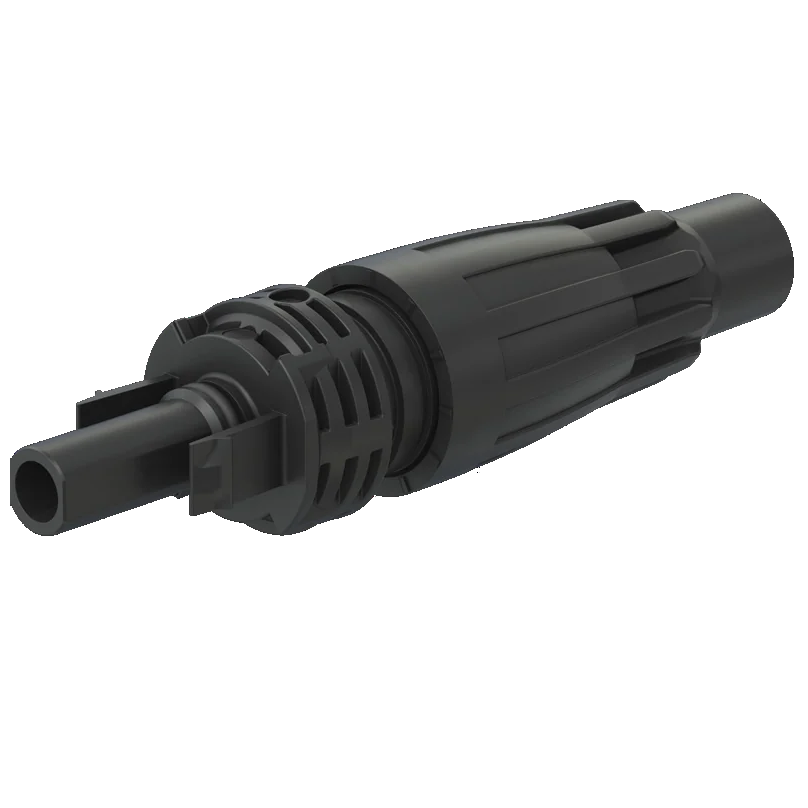

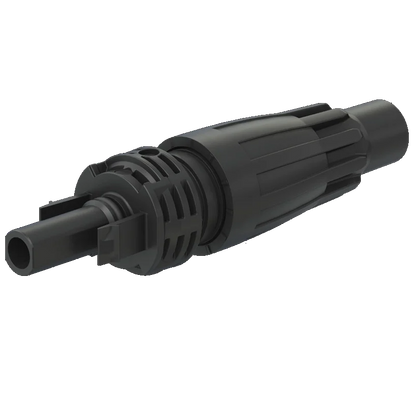

| Female Connector Model (Stäubli P/N) | PV-KBT4-EVO READY (32.0030) |

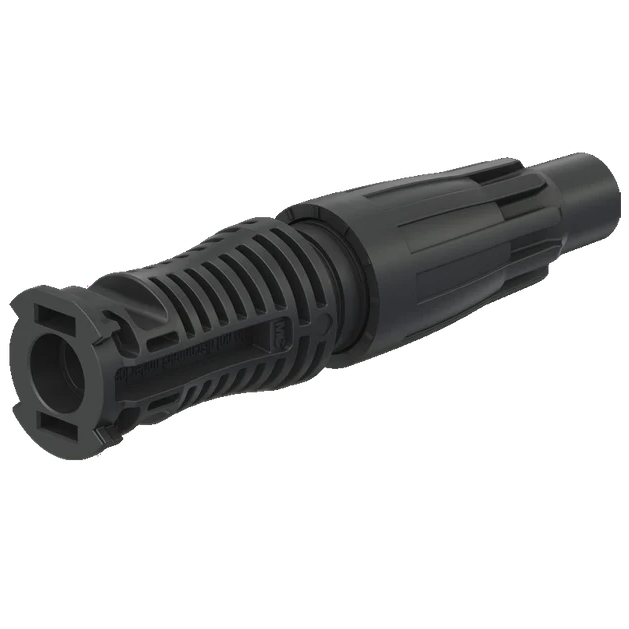

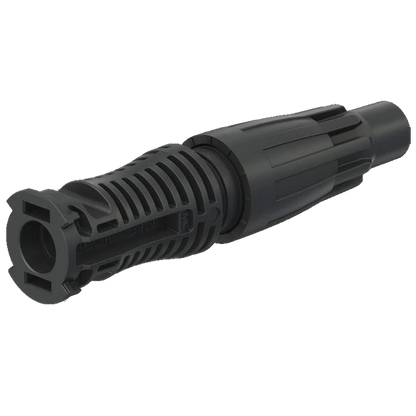

| Male Connector Model (Stäubli P/N) | PV-KST4-EVO READY (32.0029) |
| Connection Method | Spring Clamp (Tool-Free, Crimp-Free) |
| Cable Cross Section | 4 mm² – 6 mm² |
| Cable Outer Diameter | 5.4 mm – 7.6 mm |
| Rated Voltage | 1500 V DC |
| Rated Current | 30 A |
| Ambient Temperature Range | -40 °C to +85 °C (IEC) |
| Upper Limiting Temperature | 115 °C (IEC) |
| Degree of Protection (Mated) | IP65 / IP68 (1 m, 1 h) |
| Safety Class | II (IEC) |
| Fire Protection Class | UL94-V0 |
| Certification | TÜV Rheinland (IEC 62852:2014+Amd.1:2020) |
| Contact Material | Copper, Tin-Plated |
| Insulation Material | PA (Polyamide) |
Connection & Compatibility Notes
| Aspect | Guidance |
|---|---|
| Cable Preparation | Only use tinned copper conductors. Strip cable insulation by 15-16.5 mm. Ensure no damaged or oxidised conductors are used. |
| Cable Type | Cables must be suitable for PV systems, comply with IEC 62930, and have flexible conductors (Class 5 or 6 per IEC 60228). |
| Interoperability | Fully mateable with the Stäubli Original MC4 product family, as confirmed by TÜV Rheinland. |
| System Voltage | Designed for PV systems up to 1500 V DC. |
Typical Applications
| Application | Description |
|---|---|
| Residential Solar PV Systems | For reliable and quick connections in rooftop solar installations. |
| Commercial Solar Installations | Streamlining large-scale PV projects with efficient, error-free connections. |
| Off-Grid Solar Setups | Ensuring robust connections for standalone power systems. |
| PV String & Homerun Connections | Connecting solar panels in series or parallel, and linking strings to inverters. |
Built-In Protection Functions
The Stäubli MC4-Evo Ready connectors are designed for safe and reliable operation in demanding outdoor environments. They feature an IP65/IP68 rating when mated, providing excellent protection against dust and water ingress. • The connectors are UV-resistant, weatherproof, and resistant to high temperatures, ensuring long-term durability. • Certified by TÜV Rheinland according to IEC 62852:2014+Amd.1:2020, they meet stringent safety and quality standards for PV DC connectors. • With a UL94-V0 fire protection class, these connectors offer enhanced safety against fire hazards.
Common Questions
What makes these connectors "tool-free" and "crimp-free"?
The MC4-Evo Ready connectors utilise an automatic spring clamp mechanism. You simply insert the stripped PV cable, and the clamp secures the conductor, eliminating the need for a separate crimping tool or process.
Are these compatible with my existing MC4 connectors?
Yes, the Stäubli MC4-Evo Ready connectors are fully mateable with the entire Stäubli Original MC4 product portfolio. This compatibility has been verified by TÜV Rheinland interoperability testing.
What cable sizes can I use with these connectors?
These connectors are designed for 4 mm² and 6 mm² single-core photovoltaic cables. The outer diameter of the cable should be between 5.4 mm and 7.6 mm for proper fitment and sealing.
What are the maximum voltage and current ratings?
The Stäubli MC4-Evo Ready connectors are rated for a maximum system voltage of 1500 V DC and a maximum current of 30 A.
Installation Notes
- Installation and commissioning should only be carried out by a qualified electrician or electrically instructed person.
- Ensure the system is de-energised before performing any installation or maintenance work.
- Use only tinned copper conductors; bare, oxidised, or PVC-insulated cables are not permitted by Stäubli for safety reasons.
- Strip the cable insulation to the recommended length (typically 15-16.5 mm) as per manufacturer instructions.
- Ensure the connector is correctly screwed together to guarantee the specified IP protection class when mated.
- Protect unmated connectors from contamination using Stäubli sealing caps.
Before You Buy
- Verify your solar cable's cross-section (4 mm² or 6 mm²) and outer diameter (5.4–7.6 mm) for compatibility.
- Confirm the voltage and current requirements of your PV system to ensure these connectors are suitable.
- Ensure compatibility with any existing MC4 components in your installation.
- Consult the official Stäubli datasheet and assembly instructions for detailed guidance.
Always verify product specifications and compatibility with your system components before purchase and installation. All technical data is based on manufacturer specifications.
