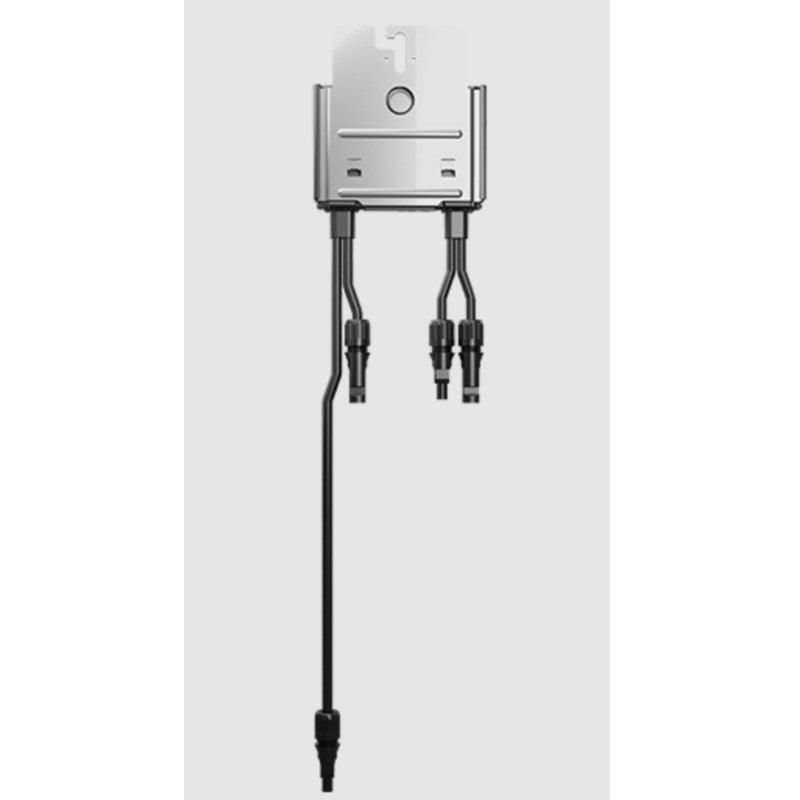

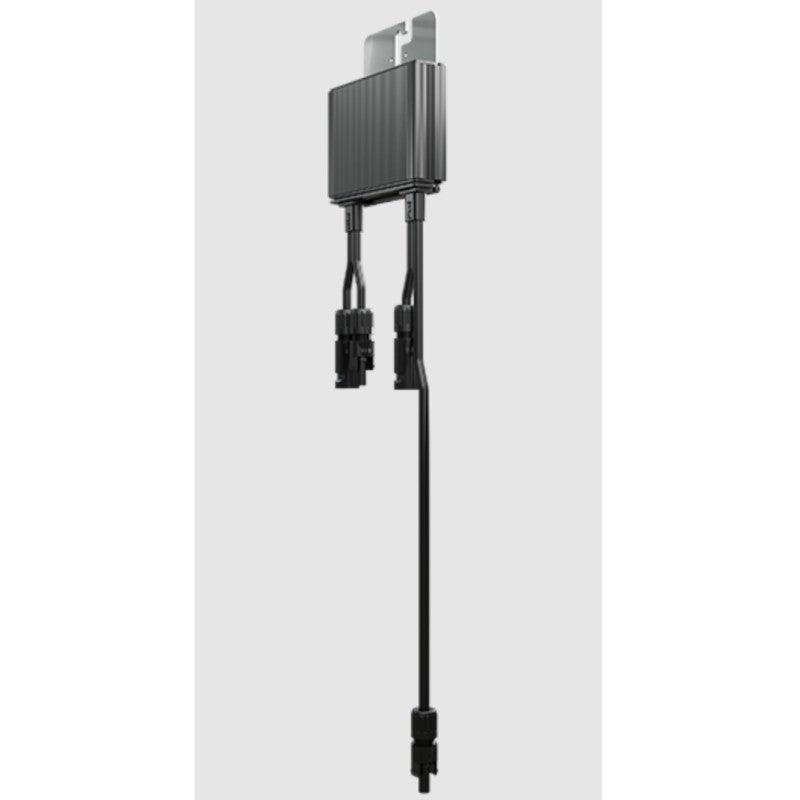

SolarEdge S500B power optimiser

SolarEdge S500B power optimiser

SKU:S500b-MC4

Regular price Β£98.99 GBP
Regular price Sale price Β£98.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

The S500B Power Optimiser FROM Solar Edge is suitable for use with high power modules with an output of up to 500W.

Optimisers allow for uneven strings, longer strings, mix of panel types and orientations on the same string as well as reducing the impact of partial shading on the array.

The Solar Edge S-series beneficial features include:

  • Exceptional Efficiency:Β Improve Module generation by mitigating against mismatch with an inbuilt MPPT and possess an efficiency of 99.5%.
  • Advanced safety built-in:Β
    • Electric Arc ProtectionΒ -Β An unattended electric arc could develop into a fire. SolarEdge Sense Connect has the capability to identify abnormal thermal events in the connector, preventing electric arcs from forming.
    • Safe to the TouchΒ DC VoltageΒ - Solar Edge'sΒ SafeDC technology reduces PV system DC voltage within 5 minutes to touch safe levels. By using the Rapid Shutdown feature conductors can be discharged to safe to touch levels within 30 seconds.
    • Real-time Module-level MonitoringΒ - SolarEdge provides a monitoring and alerts system, giving installers automatic and pinpointed notifications on issues to help prevent potential safety risks, while enablingΒ superior asset protection and rapid, remote troubleshooting.
  • Warranty:Β This product is protected by aΒ 25-yearΒ Power optimiser warranty thanks to SolarEdge's robust and reliable technology.

Ideal for Residential usage.

SolarEdge also have a helpfulΒ system design toolΒ and a site designerΒ tutorial. A full list of Solar Edge benefitsΒ benefits of using solaredgeΒ here.

DC attributes
Rated powerΒ 500W
V range of MPPTΒ 12.5-105V
Max Isc currentΒ 15A
Max Voc voltageΒ 125V

System
Max efficiencyΒ 99.5%
IP ratingΒ IP68
WeightΒ 655g
Dimensions 129mm Γ— 155mm Γ— 45mm
Number of MPPTΒ 6-25
Key features
  • High maximum efficiency 99.5%.
  • IP68 protection grade.
  • Compatible with Bifacial PV modules.
  • Faster installations with easy assembly using a single bolt.
  • Specifically designed to work with SolarEdge residential inverters.
  • View full details
