SolarEdge Energy Meter

SKU:SE-WND-3Y400-MB-K2

£309.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Name Solaredge 1/3ph Energy Meter with Modbus conn. DIN - Rail SolarEdge 50A split-core current transformer (D) SolarEdge 100A split-core current transformer for 50Hz SolarEdge 250A split-core current transformer 50Hz SolarEdge 1000A split-core current transformer SolarEdge Bus-Bar CT, 4.0" x 4.0", 1200A, 1.5% acc.

Quantity

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

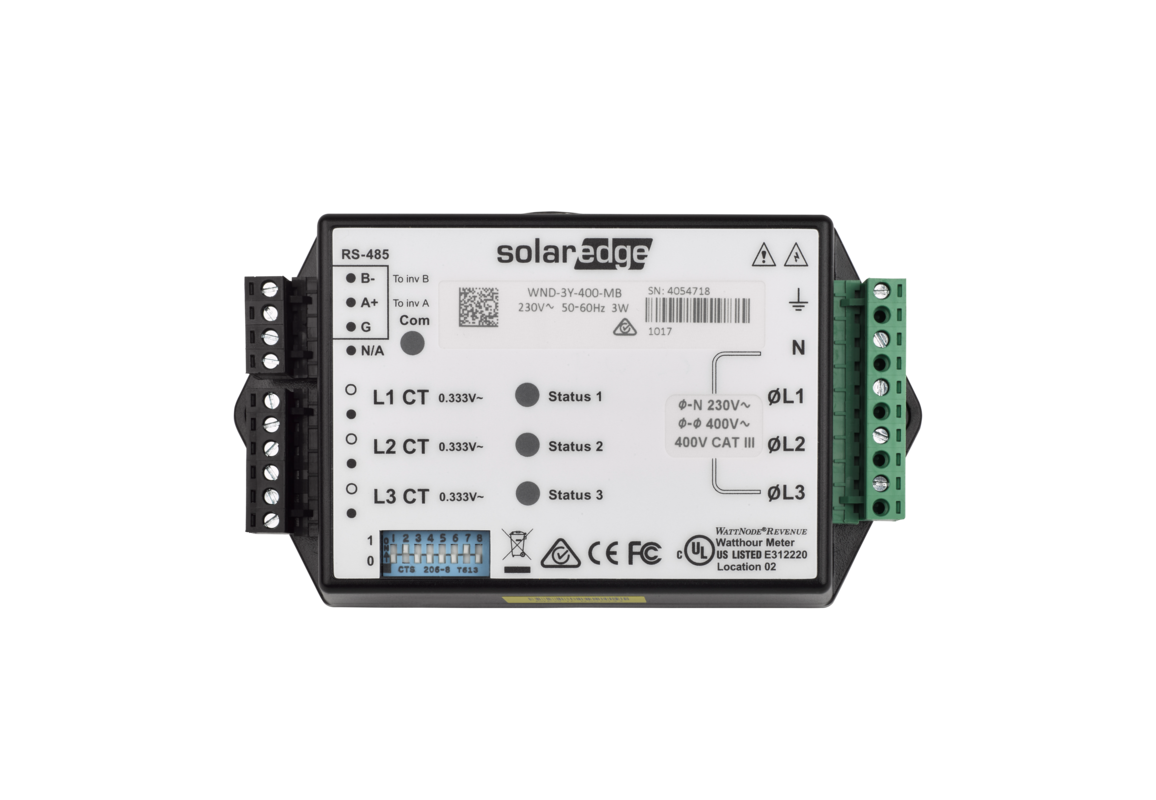

The SolarEdge Energy Meter with Modbus Connection measures production, consumption and feed-in to enable export control or limiting (supports G-100 in UK).

A wide range of CTs (current transformers) are available to support residential and commercial installations. Connection to the inverter or Control and Communication Gateway is achieved via RS485.

Highlights:

High accuracy meter readings (up to 0.5%) for production/consumption readings
Supplies meter readings to the inverter for Feed-in Limitation
Suitable for residential, commercial and utility-size installations
Small and easy to install

Safety Note: CTs must never be operated open-circuit (secondary coil wires disconnected) once installed, whilst on a current-carrying conductor, as dangerously high voltages may occur under these circumstances.
