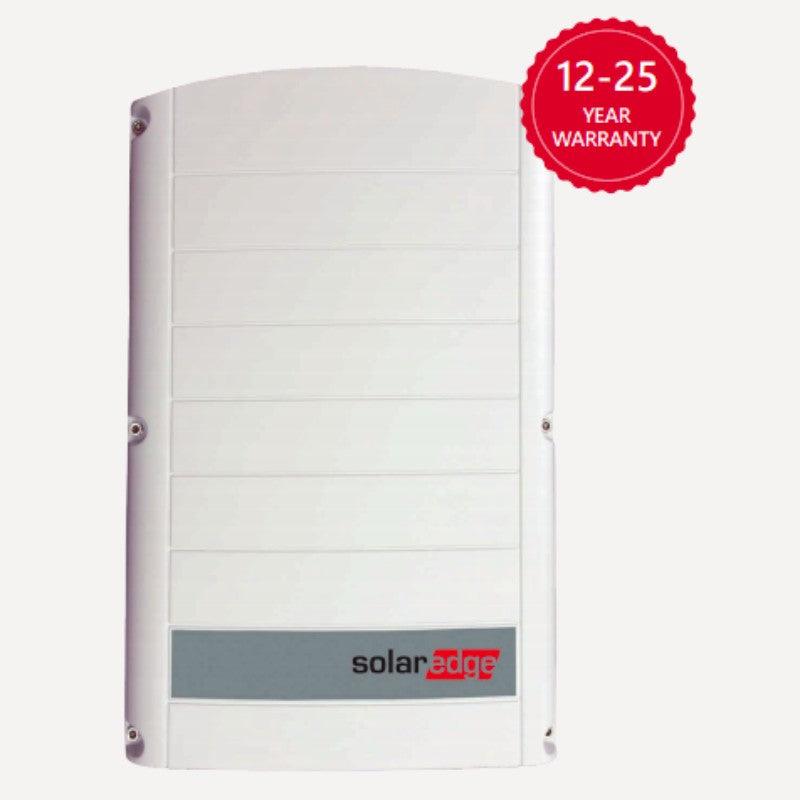

SolarEdge 9000W Three Phase Inverter

SolarEdge 9000W Three Phase Inverter

SE9K-RW0TEBNN4

£2,099.00 GBP
£2,099.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

  • The SolarEdge 9000 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

    A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

    AC attributes
    Max power: 9000W
    Max current (per phase): 14.5A
    Number of phases: 3
    DC attributes
    Number of MPPT Not applicable
    V range of MPPT Not applicable
    Max power 12150W
    Max current 15A
    Max voltage 900V
    Start up voltage Not applicable
    System
    Efficiency 98%
    IP rating IP65
    Built in protection Arc fault/Safe DC
    Export limitations Possible using meter
    Weight 16.4kg
    Dimensions 280x370x142mm
    Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)
    Warranty (extensions) 12 years (20 or 25 years extensions available)
    Key features
    Low noise - no external fan
    Lightweight
    Oversizing up to 135% possible
    Indoor or outdoor instillation
    Built-in module level monitoring
    Superior efficiency

    You will need a suitable power optimiser for this inverter.

    SolarEdge have a system design tool, available for download here. See also the site designer manual and the full list of benefits of using solaredge.  Checking the status of a SolarEdge products warranty can be done here.

    Part number: SE9K-RW0TEBNN4
