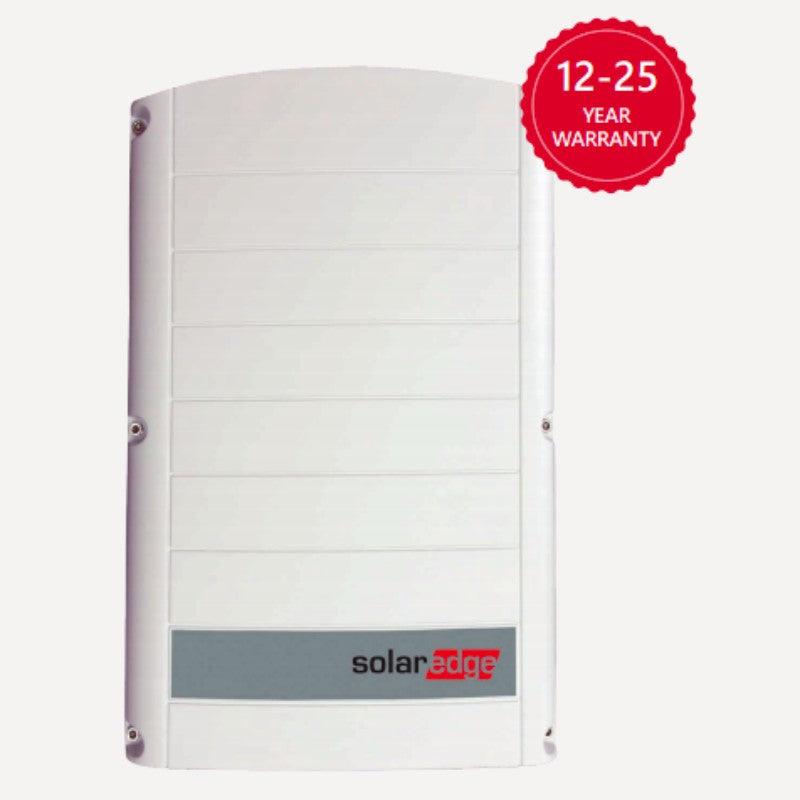

SolarEdge 8000W Three Phase Inverter

SolarEdge 8000W Three Phase Inverter

SE-8000W-TPI

£1,999.00 GBP
£1,999.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

  • The SolarEdge 8000 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

    A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

      AC attributes
      Max power: 8000W
      Max current (per phase): 13A
      Number of phases: 3
      DC attributes
      Number of MPPT Not applicable
      V range of MPPT Not applicable
      Max power 10800W
      Max current 13.5A
      Max voltage 900V
      Start up voltage Not applicable
      System
      Efficiency 98%
      IP rating IP65
      Built in protection Arc fault/Safe DC
      Export limitations Possible using meter
      Weight 16.4kg
      Dimensions 280x370x142mm
      Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)
      Warranty (extensions) 12 years (20 or 25 years extensions available)
      Key features
      Low noise - no external fan
      Lightweight
      Oversizing up to 135% possible
      Indoor or outdoor instillation
      Built-in module level monitoring
      Superior efficiency

      You will need a suitable power optimiser for this inverter.

      SolarEdge have a system design tool, available for download here. See also the site designer manual and the full list of benefits of using solaredge.  Checking the status of a SolarEdge products warranty can be done here.

    • photon summary
    • photon report
    • presentation
    • g98
    • warranty
    • datasheet
    • manual
    • quick installation guide
