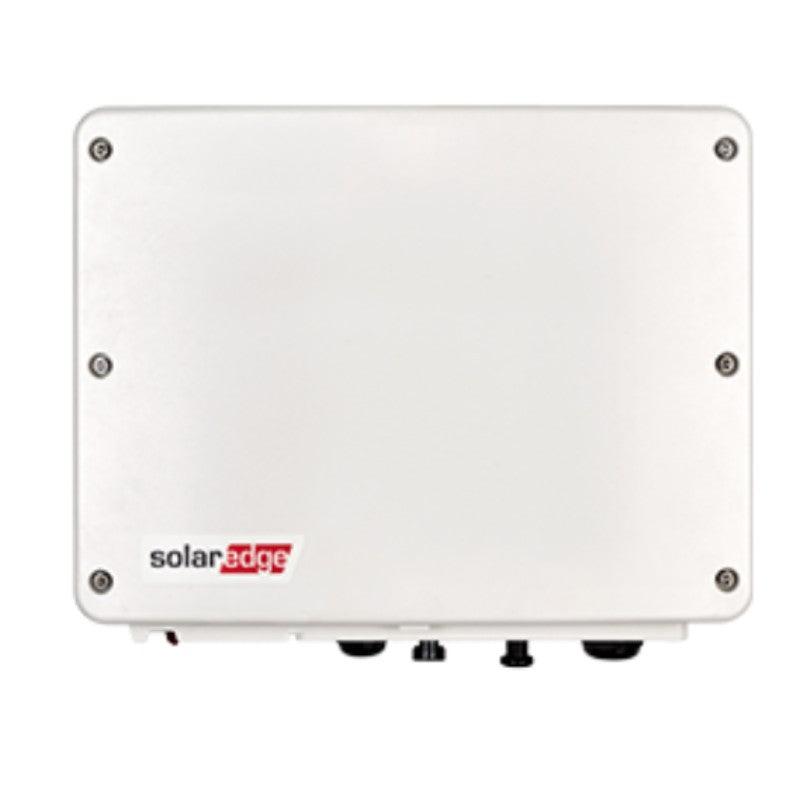

SolarEdge 6000W 1ph Home-Wave Inverter (Net Inverter)

Name: SolarEdge 6000W 1ph Home-Wave Inverter (Net Inverter)
Brand: SolarEdge M
SKU: SE-6000W-NET
Price: 1599.00 GBP
Availability: InStock

SKU:SE-6000W-NET

£1,599.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

The Net Home-Wave Inverter Contains an extra 'plug-in slot' for both the E-NET card and either ZigBee or GSM.

The SolarEdge Home-Wave Inverter uses HD-Wave technology to provide an optimised installation. This is the 6000W version and maintains all of the key characteristics of the previous screenless SetAPP inverter whilst containing an extra 'plug-in slot' for both the E-NET card and ZigBee/GSM card.
Marked as a milestone in inverter technology, the award winning HD-Wave technology is a record-breaker in efficiency tests.

Small, light, efficient and superbly reliable – SolarEdge’s single phase inverters with innovative HD-Wave technology are now a firm favourite for installers and end-customers alike.

SolarEdge inverters will only work with power optimisers, which control module-level Maximum Power Point Tracking and voltage management. This means that the inverter is only responsible for DC to AC inversion – this is the secret of the HD-Wave technology. It uses smaller, lighter and more reliable thin film capacitors, allowing SolarEdge to rid most of the heavy metal parts from the inverter.
Commissioning requires using SolarEdges' SetApp on your mobile device.

AC attributes

Max power: 6000W

Max current: 27.5A

Number of phases: 1

DC attributes

Number of MPPT Not applicable

V range of MPPT Not applicable

Max power 9300W

Max current 16.5A

Max voltage 480V

Start up voltage Not applicable

System

Efficiency 99.2%

IP rating IP65

Built in protection Arc fault/Safe DC

Export limitations Possible using meter

Weight 10.6kg

Dimensions 280x370x142mm

Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)

Warranty (extensions) 12 years (20 or 25 years extensions available)

Key features

Superior efficiency

Lightweight

Oversizing up to 155% possible

Indoor or outdoor installation

SolarEdge have a system design tool, available here. Checking the status of a SolarEdge products warranty can be done here.
- Datasheet
