SolarEdge M

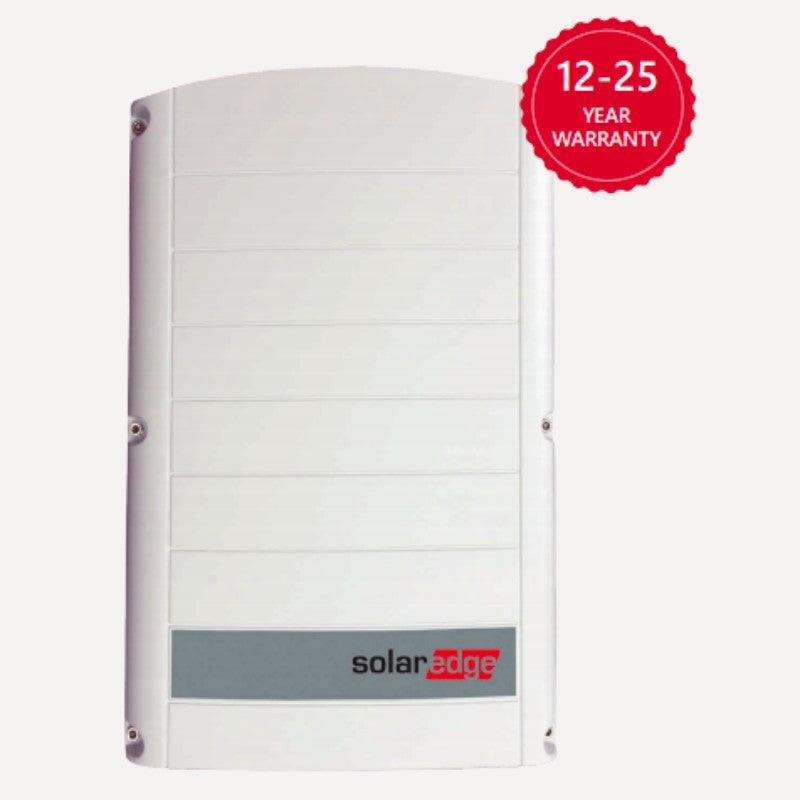

SolarEdge 4000W Three Phase Inverter

SolarEdge 4000W Three Phase Inverter

Regular price £1,499.00 GBP
Regular price Sale price £1,499.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The SolarEdge 4000 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

You will need a suitable power optimiser for this inverter.

SolarEdge have a system design tool, available here and you can also read the full list of benefits of using solaredge.
AC attributes
Max power: 4000W
Max current (per phase): 6.5A
Number of phases: 3
DC attributes
Number of MPPT Not applicable
V range of MPPT Not applicable
Max power 5400W
Max current 7A
Max voltage 900V
Start up voltage Not applicable
System
Efficiency 98%
IP rating IP65
Built in protection Arc fault/Safe DC
Export limitations Possible using meter
Weight 16.4kg
Dimensions 280x370x142mm
Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)
Warranty (extensions) 12 years (20 or 25 years extensions available)
Key features
Low noise - no external fan
Lightweight
Oversizing up to 135% possible
Indoor or outdoor instillation
Built-in module level monitoring
Superior efficiency

The advantages of using a SolarEdge system were analysed by third party testing organisation Photon and who generated the following report and summary. Checking the status of a SolarEdge products warranty can be done here.
