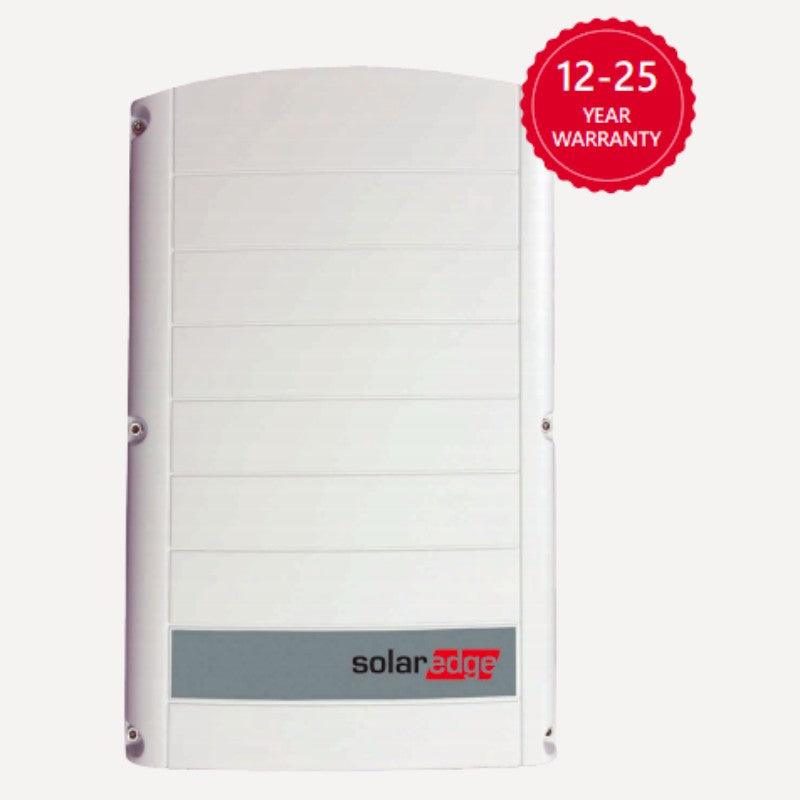

SolarEdge 33,300W Three Phase Inverter -With DC Safety Unit, Including DC Safety Switch and Surge protection (type II), Fuses and Automatic Rapid Shutdown upon AC grid disconnect
The SolarEdge three phase inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.
The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge monitoring platform for performance analysis, fault detection and troubleshooting of PV systems.
Options (select appropriate choice from drop down menu):
R4: SE33K-RW00IBNR4 - With DC Safety Unit, Including DC Safety Switch and Surge Protection (type II)
Z4: SE33K-RWR0IBNZ4 - With DC Safety Unit, Including DC Safety Switch and Surge protection (type II), Fuses and Automatic Rapid Shutdown upon AC grid disconnect
AC attributes
Max power: 33300W
Max current (per phase): 48.25A
Number of phases: 3
DC attributes
Number of MPPT Not applicable
V range of MPPT Not applicable
Max power 49950W
Max current 48.25A
Max voltage 1000V
Start up voltage Not applicable
System
Efficiency 98.3%
IP rating IP65
Built in protection Arc fault, DC surge type II
Export limitations Possible using meter
Weight 32kg
Dimensions 836x317x300mm
Communication Ethernet, RS485, (Wifi, cellular optional)
Warranty (extensions) 12 years (20 or 25 years extensions available)
