• SolarEdge 12,500W Three Phase Inverter - Solarika.co.uk
1 1

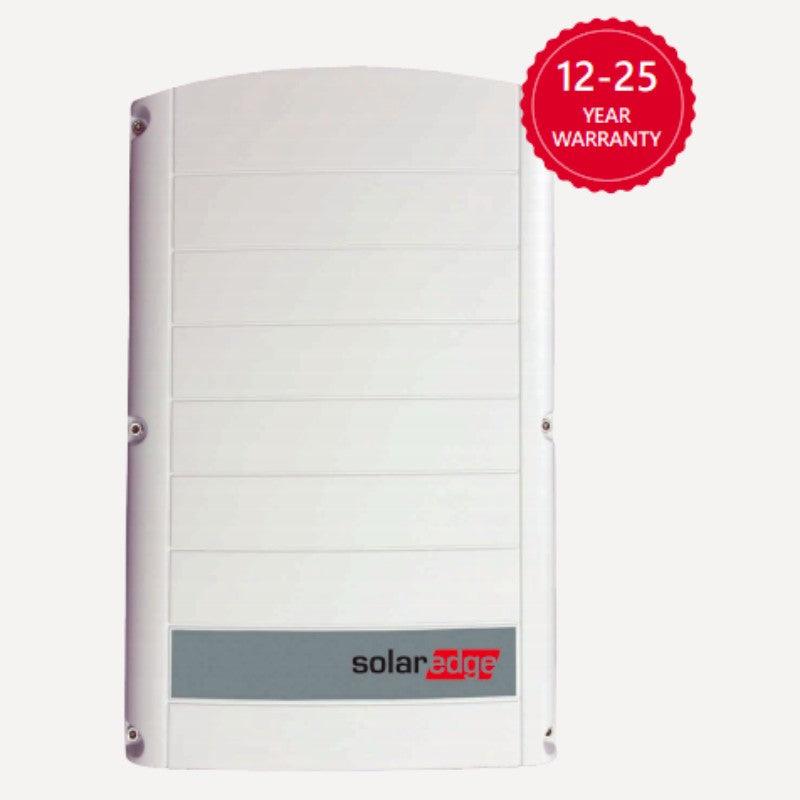

SolarEdge 12,500W Three Phase Inverter

SolarEdge 12,500W Three Phase Inverter

se-12.5w-tpi

£2,299.00 GBP
£2,299.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.


  • The SolarEdge 12,500 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

    A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

    AC attributes
    Max power: 12500W
    Max current (per phase): 20A
    Number of phases: 3
    DC attributes
    Number of MPPT Not applicable
    V range of MPPT Not applicable
    Max power 16850W
    Max current 21A
    Max voltage 1000V
    Start up voltage Not applicable
    System
    Efficiency 98.3%
    IP rating IP65
    Built in protection Arc fault/Safe DC
    Export limitations Possible using meter
    Weight 33.2 kg
    Dimensions 280x370x142mm
    Communication Ethernet, RS485, (Wifi, Zigbee, cellular all optional)
    Warranty (extensions) 12 years (20 or 25 years extensions available)
    Key features
    Lightweight
    Advanced safety - arc fault protection built in
    Indoor or outdoor instillation
    Built-in module level monitoring
    Superior efficiency

  • SolarEdge have a system design tool, available for download here. See also the site designer manual and the full list of benefits of using solaredge.  Checking the status of a SolarEdge products warranty can be done here.
