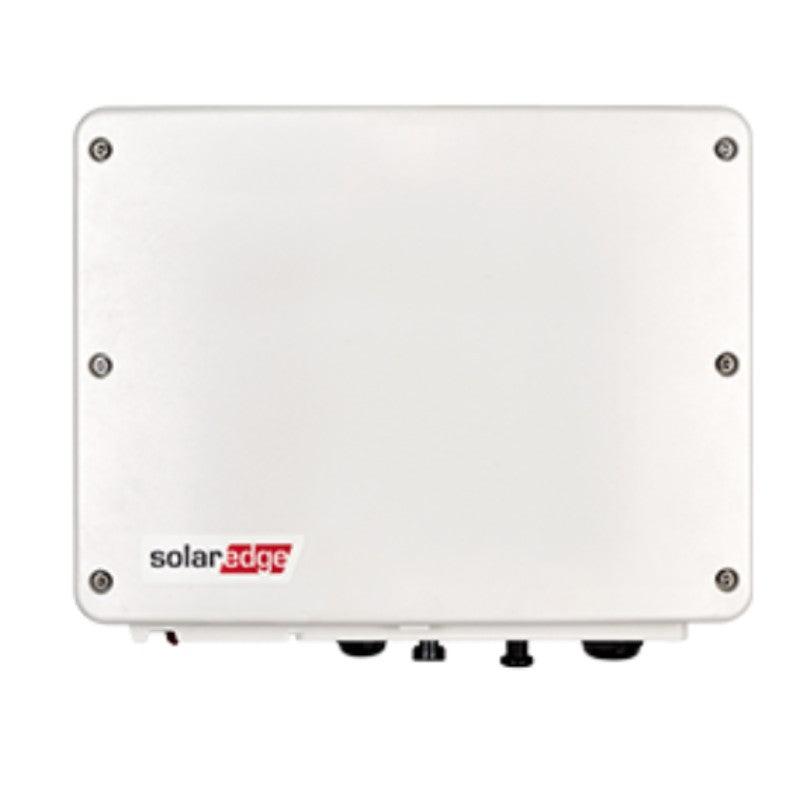

The Net Home-Wave Inverter Contains an extra 'plug-in slot' for both the E-NET card and either ZigBee or GSM.
The SolarEdge Home-Wave Inverter uses HD-Wave technology to provide an optimised installation. This is the 10,000W version and maintains all of the key characteristics of the previous screenless SetAPP inverter whilst containing an extra 'plug-in slot' for both the E-NET card and ZigBee/GSM card.
Marked as a milestone in inverter technology, the award winning HD-Wave technology is a record-breaker in efficiency tests.
Small, light, efficient and superbly reliable – SolarEdge’s single phase inverters with innovative HD-Wave technology are now a firm favourite for installers and end-customers alike.
SolarEdge inverters will only work with power optimisers, which control module-level Maximum Power Point Tracking and voltage management. This means that the inverter is only responsible for DC to AC inversion – this is the secret of the HD-Wave technology. It uses smaller, lighter and more reliable thin film capacitors, allowing SolarEdge to rid most of the heavy metal parts from the inverter.
Commissioning requires using SolarEdges' SetApp on your mobile device.
AC attributes
Max power: 10,000W
Max current: 45.5A
Number of phases: 1
DC attributes
Number of MPPT Not applicable
V range of MPPT Not applicable
Max power 15500W
Max current 25.5A
Max voltage 480V
Start up voltage Not applicable
System
Efficiency 99.2%
IP rating IP65
Built in protection Arc fault/Safe DC
Export limitations Possible using meter
Weight 16.5kg
Dimensions 360x370x185mm
Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)%ME_PASTEBIN%
Warranty (extensions) 12 years (20 or 25 years extensions available)
Key features
Superior efficiency
Lightweight
Oversizing up to 155% possible
Indoor or outdoor installation
SolarEdge have a system design tool, available here .
