Solar Technology 80W Flexi Solar Panel Kit
Solar Technology 80W Flexi Solar Panel Kit
SKU:751-STPVF080
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Solar Technology 80W Flexi Solar Panel Kit
High-Performance Semi-Flexible ย |ย ETFE Coated ย |ย 12V Off-Grid Power
The Solar Technology 80W Flexi Solar Panel Kit, featuring the robust PV Logic Flexi panel, provides a reliable and lightweight power solution for various off-grid applications. This semi-flexible solar panel is engineered with an advanced ETFE top layer, offering exceptional durability and a unique self-healing capacity against minor abrasions.
Designed for the demanding conditions of marine environments, campervans, motorhomes, and caravans, this kit includes a 10A dual battery charge controller to efficiently manage your 12V system. Its slim profile and ability to conform to slightly curved surfaces make it an ideal choice for discreet and effective solar power generation.

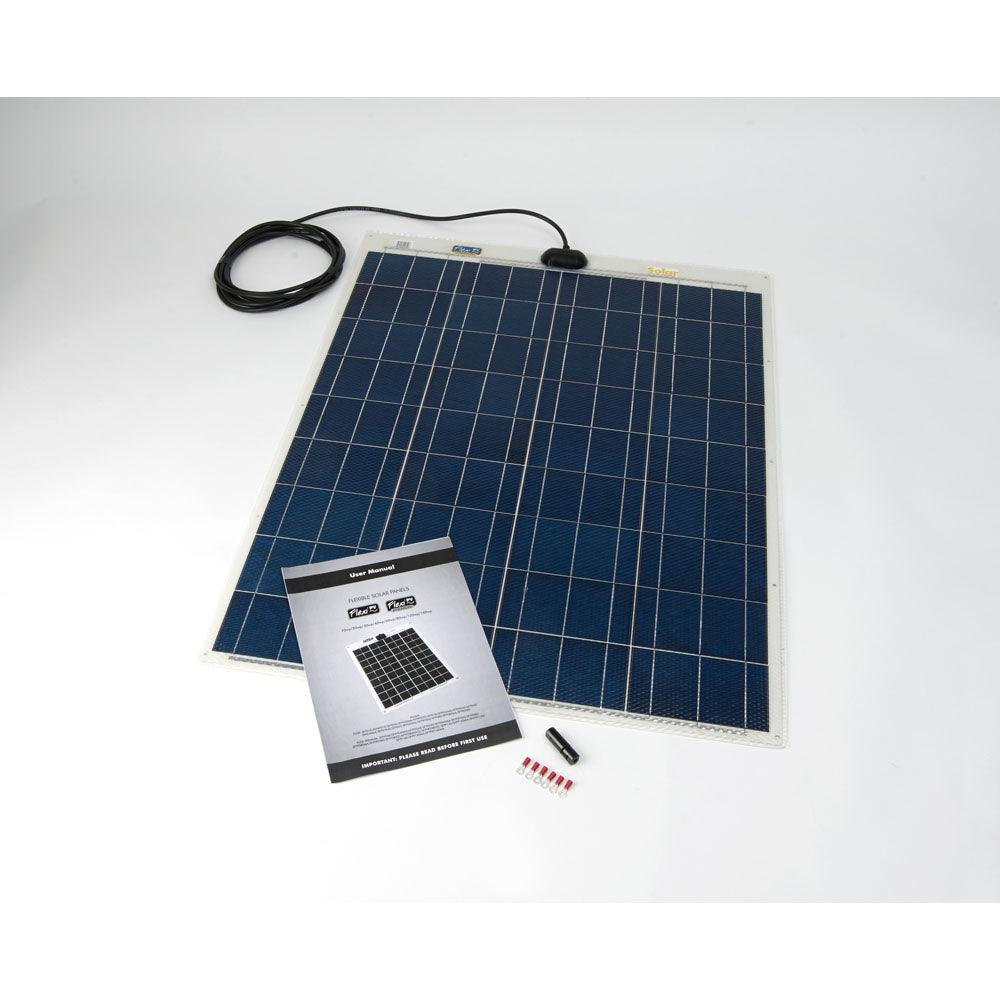

KIT INCLUDES: 80W PV Logic Flexi Solar Panel & 10A Dual Battery Charge Controller.
Key Features
| โถย ETFE Self-Healing Surface โ Provides enhanced durability and resilience against minor abrasions, extending panel lifespan. |
| โถย Completely Waterproof Design โ Features a six-layer heavy-duty laminate and silicon-injected junction box for extreme weather protection. |
| โถย Hot Spot Protection โ Integrated shading diodes within the junction box prevent heat build-up from partial shading. |
| โถย Optimised Adhesion & Safety โ Rounded corners, a curved junction box, and strain relief for the 4m UV-stabilised cable ensure secure and safe installation. |
| โถย Flexible Mounting Options โ Can be bonded to flat or slightly curved surfaces (up to 3cm per metre) and includes pre-drilled 4.5mm holes for mechanical fixing. |
Technical Specifications
| Parameter | Value |
|---|---|
| Power (Pmax) | 80W |
| Dimensions (L x W x D) | 806 x 665 x 4mm |
| Weight | 3.75Kg |
| Amp Hours per Day (approx.) | 27.3Ah |
| Nominal Voltage (Vmp) | 17.6V DC |
| Nominal Current (Imp) | 4.55A |
| Open Circuit Voltage (Voc) | 21.9V |
| Short Circuit Current (Isc) | 4.91A |
Charge Controller & System Notes
This kit includes a 10A Dual Battery Charge Controller (STCC10), designed for off-grid solar systems. It features automatic 12V/24V system voltage recognition and can efficiently charge two batteries simultaneously. The controller employs efficient Series PWM charging to optimise battery life and system performance.
| Controller Feature | Detail |
|---|---|
| Nominal System Voltage | 12/24VDC Auto Recognition |
| Rated Battery Current | 10A |
| Dual Battery Charging | Yes |
| Charging Type | Series PWM |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides auxiliary power for leisure batteries, lighting, and small appliances on the go. |
| Marine Vessels | Ideal for boat decks and marine buoys due to its waterproof, anti-slip, and salt-water spray tested design. |
| Off-Grid Systems | Suitable for remote power needs where a lightweight, durable, and low-profile solar solution is required. |
Built-In Protection Functions
The PV Logic Flexi 80W panel is designed with multiple layers of protection for long-term reliability. This includes a robust six-layer heavy-duty laminate for extreme conditions ย โขย a silicon-injected junction box to prevent water ingress ย โขย and integrated shading diodes to mitigate hot spot formation under partial shading conditions. The panel has undergone rigorous testing, including ASTM B117-ISO 9227 for salt water spray (over 1000 hours) and accelerated Ultraviolet (UV) testing to ISO 4892, ensuring performance in harsh environments.
Common Questions
What makes ETFE better than other panel coatings?
ETFE (Ethylene Tetrafluoroethylene) offers superior durability, higher light transmittance, and self-cleaning properties compared to traditional PET coatings. It is highly resistant to UV degradation, moisture, and extreme temperatures, ensuring a longer lifespan and consistent performance.
Can this panel be walked on?
Yes, the PV Logic Flexi range, with its dimpled ETFE top layer, is designed to be walked on with soft deck shoes, making it particularly suitable for boat decks.
What type of battery can the included charge controller charge?
The included STCC10 10A Dual Battery Charge Controller is suitable for charging 12V lead-acid batteries (including sealed, gel, and flooded types) and can manage two batteries simultaneously. It supports 12V/24V systems with automatic recognition.
Is the panel truly flexible?
The PV Logic Flexi panels are semi-flexible, designed to fit flush to surfaces with a slight curve, typically no greater than 3cm per metre of panel length. Excessive bending beyond this limit can cause damage and should be avoided during handling and installation.
Installation Notes
- The panel can be bonded to flat or slightly curved surfaces (up to 3cm curve per metre) such as painted aluminium, metal, GRP, and fibreglass.
- Pre-drilled 4.5mm holes are provided for mechanical fixing if required, either as an alternative or in addition to bonding.
- Ensure a specific glue pattern is followed during bonding to allow for adequate airflow underneath the panel, preventing heat build-up and potential warping.
- Always refer to the manufacturer's detailed instructions for safe and correct installation procedures.
Before You Buy
- Verify the 80W power output is sufficient for your specific energy requirements.
- Confirm the physical dimensions (806 x 665 x 4mm) are suitable for your intended mounting location.
- Ensure your battery system is compatible with a 12V/24V PWM charge controller.
- Consider professional installation for optimal performance and safety, especially for marine or vehicle applications.
Product specifications are subject to change by the manufacturer. Always consult the latest product documentation for critical details before purchase and installation.
