90W Fold Up Solar Panel Kit
Portable & Compact Design | Integrated 10A Charge Controller

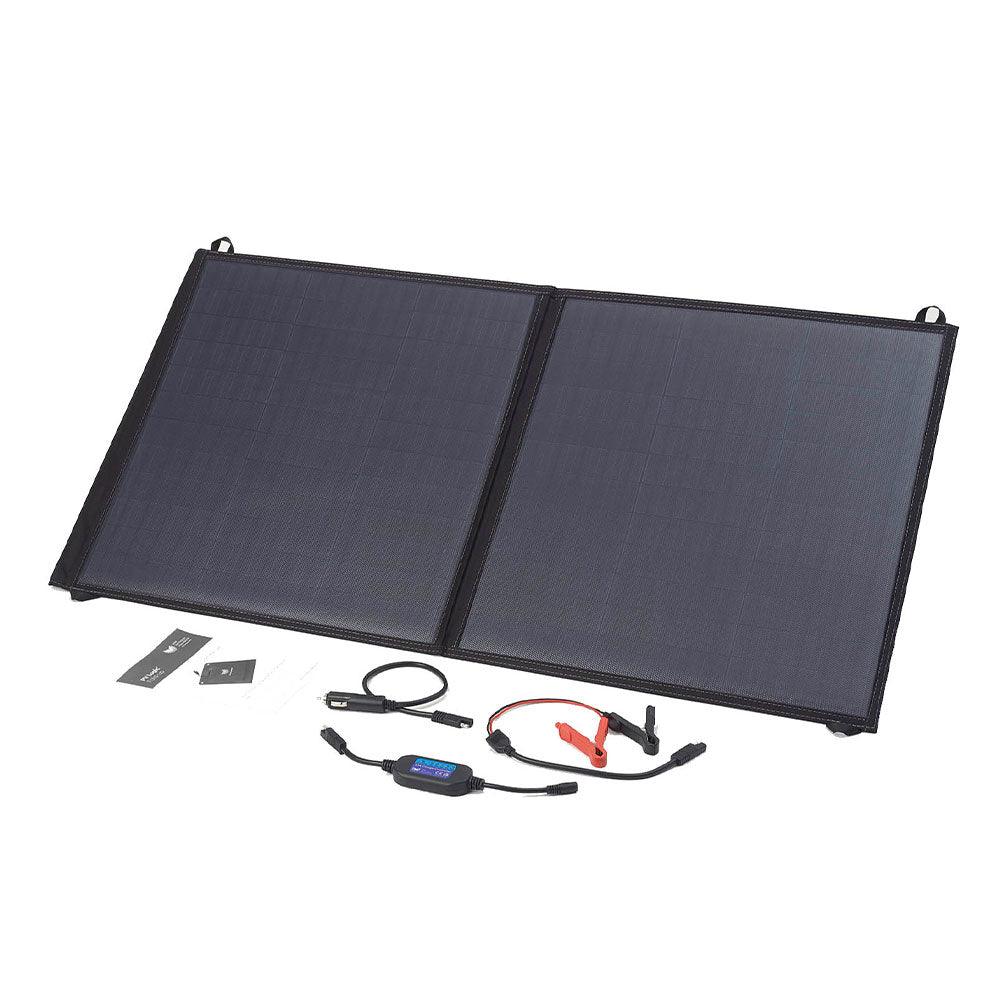

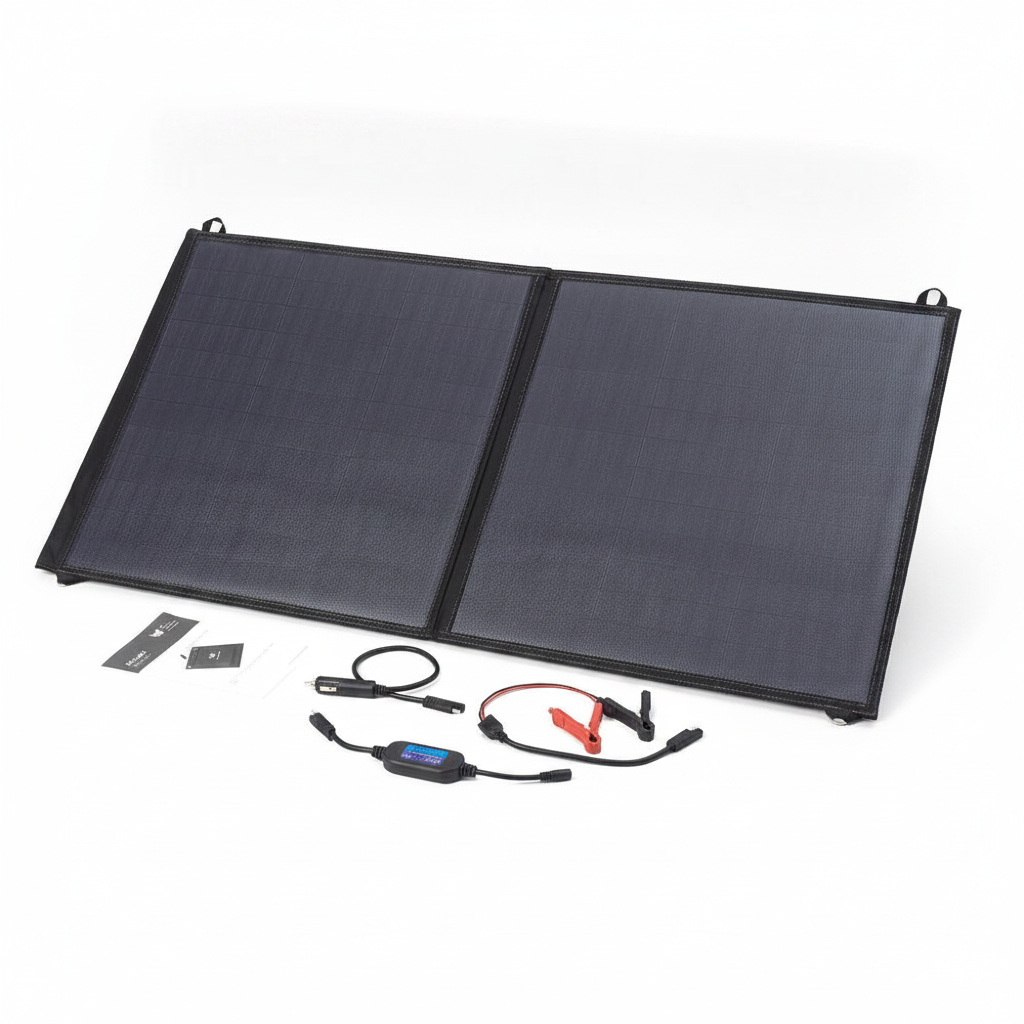

The Solar Technology 90W Fold Up Solar Panel with Charge Controller (SKU: 751-STFFP90) offers a highly portable and efficient solar power solution for various mobile applications. This compact kit features twin crystalline solar panels that fold neatly into a carry case, making it an ideal choice where space and weight are critical considerations.
Designed for ease of use, the panel connects directly to your 12V battery system thanks to its integrated 10A inline charge controller and supplied connectors. It's a complete package for rapid battery charging on the go, perfect for leisure vehicles and marine environments.
PORTABILITY FOCUS: Ideal for mobile applications where space and weight are critical.
Key Features
| ▶ 90W Crystalline Solar Panels — Efficient power generation from twin crystalline cells. |
| ▶ Integrated 10A Charge Controller — Manages battery charging and prevents overcharge. |
| ▶ Fold-Up Design with Carry Case — Compact and lightweight for easy transport and storage. |
| ▶ Built-in Blocking Diode — Prevents battery discharge back through the panel at night. |
| ▶ Ready-to-Use Connections — Supplied with crocodile clips and a 12V auto plug for direct battery connection. |

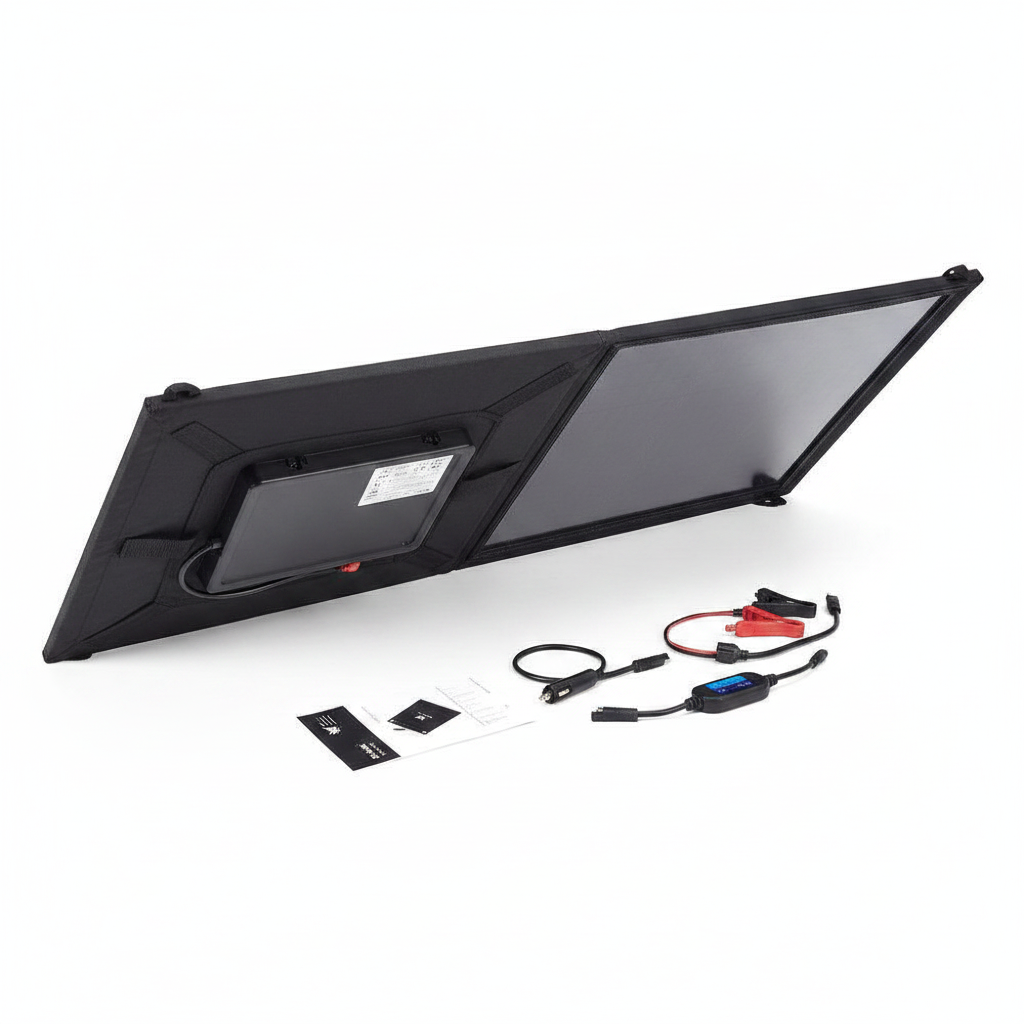

| ▶ Integrated Fold Away Stand — Allows for optimal panel positioning towards the sun. |
Technical Specifications
| Parameter | Value |
|---|---|
| Solar Panel Power | 90W |
| Max Current (Imp) | 4.54A |
| Max Voltage (Vmp) | 19.8V |
| Approx. Watt-hours per day | 585Wh |
| Approx. Amp-hours per day | 23.3Ah |
| Inline Controller Rating | 10A |
| Dimensions (Folded) | 540 x 525 x 40mm |
| Weight | 3.45Kg |
| Cable Length (Panel to Connections) | 2.9m |
System Integration & Components
This 90W folding solar panel kit is designed for straightforward integration into 12V battery systems. The included 10A charge controller is pre-wired, simplifying setup and ensuring your battery is charged safely and efficiently. It features an in-built diode to prevent reverse current flow, protecting your battery from discharge during periods of low light or at night.
The kit comes complete with all necessary connection accessories, including an extension cable with crocodile clips for direct battery terminal connection and a 12V auto plug for compatibility with vehicle accessory sockets. A user manual is also supplied to guide you through the setup and operation.
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Provides supplementary power for leisure batteries, extending off-grid stays. |
| Boats & Marine Use | Ideal for maintaining 12V boat batteries, powering small electronics, and lighting. |
| Campervans | Compact and easy to deploy for charging auxiliary batteries during trips. |
| Remote Power Needs | Suitable for temporary power in remote locations, camping, or outdoor events. |
Built-In Protection Functions
The integrated charge controller includes essential safety features to protect your battery and system. It features a built-in diode to prevent reverse battery feed, ensuring that power does not drain from your battery back into the solar panel during low light conditions or at night. The controller also manages the charging process to prevent overcharging, contributing to the longevity of your battery.
Common Questions
What type of batteries can this kit charge?
This kit is designed to charge 12V batteries, including sealed lead acid, gel, and flooded battery types. The charge controller allows you to select the appropriate battery type for optimised charging.
Is the panel waterproof?
The solar cells are water repellent and designed for outdoor use. However, the cloth housing is not fully water resistant and should be dried out as soon as possible after heavy rain to prevent damage to the stitching.
Can I leave the panel connected to my battery overnight?
Yes, the panel features a built-in blocking diode that prevents battery drain at night, so it can be left connected long-term.
How do I know if the panel is charging?
The inline charge controller has LED indicators. A green 'PV' LED indicates the solar panel is charging the battery. The 'BATT' LED shows the battery status.
Installation Notes
- Position the panel in a clear, sunlit area, free from obstructions or shading, for maximum efficiency.
- Utilise the integrated fold-away stand to angle the panels towards the sun, adjusting regularly to track its movement throughout the day.
- Connect the supplied crocodile clips or 12V auto plug directly to your 12V battery terminals, ensuring correct polarity (red for positive, black for negative).
- Ensure the battery has at least 6V to initiate the solar controller. If fully discharged, a brief charge by other means may be required.
- Select the correct battery type (sealed lead acid, gel, or flooded) on the charge controller for optimal charging.
Before You Buy
- Verify the 90W output is sufficient for your specific power requirements and battery capacity.
- Confirm compatibility with your 12V battery type (sealed lead acid, gel, or flooded).
- Consider the physical dimensions (540 x 525 x 40mm folded) and weight (3.45Kg) for transport and storage.
- Review the included accessories to ensure they meet your connection needs.
- Note that while the panel is designed for outdoor use, the cloth housing should be dried after heavy rain.
All specifications are based on manufacturer-provided data and verified information. Please consult the user manual for detailed instructions and safety guidelines. This product is supplied with a 2-year warranty against product defect.
