80W Rigid Solar Panel & Universal Fitting Kit
STP080 Panel & STCC10 Controller ย |ย Off-Grid & Marine Ready
The Solar Technology 80W Rigid Solar Panel Kit provides a reliable power solution for various off-grid applications. This comprehensive kit includes a robust 80W rigid solar panel (STP080), a 10A dual battery charge controller (STCC10), and a universal fitting kit, making it suitable for immediate installation on campervans, motorhomes, boats, and remote power systems.
Designed for durability and efficiency, the 80W panel features bypass diodes to minimise power loss from shading, while the advanced charge controller optimises battery charging and offers essential protection functions. The included universal fitting kit simplifies secure mounting to various surfaces.

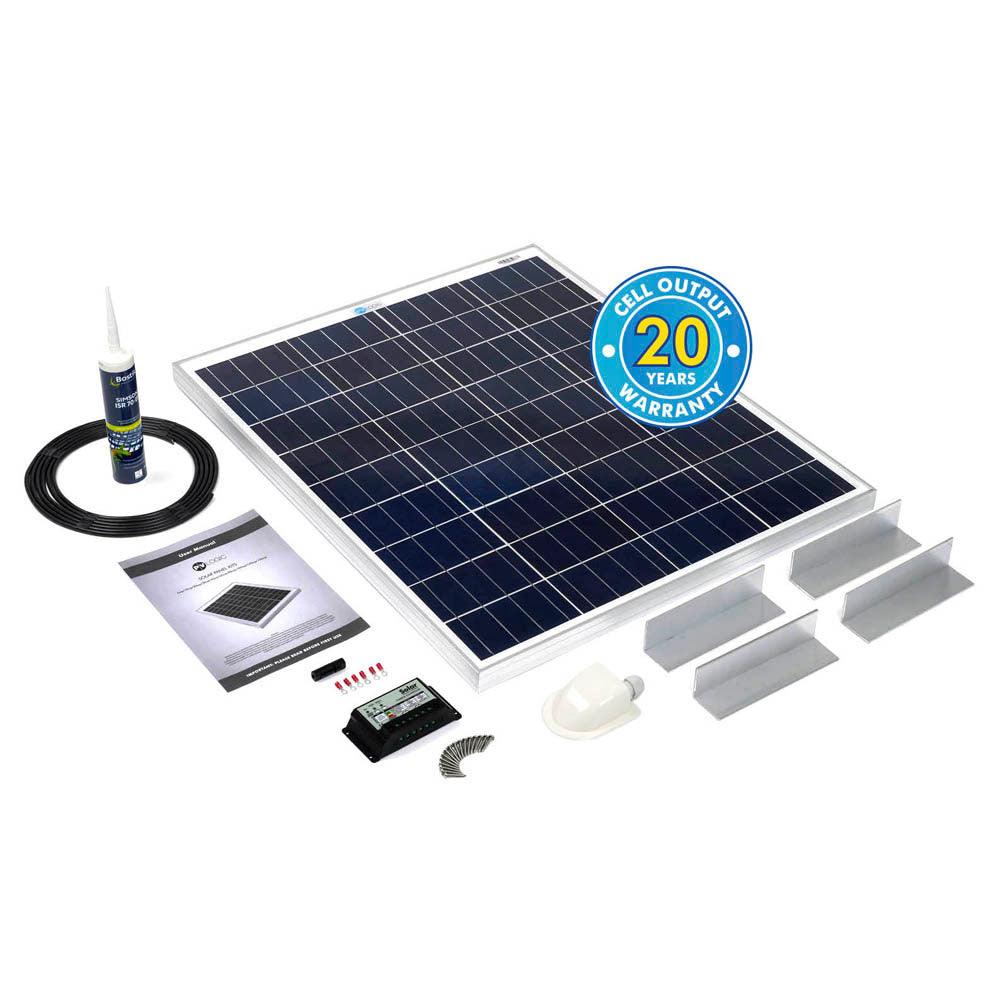

KIT INCLUDES: 80W Rigid Solar Panel (STP080), 10A Dual Battery Charge Controller (STCC10), and Universal Mounting Brackets.
Key Features
| โถย 80W Rigid Solar Panel (STP080) โ Provides consistent power generation for off-grid battery charging. |
| โถย 10A Dual Battery Charge Controller (STCC10) โ Manages charging for two separate 12V or 24V battery banks simultaneously. |
| โถย Universal Fitting Kit Included โ Simplifies secure mounting of the solar panel to flat surfaces like vehicle roofs or boat decks. |
| โถย Bypass Diodes โ Integrated into the panel to minimise power loss in shaded conditions, maximising energy yield. |
| โถย Automatic 12/24V System Recognition โ The charge controller automatically adapts to your battery system voltage. |
| โถย Comprehensive Electronic Protection โ Safeguards against common electrical faults, ensuring system longevity. |
Technical Specifications
STP080 80W Rigid Solar Panel
| Parameter | Value |
|---|---|
| Rated Power (Pmax) | 80W |
| Dimensions (L x W x H) | 836 x 670 x 35mm |
| Weight | 6.7Kg |
| Amp Hours per Day (approx.) | 27.9Ah |
| Max Power Voltage (Vmp) | 17.5VDC |
| Max Power Current (Imp) | 4.65A |
| Open Circuit Voltage (Voc) | 22V |
| Short Circuit Current (Isc) | 5A |
STCC10 10A Dual Battery Charge Controller
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12/24VDC (Auto Recognition) |
| Battery Voltage Range | 6-36V |
| Rated Battery Current | 10A |
| Over Voltage Disconnect Voltage | 16V/32V |
| Charging Limit Voltage | 14.6V/29.2V |
| Equalize Charging Voltage | 14.6V/29.2V |
| Float Charging Voltage | 13.8V/27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Overall Dimensions | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Net Weight | 155g |
Charging & Battery Modes (STCC10 Controller)
The STCC10 charge controller is designed to optimise battery life and system performance through its intelligent charging process and dual battery functionality.
- Dual Battery Charging: Unique function to charge two separate battery banks (e.g., leisure and starter batteries) simultaneously.
- Efficient Series PWM Charging: Utilises Pulse Width Modulation for effective and gentle charging, extending battery lifespan.
- Optimised Charging Process: Ensures batteries are charged efficiently to prevent overcharging and improve overall system reliability.
- 12/24V Automatic Recognition: Automatically detects and adapts to the nominal voltage of your battery system.
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides continuous trickle charging to prevent battery drain and power small appliances during travel. |
| Marine Vessels | Ideal for boats and yachts to maintain onboard battery charge for navigation, lighting, and essential electronics. |
| Off-Grid Cabins & Sheds | Powers lighting, small tools, and other low-power devices in remote locations without mains electricity. |
| Remote Power Systems | Suitable for electric fences, gate openers, garden pond pumps, and other isolated power requirements. |
Built-In Protection Functions (STCC10 Controller)
The STCC10 charge controller incorporates comprehensive self-diagnostics and electronic protection features to prevent damage from installation errors or system faults. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection up to 10A.
Common Questions
What is included in this Solar Technology kit?
This kit comprises an 80W rigid solar panel (STP080), a 10A dual battery charge controller (STCC10), and a universal fitting kit with alloy L-brackets and fixing screws.
What are the primary uses for this 80W solar kit?
This kit is ideal for off-grid applications such as charging leisure batteries in campervans, motorhomes, and boats, as well as providing power for remote cabins, sheds, and various low-power systems.
Is a charge controller necessary for this 80W panel?
Yes, a charge controller is essential for solar panels rated 20W and above. The included STCC10 controller protects your batteries from overcharging and prevents reverse current drain, ensuring optimal battery health and system performance.
How is the universal fitting kit used for mounting?
The alloy L-brackets are fixed to the solar panel frame using the supplied stainless steel screws. The lower surface of the brackets then bonds to the roof or mounting surface using a suitable adhesive such as SIKA Flex 252 or similar (adhesive not included).
Installation Notes
- Ensure all wiring connections are secure and correctly polarised to prevent damage.
- For roof mounting, use a suitable, durable adhesive (e.g., SIKA Flex 252) to bond the universal fitting kit brackets to the surface.
- Position the solar panel to maximise sun exposure throughout the day, avoiding shaded areas.
- Consider the cable routing and ensure all cables are protected from environmental damage and secured appropriately.
- It is recommended to consult with a qualified installer for complex setups or if you are unsure about any aspect of the installation.
Before You Buy
- Verify that the 80W power output is sufficient for your specific energy requirements.
- Confirm the physical dimensions of the solar panel (836 x 670 x 35mm) to ensure it fits your intended mounting location.
- Check your battery system voltage (12V or 24V) to ensure compatibility with the charge controller's auto-recognition feature.
- Consider the type and capacity of your batteries to ensure they are suitable for charging with a 10A PWM controller.
- Note that adhesive for mounting the fitting kit is not included and must be purchased separately.
All specifications are based on manufacturer data. Always verify compatibility and installation requirements with a qualified professional before purchase and installation.
