Solar Technology 80W Rigid Solar Panel & Aero Brackets Kit
Solar Technology 80W Rigid Solar Panel & Aero Brackets Kit
SKU:751-STPMH80AE
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
80W Rigid Solar Panel & Dual Battery Charge Kit
STP080 Panel & STCC10 Controller & Aero Brackets ย |ย 12V/24V Off-Grid Power
The Solar Technology 80W Rigid Solar Panel & Aero Brackets Kit provides a robust and efficient solution for off-grid power generation. This comprehensive kit is designed for UK users seeking reliable solar energy for their campervans, motorhomes, boats, or remote cabin setups. It combines a high-performance 80W rigid solar panel with a versatile 10A dual battery charge controller and easy-to-install aero mounting brackets.
Ideal for maintaining battery health and powering essential 12V or 24V appliances, this kit offers a practical step towards energy independence, ensuring your batteries remain charged even when away from mains power.

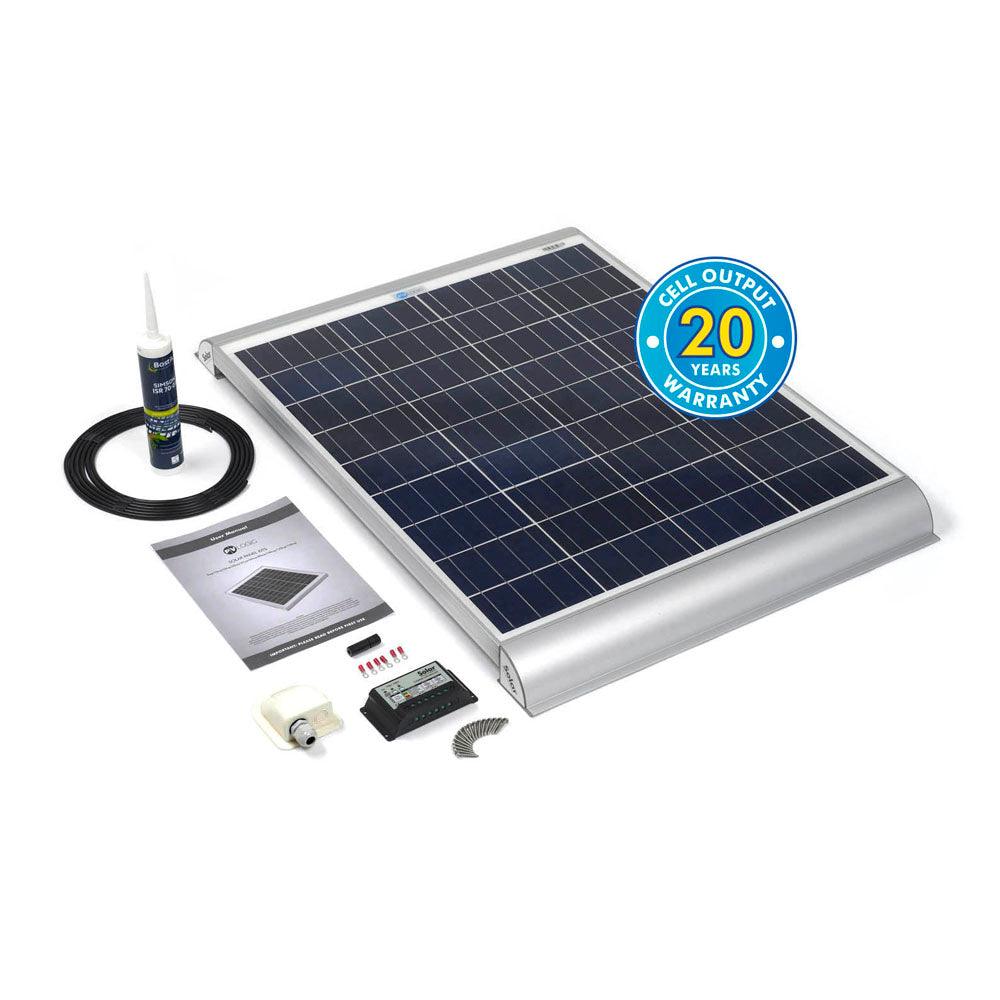

KIT INCLUDES: 80W Rigid Solar Panel (STP080), 10A Dual Battery Charge Controller (STCC10), Aero Mounting Brackets.
Key Features
| โถย 80W Rigid Solar Panel โ Delivers consistent power for charging 12V/24V battery systems. |
| โถย 10A Dual Battery Charge Controller โ Manages charging for two separate battery banks simultaneously, ideal for leisure and starter batteries. |
| โถย Integrated Bypass Diodes โ Minimises power loss from partial shading, ensuring maximum energy generation. |
| โถย Automatic 12V/24V System Recognition โ Simplifies setup and ensures compatibility with various battery configurations. |
| โถย Aero Mounting Brackets Included โ Allows for secure, drill-free bonding to surfaces like caravan roofs or boat decks. |
| โถย Comprehensive Electronic Protection โ Safeguards against common system faults, enhancing reliability and battery lifespan. |
| โถย Optimised PWM Charging โ Extends battery life and improves overall solar system performance. |
Technical Specifications
Solar Technology STP080 80W Rigid Solar Panel
| Parameter | Value |
|---|---|
| Power (Pmax) | 80W |
| Dimensions (L x W x D) | 836 x 670 x 35mm |
| Weight | 6.7Kg |
| Estimated Daily Amp Hours (A) | 27.9 Ah |
| Max Power Voltage (Vmp) | 17.5 VDC |
| Max Power Current (Imp) | 4.65 A |
| Open Circuit Voltage (Voc) | 22 V |
| Short Circuit Current (Isc) | 5 A |
Solar Technology STCC10 10A Dual Battery Charge Controller
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12/24VDC (Auto Recognition) |
| Battery Voltage Range | 6-36V |
| Rated Battery Current | 10A |
| Over Voltage Disconnect Voltage | 16V/32V |
| Charging Limit Voltage | 14.6V/29.2V |
| Equalize Charging Voltage | 14.6V/29.2V |
| Float Charging Voltage | 13.8V/27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Overall Dimensions (L x W x D) | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Net Weight | 155g |
Charging & Battery Modes
The included STCC10 charge controller features an intelligent PWM charging process optimised for battery longevity and system performance. It supports both 12V and 24V nominal systems with automatic recognition, simplifying integration into various setups.
| Mode/Function | Description |
|---|---|
| Dual Battery Charging | Charges two separate battery banks simultaneously, ideal for leisure and engine starter batteries. |
| Series PWM Charging | Efficient charging method that extends battery lifespan and improves overall system performance. |
| Automatic Voltage Recognition | Automatically detects and adapts to 12V or 24V nominal battery systems. |
| Multi-Stage Charging | Includes bulk, absorption, and float stages to ensure optimal and safe battery charging. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides reliable power for leisure batteries, lighting, and small appliances during travel and off-grid camping. |
| Marine Vessels | Keeps boat batteries charged for navigation, communication, and onboard electronics. |
| Off-Grid Cabins & Sheds | Powers lighting, small tools, and charging devices in remote locations without mains electricity. |
| Remote Monitoring Systems | Suitable for providing continuous power to security cameras, weather stations, or other low-power remote equipment. |
Built-In Protection Functions
The STCC10 10A Dual Battery Charge Controller incorporates multiple electronic protection features to ensure safe and reliable operation. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection up to 10A. These safeguards help prevent damage from installation errors or system faults, protecting both the controller and connected batteries.
Common Questions
What is included in this Solar Technology kit?
This kit includes one Solar Technology STP080 80W Rigid Solar Panel, one Solar Technology STCC10 10A Dual Battery Charge Controller, and a set of Aero Mounting Brackets with side caps and fixings.
How does the dual battery charge controller work?
The STCC10 controller can manage the charging of two separate 12V or 24V battery banks simultaneously from a single solar panel. It intelligently prioritises charging to ensure both batteries are maintained, typically a leisure battery and a starter battery in a vehicle or boat.
Are the aero brackets suitable for all surfaces?
The included aero brackets are designed for safe bonding to flat, non-porous surfaces such as those found on caravans, motorhomes, and boats. They eliminate the need for drilling, providing a secure and watertight installation when used with an appropriate adhesive (adhesive not included).
Is a charge controller always necessary with a solar panel?
For rigid solar panels rated 20W and above, a charge controller is essential. It protects your battery from overcharging and prevents reverse current drain from the battery back to the panel at night, thereby extending battery life and ensuring system safety.
Installation Notes
- Ensure the solar panel is mounted in a location that receives maximum direct sunlight throughout the day, free from shading.
- The aero brackets allow for bonding to the mounting surface; use a suitable, high-strength, weather-resistant adhesive (not supplied) for secure attachment.
- Connect the solar panel to the charge controller, and then the charge controller to your battery banks, following the correct polarity and wiring sequence as per the manufacturer's instructions.
- All electrical connections should be secure and protected from environmental elements. Consider professional installation for optimal safety and performance.
- The charge controller should be installed in a dry, well-ventilated area, protected from direct sunlight and moisture.
Before You Buy
- System Voltage: Confirm your battery system is 12V or 24V, which this controller automatically recognises.
- Power Needs: Assess your daily energy consumption to ensure an 80W panel is sufficient for your requirements.
- Battery Type: Verify the charge controller's compatibility with your specific battery chemistry (e.g., lead-acid, gel, AGM).
- Mounting Surface: Ensure your intended mounting surface is clean, flat, and suitable for adhesive bonding with the aero brackets.
- Cabling: Consider the necessary cable lengths and gauges for connecting the panel to the controller and the controller to your batteries (cabling not included).
- Additional Components: You may require additional fuses, isolators, or battery terminals depending on your specific installation.
Always verify product specifications and compatibility with your existing system components before purchase. Consult a qualified professional for installation if unsure.
