Solar Technology 80W Flexi Solar Panel & Roof/Deck Top Kit
Solar Technology 80W Flexi Solar Panel & Roof/Deck Top Kit
SKU:751-STPVFRT080
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
80W Flexible Solar Panel & Roof/Deck Top Kit
High-Efficiency ETFE ย |ย Dual Battery Charging ย |ย UK Off-Grid Ready
The Solar Technology 80W Flexi Solar Panel & Roof/Deck Top Kit provides a robust and efficient power solution for a variety of mobile and off-grid applications. This comprehensive kit includes a high-performance 80W semi-flexible solar panel (STPVF080) and a versatile 10A dual battery charge controller (STCC10), making it ideal for campervans, motorhomes, marine vessels, and remote installations.
Designed for durability and ease of installation, the panel features an advanced ETFE top layer for enhanced resilience and a self-healing capacity against minor abrasions. Coupled with the intelligent charge controller, this kit ensures reliable power generation and efficient management of two separate battery banks.

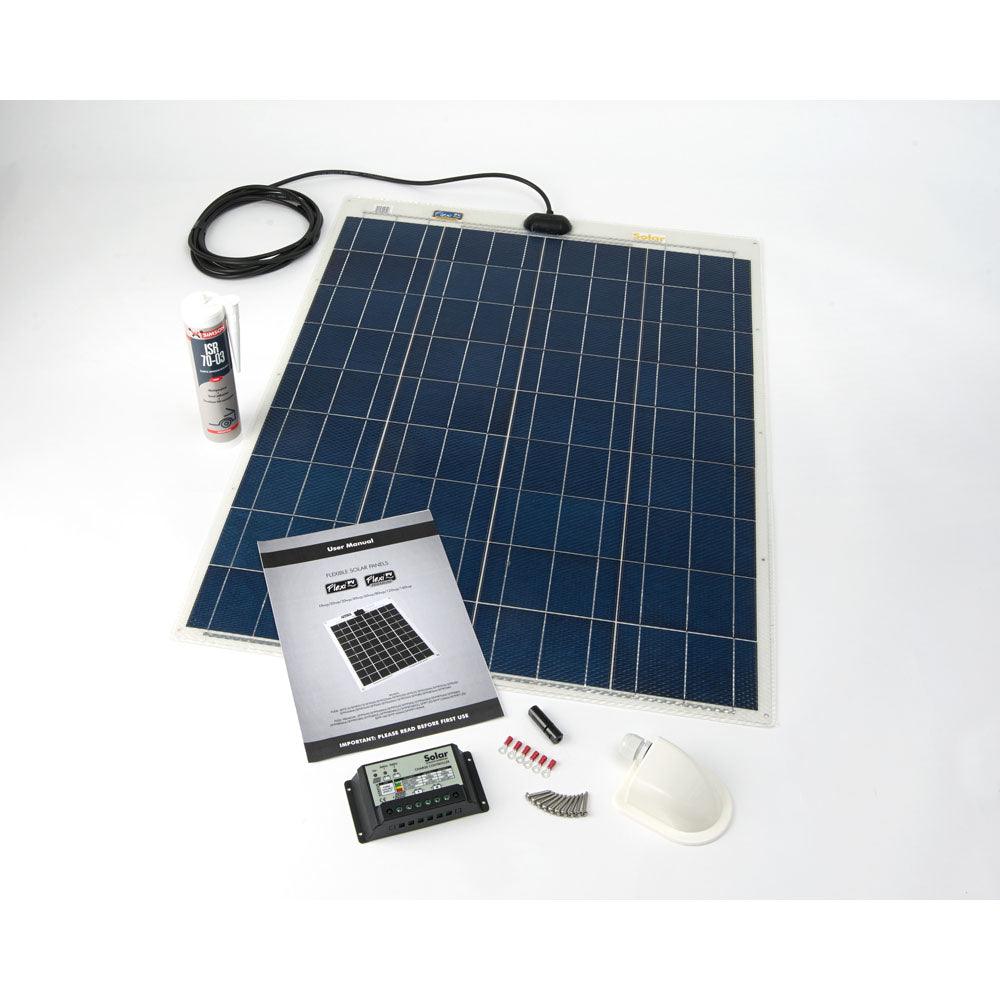

KIT INCLUDES: 80W Flexible Solar Panel, 10A Dual Battery Charge Controller, Fixing Kit (Bonding Agent & Cable Gland).
Key Features
| โถย 80W Semi-Flexible Panel โ Conforms to slight curves (up to 3cm per metre) for versatile mounting on vehicles and boats. |
| โถย Durable ETFE Surface โ Features a self-healing top layer for enhanced resilience against minor abrasions and provides an anti-slip finish. |
| โถย Fully Waterproof Design โ Ensures complete encapsulation and a sealed junction box for reliable performance in harsh outdoor and marine conditions. |
| โถย Integrated Shading Diodes โ Minimise hot spot damage and maintain power output under partial shading conditions. |
| โถย 10A Dual Battery Charge Controller โ Efficiently charges two separate 12V or 24V battery banks simultaneously. |
| โถย Comprehensive Protection โ Built-in safeguards against reverse current, overload, open circuit, and deep discharge. |
| โถย Complete Fixing Kit โ Includes bonding agent and a waterproof cable gland for secure and weather-resistant installation. |
Technical Specifications
80W Flexible Solar Panel (STPVF080)
| Parameter | Value |
|---|---|
| Power | 80W |
| Dimensions (L x W x D) | 806 x 665 x 4mm |
| Weight | 3.75 kg |
| Max Power Voltage (Vmp) | 17.6V |
| Max Power Current (Imp) | 4.55A |
| Open Circuit Voltage (Voc) | 21.9V |
| Short Circuit Current (Isc) | 4.91A |
| Estimated Daily Output (UK Average) | Up to 27.3 Ah (at 12V) |
10A Dual Battery Charge Controller (STCC10)
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12V / 24V DC (Auto) |
| Rated Battery Current | 10A |
| Battery Voltage Range | 6-36V |
| Over Voltage Disconnect | 16V / 32V |
| Charging Limit Voltage | 14.6V / 29.2V |
| Equalize Charging Voltage | 14.6V / 29.2V |
| Float Charging Voltage | 13.8V / 27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Dimensions (L x W x D) | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Weight | 155g |
Panel Design & Durability
The PV Logic Flexi range, including this 80W panel, is engineered for resilience in demanding conditions. Its ETFE top layer offers a unique "memory effect" or self-healing capacity, allowing minor abrasions from branches or light impacts to recover within hours. The dimpled ETFE surface also provides an anti-slip finish, making it safe to walk on with soft deck shoes, particularly useful for boat installations.
Each panel is assembled with a six-layer heavy-duty laminate, ensuring complete encapsulation and protection of the solar cell circuit from extreme weather. The junction box is injected with special silicone to guarantee no water ingress, and its unique curved design with rounded panel corners prevents snagging and provides superior adhesion. Strain relief is also provided for the fitted 4m UV stabilised PV cable.
Charging & Battery Management (STCC10)
The included 10A Dual Battery Charge Controller (STCC10) is designed for off-grid solar systems, offering the unique ability to charge two separate battery banks simultaneously. It features automatic 12V/24V system voltage recognition, simplifying setup and ensuring compatibility with various battery configurations.
Utilising efficient Series PWM charging, the controller optimises the charging process for extended battery life and improved overall system performance. Its comprehensive self-diagnostics and electronic protection functions safeguard against common installation mistakes and system faults, providing peace of mind for users.
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Providing auxiliary power for leisure batteries, lighting, and onboard appliances. |
| Marine Vessels | Charging service batteries on yachts, boats, and narrowboats, even on slightly curved decks. |
| Off-Grid Cabins & Sheds | Supplying power for lighting, small electronics, and communication systems in remote locations. |
| Remote Monitoring | Powering sensors, cameras, or telecommunication equipment in isolated or hard-to-reach areas. |
Built-In Protection Functions
The included 10A Dual Battery Charge Controller (STCC10) incorporates multiple electronic protection features to ensure system safety and longevity: โถย Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection up to 10A.
Common Questions
What makes this solar panel "flexible"?
This is a semi-flexible solar panel, designed to conform to slight curves, typically up to 3cm per metre. This makes it ideal for mounting on non-flat surfaces common on campervans, motorhomes, and boat decks.
Can I walk on the PV Logic Flexi panel?
Yes, the durable ETFE top layer is designed to be walked on with soft deck shoes. Its dimpled texture also provides an anti-slip surface, enhancing safety when installed on a boat deck or vehicle roof.
How does the dual battery charge controller work?
The STCC10 controller intelligently manages the charging of two separate battery banks (e.g., leisure and starter batteries). It prioritises the main battery while ensuring the secondary battery also receives a charge, all while automatically recognising 12V or 24V systems.
Is this kit suitable for 24V systems?
Yes, the included 10A charge controller automatically recognises and adapts to both 12V and 24V nominal system voltages, making it versatile for various battery setups.
Installation Notes
- The flexible panel can be bonded to flat or slightly curved surfaces (up to 3cm curve per metre) using a suitable adhesive such as Simson ISR 70-03, which is included in the fixing kit.
- Alternatively, the panel features pre-drilled 4.5mm holes for mechanical fixing, either instead of or in addition to bonding.
- It is crucial to follow the recommended glue pattern (detailed in the instructions) to ensure adequate airflow underneath the panel, preventing heat build-up and potential warping under extreme heat.
- All electrical connections should be made securely and in accordance with relevant safety standards. If unsure, consult a qualified professional.
Before You Buy
- Verify the available surface area for panel installation matches the panel dimensions (806 x 665 x 4mm) to ensure a proper fit.
- Confirm your battery system voltage (12V or 24V) is compatible with the included charge controller's automatic recognition feature.
- Consider your estimated daily power consumption to ensure the 80W output is sufficient for your specific energy needs.
- Ensure you have any additional tools or materials required for your chosen installation method, beyond the bonding agent and cable gland supplied.
Specifications are subject to change by the manufacturer. Always verify compatibility and installation requirements before purchase. E&OE.
