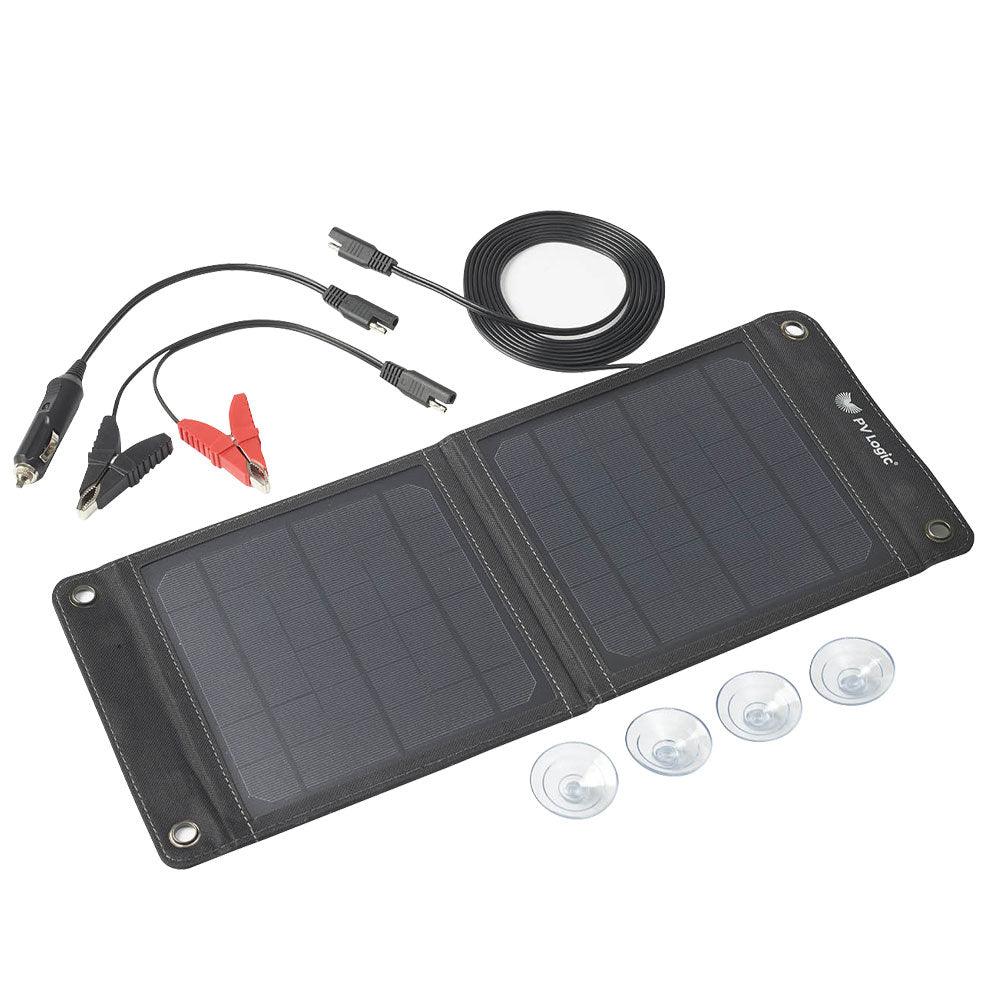

Solar Technology 8W Fold Up Solar Panel
Solar Technology 8W Fold Up Solar Panel
SKU:751-STFP08
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Solar Technology 8W Fold Up Solar Panel
Compact & Portable 12V Battery Maintainer | Ideal for Leisure & Off-Grid Use
The Solar Technology 8W Fold Up Solar Panel is a highly portable and efficient solution designed to maintain the charge of your 12V batteries. Consisting of twin crystalline solar panels, this unit folds down into a compact package, making it exceptionally easy to store and transport. It's engineered to deliver a consistent trickle charge, preventing batteries from going flat over extended periods, which is crucial for vehicles and leisure equipment in storage or during infrequent use.
This all-weather solar battery maintainer can be positioned both indoors and outdoors, provided it has direct access to sunlight. It comes complete with essential accessories for quick connection, including crocodile clips and a 12V auto plug, ensuring versatile compatibility with various battery setups.
IMPORTANT NOTE: This panel is specifically designed for use with 12V batteries that are 60Ah or larger.
Key Features
| ▶ 8W Crystalline Solar Panels — Provides reliable trickle charging for 12V batteries. |
| ▶ Ultra-Compact Foldable Design — Folds to 230 x 198 x 15mm for easy storage in small spaces like a glove box. |
| ▶ Integrated Reverse Feed Diode — Prevents battery discharge during periods of no sunlight. |
| ▶ Versatile Connection Options — Includes 12V auto plug and crocodile clips for direct battery attachment. |
| ▶ All-Weather Durability — Designed for use in various outdoor conditions. |
| ▶ Suction Cup Mounting — Supplied with suction cups for secure placement on vehicle windscreens or other smooth surfaces. |
Technical Specifications
| Parameter | Value |
|---|---|
| Solar Panel Power | 8W |
| Max Current (Imp) | 0.44A |
| Max Voltage (Vmp) | 18V |
| Approx. Watt-hours per day | 52Wh |
| Approx. Amp-hours per day | 4.29Ah |
| Cable Length (Panel to Connections) | 3m |
| Dimensions Closed (L x W x D) | 230 x 198 x 15mm |
| Dimensions Open (L x W x D) | 470 x 198 x 7.5mm |
| Weight | 600g |
Operating & Power Guidance
The PV Logic 8W Fold Up Solar Panel is designed for straightforward operation, providing a continuous trickle charge to your 12V battery system. It functions effectively in all daylight conditions, making it a reliable choice for maintaining battery health.
This panel connects directly to your battery without the need for an external charge controller, provided the battery capacity is 60Ah or greater. For batteries smaller than 60Ah, a separate charge controller is recommended to prevent overcharging.
Typical Applications
| Application | Description |
|---|---|
| Car & Van Battery Maintenance | Prevents 12V vehicle batteries from going flat during periods of inactivity or storage. |
| Motorhomes & Caravans | Ideal for maintaining leisure batteries, especially during winter storage or when parked for extended times. |
| Boats & Marine Vessels | Keeps marine 12V batteries topped up, reducing the risk of discharge while docked or moored. |
| Off-Grid & Remote Power | Provides a small, portable power source for maintaining batteries in remote locations or for occasional use. |
Built-In Protection Functions
The Solar Technology 8W Fold Up Solar Panel incorporates an integrated reverse feed diode. This crucial feature prevents any potential reverse current drain from your battery back to the solar panel during periods of darkness, ensuring your battery remains charged and protected.
Common Questions
What type of batteries can this panel maintain?
This 8W solar panel is designed to maintain 12V batteries. It is specifically recommended for batteries with a capacity of 60Ah or larger.
How do I connect the panel to my battery?
The panel comes with a 3-metre cable and two 200mm extension cables, offering flexible connection options via either crocodile clips for direct battery terminal attachment or a 12V auto plug for in-car sockets.
Can the panel be used in all weather conditions?
Yes, the 8W Fold Up Solar Panel features an all-weather design, allowing it to be positioned both inside and outside your vehicle or setup, as long as it is facing the sun.
How should I position the solar panel?
The panel can be rested on a surface or secured using the included rubber suction cups, which are ideal for attaching it to a vehicle's windscreen or other smooth, sun-facing surfaces.
Installation Notes
- Optimal Placement: For best performance, position the solar panel where it receives maximum direct sunlight throughout the day. While it works behind glass, direct exposure is more efficient.
- Secure Mounting: Use the provided suction cups to securely attach the panel to a clean, smooth surface, such as a windscreen, to prevent movement.
- Cable Management: Ensure all cables are routed safely and are not pinched or damaged, which could lead to a short circuit.
- Battery Connection: Connect the appropriate cable (crocodile clips or 12V auto plug) directly to your 12V battery, ensuring correct polarity.
Before You Buy
- Battery Compatibility: Confirm your battery is a 12V type and has a capacity of 60Ah or greater. For smaller batteries, a separate charge controller is advised.
- Intended Use: This panel is primarily a battery maintainer, ideal for preventing discharge during storage or light use, rather than a primary charging source for heavily drained batteries.
- Sunlight Exposure: Consider where you will typically position the panel and if it will receive adequate sunlight for effective operation.
- Included Accessories: Review the 'In The Box' section to ensure all necessary connection cables and mounting accessories are suitable for your specific application.
Always verify product specifications and compatibility with your existing system before purchase. All information is based on manufacturer-provided data and verified sources.
