Solar Technology 60W Rigid Solar Panel & Universal Fitting Kit
Solar Technology 60W Rigid Solar Panel & Universal Fitting Kit
SKU:751-STPMH60
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
60W Rigid Solar Panel & Universal Fitting Kit
Complete Off-Grid Power Solution ย |ย 12V/24V Dual Battery Charging
The Solar Technology 60W Rigid Solar Panel Kit provides a robust and reliable power source for various off-grid applications. This comprehensive package includes a high-performance 60W rigid solar panel (STP060), a versatile 10A dual battery charge controller (STCC10), and a universal fitting kit for secure installation. Designed for UK conditions, it offers an efficient way to maintain battery charge and power essential devices in remote locations.
Ideal for leisure vehicles, marine craft, and remote installations, this kit ensures your 12V or 24V battery systems are optimally charged, preventing deep discharge and extending battery life. The included universal fitting kit simplifies mounting on flat surfaces, making it a practical choice for self-sufficient power generation.
KEY ADVANTAGE: Dual battery charging capability with 12V/24V automatic system recognition for flexible power management.
Key Features
| โถย 60W Rigid Solar Panel (STP060) โ Delivers consistent power output for reliable off-grid energy. |
| โถย 10A Dual Battery Charge Controller (STCC10) โ Efficiently charges and protects two independent 12V or 24V battery banks simultaneously. |
| โถย Universal Fitting Kit Included โ Provides robust alloy L-brackets and fixing screws for straightforward, secure panel mounting. |
| โถย PWM Charging Technology โ Optimises battery charging for extended lifespan and improved system performance. |
| โถย Comprehensive Protection โ Built-in safeguards against overcharge, reverse current, overload, and deep discharge. |
| โถย Durable Construction โ Designed for outdoor use in various environments, from marine to remote cabins. |
Technical Specifications
Solar Technology STP060 60W Rigid Solar Panel
| Parameter | Value |
|---|---|
| Power (Pmax) | 60W |
| Dimensions (L x W x H) | 670 x 640 x 35mm |
| Weight | 4.5Kg |
| Amp Hours per Day (A) | 20.94 |
| Voltage at Max Power (Vmp) | 17.5 VDC |
| Current at Max Power (Imp) | 3.49 A |
| Open Circuit Voltage (Voc) | 22 V |
| Short Circuit Current (Isc) | 3.97 A |
Solar Technology STCC10 10A Dual Battery Charge Controller
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12/24VDC (Auto Recognition) |
| Battery Voltage Range | 6-36V |
| Rated Battery Current | 10A |
| Over Voltage Disconnect Voltage | 16V/32V |
| Charging Limit Voltage | 14.6V/29.2V |
| Equalize Charging Voltage | 14.6V/29.2V |
| Float Charging Voltage | 13.8V/27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Overall Dimensions (L x W x H) | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Net Weight | 155g |
Charging & Battery Management
The Solar Technology STCC10 charge controller is engineered to optimise your solar charging system. It automatically recognises 12V or 24V battery systems and employs efficient Series PWM charging to enhance battery longevity and overall system performance. Its unique dual battery charging function is particularly beneficial for applications requiring power to two separate battery banks, such as leisure and starter batteries in a motorhome.
The controller intelligently manages the charging process, ensuring the primary battery receives sufficient charge before distributing power to the secondary battery, ultimately preventing overcharging and reverse current drain.
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides continuous power for leisure batteries, lighting, and small appliances during travel and stationary use. |
| Marine Vessels | Ideal for boats and yachts to keep service batteries charged for navigation, communication, and onboard electronics. |
| Off-Grid Cabins & Sheds | Powers lighting, small tools, and other DC loads in remote structures without mains electricity. |
| Remote Monitoring & Signage | Suitable for powering electric fences, gates, pond pumps, and illuminated street signage where grid power is unavailable. |
Built-In Protection Functions
The Solar Technology STCC10 charge controller incorporates comprehensive self-diagnostics and electronic protection features to safeguard your system against common faults and installation errors. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection up to 10A.
Common Questions
What is included in this kit?

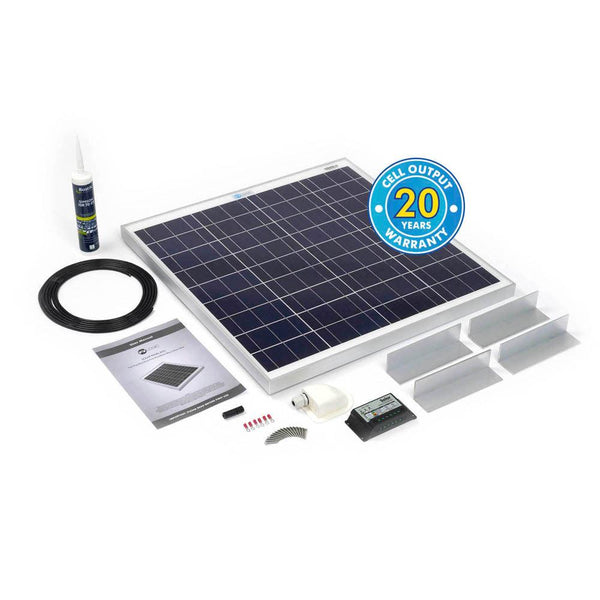

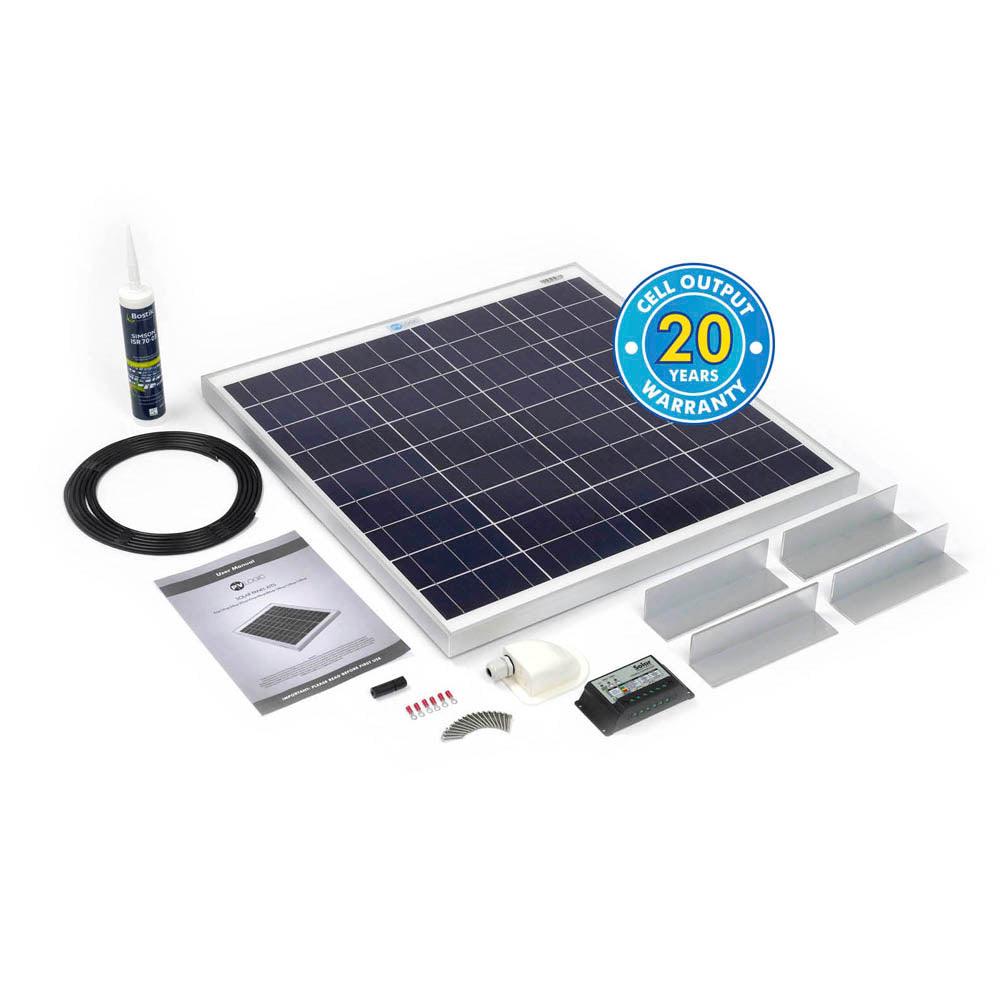

The kit comprises a Solar Technology STP060 60W rigid solar panel, a Solar Technology STCC10 10A dual battery charge controller, and a universal fitting kit with alloy L-brackets and fixing screws.
Can this kit charge both my leisure and starter batteries?
Yes, the included STCC10 10A Dual Battery Charge Controller is specifically designed to charge two separate 12V or 24V battery banks simultaneously, making it ideal for vehicles with both leisure and starter batteries.
What type of adhesive is recommended for the fitting kit?
The universal fitting kit is designed to be bonded to the roof using a suitable adhesive such as SIKA Flex 252 or similar, which is widely recommended for secure solar panel installations on motorhomes and boats.
Is a charge controller necessary for a 60W solar panel?
Yes, a charge controller is essential for solar panels of 20W and above. It protects your battery from overcharging and prevents reverse current drain, ensuring optimal battery health and system efficiency.
Installation Notes
- The universal fitting kit includes alloy L-brackets and screws for securing the panel frame.
- For roof mounting, the L-brackets are designed to be bonded to the surface using a high-strength adhesive like SIKA Flex 252 (not included). Ensure surfaces are clean and properly prepared for optimal adhesion.
- Wiring should be carried out by a competent person, following all relevant electrical safety guidelines and manufacturer instructions.
- Ensure correct polarity when connecting the solar panel to the charge controller and the charge controller to the batteries to prevent damage.
- Position the solar panel in an unshaded area to maximise sunlight exposure and energy generation.
Before You Buy
- Assess Your Power Needs: Determine the total wattage and amp-hours required by your appliances to ensure the 60W panel meets your daily energy consumption.
- Check Battery Compatibility: The STCC10 controller is compatible with 12V and 24V battery systems. Verify your battery type and voltage before purchase.
- Consider Installation Surface: The universal fitting kit is designed for flat surfaces. Ensure your intended mounting location is suitable.
- Additional Components: This kit provides the core components. You may require additional wiring, fuses, and a suitable adhesive (e.g., SIKA Flex 252) for a complete installation.
Always verify product specifications and compatibility with your existing system before purchase. All technical data is based on manufacturer specifications and may be subject to change.
