Solar Technology 60W Fold Up Solar Panel with Charge Controller
Solar Technology 60W Fold Up Solar Panel with Charge Controller
SKU:751-STFFP60
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
60W Fold Up Solar Panel with Charge Controller
Portable & Lightweight | Integrated 10A Controller | 12V Battery Charging

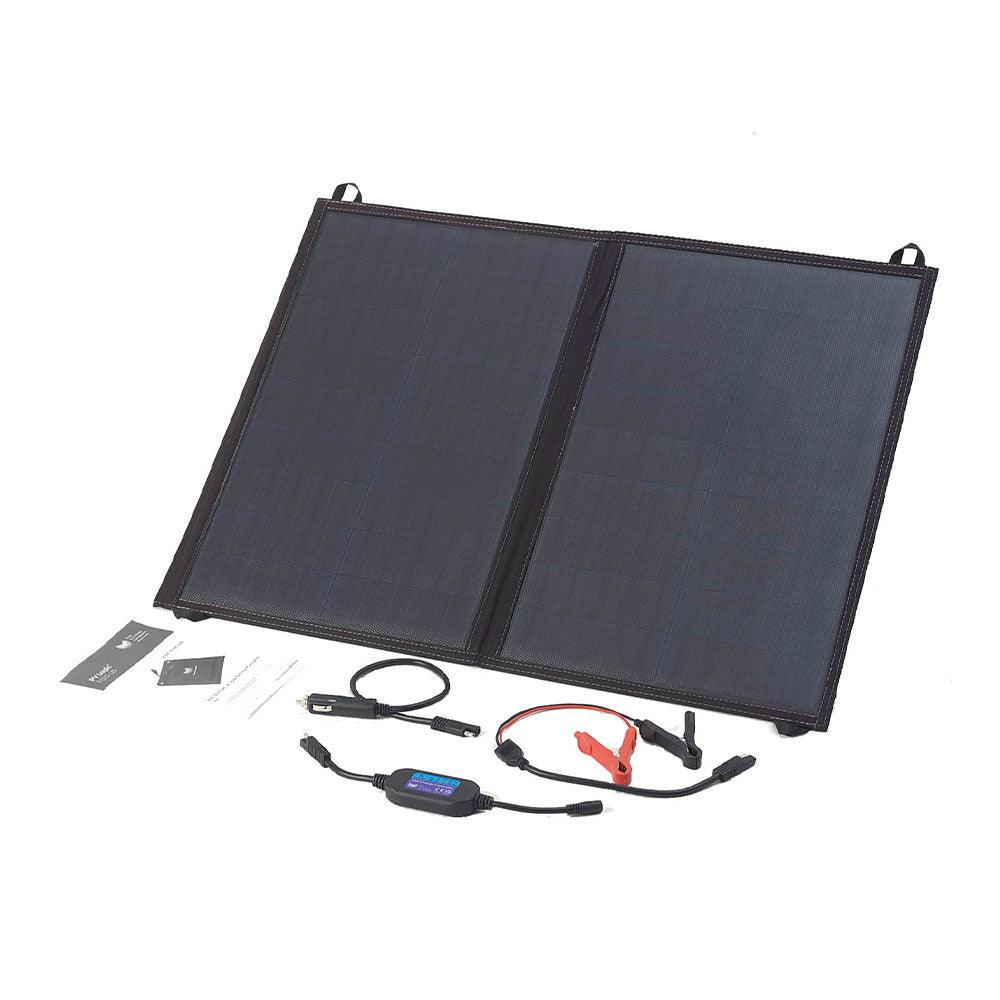

The Solar Technology 60W Fold Up Solar Panel offers a compact and highly portable solution for generating renewable energy on the go. Designed with twin crystalline solar panels, this unit conveniently folds into a carry case, making it an ideal choice where space, weight, and portability are crucial factors for your 12V power needs.
Equipped with an integrated 10A inline charge controller, this solar panel connects directly to your 12V battery, providing efficient and protected charging. It comes complete with an integrated fold-away stand, an extension cable with crocodile clips, and a 12V auto plug for versatile and immediate use in various mobile applications.
READY TO USE: Supplied with all necessary cables and a charge controller for direct 12V battery connection.
Key Features
| ▶ 60W Crystalline Solar Panels — Provides reliable power generation for 12V systems. |
| ▶ Integrated 10A Charge Controller — Protects your 12V battery from overcharging and reverse current. |
| ▶ Highly Portable & Foldable Design — Compacts into a carry case (530 x 360 x 40mm) for easy transport and storage. |
| ▶ Lightweight Construction — Weighs only 2.47kg, ideal for mobile and remote applications. |
| ▶ Direct Battery Connection — Supplied with crocodile clips and a 12V auto plug for immediate use. |
| ▶ Built-in Fold Away Stand — Allows for easy setup and optimal angling towards the sun. |
Technical Specifications
| Parameter | Value |
|---|---|
| Solar Panel Power | 60W |
| Max Current (Imp) | 3.03A |
| Max Voltage (Vmp) | 19.8V |
| Approx. Watt-hours per day | 390Wh |
| Approx. Amp-hours per day | 23.3Ah |
| Charge Controller Rating | 10A |
| Folded Dimensions (L x W x D) | 530 x 360 x 40mm |
| Weight | 2.47Kg |
Operating & Power Guidance
This 60W fold-up solar panel is specifically designed for 12V battery charging and maintenance. The integrated 10A charge controller efficiently manages the power output, ensuring your battery is charged safely without the risk of overcharging. It is suitable for maintaining the charge of leisure batteries in various mobile applications, providing a convenient source of supplementary power.
The panel's output is optimised for typical 12V lead-acid battery types, including gel, AGM, and flooded batteries. Its plug-and-play design allows for quick setup and connection, making it ideal for users who require flexible and easy-to-deploy solar power.
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Providing supplementary power for leisure batteries and onboard electronics during touring. |
| Boats & Marine Use | Ideal for charging 12V marine batteries and powering small electrical loads on vessels. |
| Campervans & Vans | Portable power for lighting, small appliances, and device charging during road trips. |
| Off-Grid Camping | Supplying power for remote campsites where mains electricity is unavailable. |
Built-In Protection Functions
The integrated 10A charge controller is designed to safeguard your battery and system. It includes essential protection features such as: ▶ Overcharge Protection — Prevents the battery from being overcharged, extending its lifespan. ▶ Reverse Battery Feed Protection — A built-in diode prevents current from flowing back into the solar panel from the battery during low light conditions or at night.
Common Questions
What type of battery can this panel charge?
This 60W fold-up solar panel is designed for charging 12V lead-acid batteries, including leisure, gel, and AGM types, via its integrated 10A charge controller.
Is this panel waterproof?
While the solar panels themselves are weather-resistant and suitable for outdoor use, it is generally recommended to protect the charge controller and connections from direct heavy rain or prolonged submersion to ensure longevity.
How do I connect this to my battery?
The panel is supplied with an extension cable featuring both crocodile clips and a 12V auto plug. This allows for direct and easy connection to your 12V battery terminals or a compatible 12V socket.
Installation Notes
- Position the solar panel in direct, unobstructed sunlight for maximum power generation.
- Utilise the integrated fold-away stand to angle the panels towards the sun for optimal performance throughout the day.
- Ensure all electrical connections, especially the crocodile clips, are secure and free from corrosion for efficient power transfer.
- Connect the panel exclusively to a 12V battery system.
- Periodically check the charge controller's indicator lights (if present) to monitor the charging status and ensure proper operation.
Before You Buy
- Confirm your battery system is 12V to ensure full compatibility with the integrated charge controller.
- Consider your typical daily power consumption to verify that a 60W panel is sufficient for your charging and power needs.
- Check the folded dimensions (530 x 360 x 40mm) to ensure it fits your available storage and deployment space.
- Be aware that actual power output can vary significantly based on weather conditions, sunlight intensity, panel angle, and shading.
- This product is designed for portable and supplementary power applications, not as a primary, continuous power source for large loads.
All specifications are based on manufacturer data and typical test conditions. Actual performance may vary. This product includes a two-year product warranty.
