Solar Technology 60W Flexi Solar Panel & Roof/Deck Top Kit
Solar Technology 60W Flexi Solar Panel & Roof/Deck Top Kit
SKU:751-STPVFRT060
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
60W Flexible Solar Panel & Dual Battery Charge Kit
Model STPVFRT060 & STCC10 ย |ย Marine, Campervan & Off-Grid Ready
The Solar Technology 60W Flexi Solar Panel & Roof/Deck Top Kit provides a robust and efficient power solution for a variety of mobile and off-grid applications. This comprehensive kit includes a highly durable 60W semi-flexible solar panel (STPVF060) and a versatile 10A dual battery charge controller (STCC10), along with a complete fixing kit for secure installation.
Designed for UK conditions, this system is ideal for charging leisure batteries in campervans, motorhomes, and marine vessels, as well as providing reliable power for remote cabins or sheds. Its flexible design allows for seamless integration onto curved surfaces, while the advanced charge controller ensures optimal battery health and system performance.

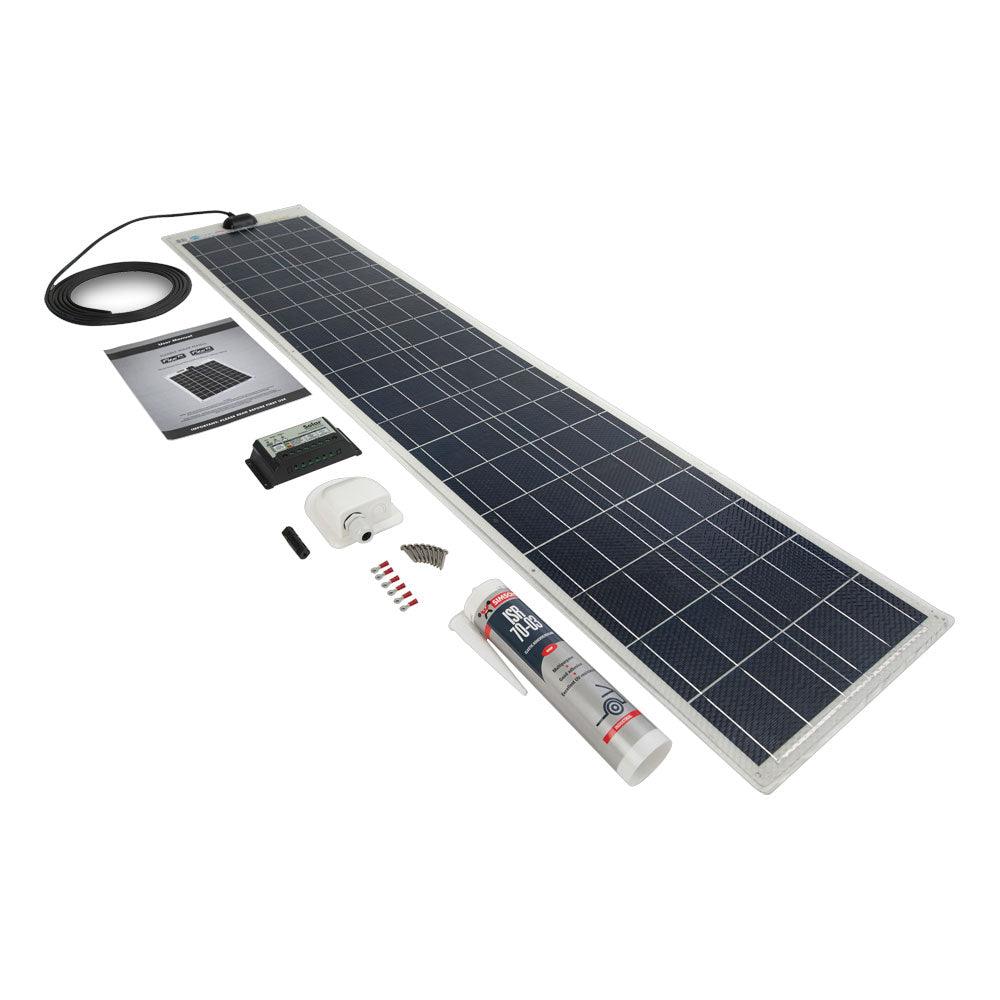

KIT INCLUDES: 60W Flexible Solar Panel, 10A Dual Battery Charge Controller, Fixing Kit (Bonding Agent & Waterproof Cable Gland).
Key Features
| โถย Durable ETFE Surface โ Features a self-healing top layer for enhanced resilience against minor abrasions and an anti-slip finish. |
| โถย Completely Waterproof Design โ Six-layer heavy-duty laminate and injected silicon junction box ensure protection in extreme weather conditions. |
| โถย Hot Spot Protection โ Integrated shading diodes within the waterproof junction box prevent heat build-up and extend panel lifespan, especially under partial shading. |
| โถย Superior Construction โ Rounded panel corners, a unique curved junction box, and strain relief for the fitted cable provide enhanced adhesion and safety. |
| โถย Dual Battery Charging โ The included 10A charge controller efficiently manages and charges two separate 12V or 24V battery banks simultaneously. |
| โถย Flexible Mounting Options โ Can be bonded to flat or slightly curved surfaces (up to 3cm curve per metre) or mechanically fixed using pre-drilled holes. |
Technical Specifications
Solar Panel (STPVF060)
| Parameter | Value |
|---|---|
| Power | 60W |
| Dimensions (L x W x D) | 1450 x 315 x 4mm |
| Weight | 3Kg |
| Amp-hours per day | 20.22Ah |
| Vmp (Max Power Voltage) | 17.8V |
| Imp (Max Power Current) | 3.37A |
| Voc (Open Circuit Voltage) | 22.1V |
| Isc (Short Circuit Current) | 3.64A |
Charge Controller (STCC10)
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12/24VDC (Automatic) |
| Battery Voltage Range | 6-36V |
| Rated Battery Current | 10A |
| Over Voltage Disconnect | 16V/32V |
| Charging Limit Voltage | 14.6V/29.2V |
| Equalize Charging Voltage | 14.6V/29.2V |
| Float Charging Voltage | 13.8V/27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Dimensions (L x W x D) | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
Charging & Output Modes
| Feature | Description |
|---|---|
| Efficient Series PWM Charging | Optimises the charging process for extended battery life and improved overall solar system performance. |
| 12V/24V Automatic Recognition | Automatically detects and adapts to either 12V or 24V battery systems, simplifying setup. |
| Unique Dual Battery Charging | Capable of charging two separate battery banks simultaneously, ideal for leisure and engine batteries. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides reliable power for leisure vehicles, easily integrating with curved rooflines. |
| Marine Vessels | Ideal for boats and yachts due to its waterproof design and ability to withstand deck conditions. |
| Off-Grid Cabins & Sheds | Powers lighting, small appliances, and charging systems in remote locations. |
| Remote Monitoring Stations | Supplies continuous power for low-power sensors and communication equipment where grid access is limited. |
Built-In Protection Functions
The included 10A dual battery charge controller features comprehensive electronic protection functions to prevent damage from installation mistakes or system faults. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection (up to 10A).
Common Questions
Can this kit charge both my leisure and engine battery?
Yes, the included 10A dual battery charge controller is specifically designed to manage and charge two separate 12V or 24V battery banks simultaneously, making it ideal for vehicles with auxiliary batteries.
Is the solar panel truly flexible?
The panel is semi-flexible, allowing it to conform to slight curves of up to 3cm per metre. This makes it suitable for mounting on curved roofs or decks without compromising performance.
What is the ETFE surface and why is it beneficial?
ETFE (Ethylene Tetrafluoroethylene) is a highly durable, self-healing top layer that protects the solar cells from minor abrasions and environmental wear. It also provides an anti-slip surface, particularly useful for marine applications.
What is included in the 'Fixing Kit'?
The fixing kit typically includes a specialised bonding agent (such as Simson ISR 70-03) and a waterproof cable gland, along with detailed installation instructions to secure the panel effectively.
Installation Notes
- The panel can be bonded to flat or slightly curved surfaces (up to 3cm curve per metre) using a suitable adhesive like Simson ISR 70-03.
- Pre-drilled holes are provided for mechanical fixing, offering an alternative or supplementary installation method.
- It is crucial to follow the recommended glue pattern (as detailed in the instructions) to ensure adequate airflow beneath the panel, preventing heat build-up and potential warping.
- Ensure the mounting surface is clean, dry, and free from contaminants before applying any bonding agent.
- Professional installation is recommended to ensure optimal performance, safety, and longevity of the system.
Before You Buy
- Verify your battery system voltage (12V or 24V) to ensure compatibility with the included charge controller.
- Assess the available mounting surface for flatness or slight curvature to ensure proper panel adhesion and installation.
- Consider your daily power consumption to confirm that the 60W output meets your energy requirements.
- Always consult the detailed installation instructions provided with the kit for specific guidance and safety information.
Specifications are based on manufacturer data and are subject to change. Always verify compatibility and installation requirements before purchase.
