Solar Technology 30W Rigid Solar Panel & Universal Fitting Kit
Solar Technology 30W Rigid Solar Panel & Universal Fitting Kit
SKU:751-STPMH30
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
30W Rigid Solar Panel & Universal Fitting Kit
STP030 Panel & STCC10 Dual Battery Charge Controller ย |ย Off-Grid & Mobile Power
The Solar Technology 30W Rigid Solar Panel & Universal Fitting Kit provides a complete solution for generating clean, reliable power in various off-grid and mobile applications. This comprehensive kit includes a robust 30W rigid solar panel (STP030), a versatile 10A dual battery charge controller (STCC10), and a universal fitting kit for straightforward installation. It's an ideal choice for maintaining battery charge and powering small electronics in campervans, motorhomes, boats, and remote cabins.
Designed for durability and ease of use, this kit offers a practical entry into solar power, ensuring your essential 12V or 24V battery systems remain charged and protected. The included charge controller intelligently manages power flow, optimising battery health and system performance.

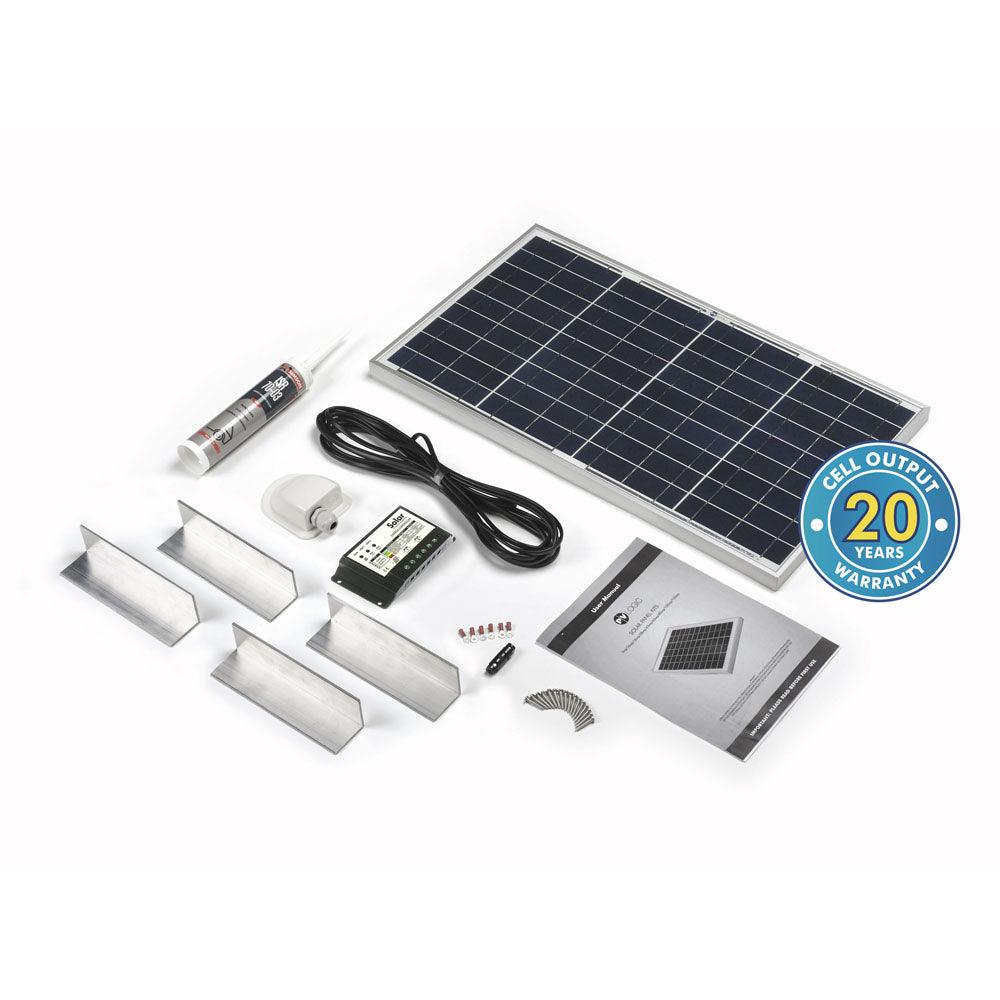

COMPLETE KIT: Includes 30W Solar Panel, 10A Dual Battery Charge Controller, and Universal Mounting Brackets.
Key Features
| โถย Efficient 30W Rigid Panel โ provides reliable power for smaller off-grid applications. |
| โถย Dual Battery Charge Controller โ intelligently charges two 12V or 24V battery banks simultaneously. |
| โถย Universal Fitting Kit Included โ offers a simple and low-cost mounting solution for various surfaces. |
| โถย Robust Aluminium Frame โ ensures durability and resilience in outdoor environments. |
| โถย PWM Charging Technology โ optimises battery life and improves overall system performance. |
| โถย Comprehensive Protection Functions โ safeguards against common electrical faults and extends component lifespan. |
Technical Specifications
Solar Panel (STP030)
| Parameter | Value |
|---|---|
| Rated Power (Pmax) | 30W |
| Open Circuit Voltage (Voc) | 22V |
| Max Power Voltage (Vmp) | 17.5V |
| Short Circuit Current (Isc) | 1.9A |
| Max Power Current (Imp) | 1.72A |
| Dimensions (L x W x D) | 660 x 380 x 25mm |
| Weight | 2.7kg |
Charge Controller (STCC10)
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12V / 24V DC (Auto) |
| Rated Battery Current | 10A |
| Battery Voltage Range | 6-36V |
| Over Voltage Disconnect | 16V / 32V |
| Charging Limit Voltage | 14.6V / 29.2V |
| Equalize Charging Voltage | 14.6V / 29.2V |
| Float Charging Voltage | 13.8V / 27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Dimensions (L x W x D) | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Net Weight | 155g |
Charging & Battery Modes
| Feature | Description |
|---|---|
| Dual Battery Charging | Unique functionality to charge two separate battery banks simultaneously, ideal for leisure and starter batteries. |
| 12V/24V Auto Recognition | Automatically detects and adapts to either 12V or 24V DC battery systems. |
| Efficient Series PWM Charging | Optimises the charging process to extend battery lifespan and enhance overall solar system performance. |
| Optimised Charging Process | Designed for long battery life and improved system efficiency, preventing overcharging and deep discharge. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Ideal for maintaining leisure battery charge and powering small appliances during travel. |
| Boats & Marine Vessels | Provides trickle charging for starter and service batteries, suitable for navigation lights and small electronics. |
| Off-Grid Sheds & Cabins | Supplies power for lighting, small communication devices, and security systems in remote locations. |
| Remote Power Systems | Suitable for electric fences, automated gates, or small pumps in garden ponds where mains power is unavailable. |
Built-In Protection Functions
The included STCC10 charge controller features comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Over Voltage Disconnect ย โขย Charge Current Protection up to 10A.
Common Questions
What can a 30W solar panel power?
A 30W panel is suitable for trickle charging 12V batteries, maintaining charge in leisure batteries, and powering very low-draw devices like LED lights or small fans in off-grid setups. It's designed for modest energy needs.
Is a charge controller necessary for this 30W panel?
Yes, for solar panels rated 20W and above, a charge controller is essential. The included STCC10 controller protects your battery from overcharging and prevents reverse current drain from the battery back to the panel at night.
Can this kit charge two batteries at once?
Yes, the included STCC10 charge controller features a unique dual battery charging function. This allows it to intelligently charge two separate 12V or 24V battery banks simultaneously, making it ideal for vehicles with both a starter and leisure battery.
What is included in the universal fitting kit?
The universal fitting kit comprises 225 x 50 x 50mm alloy L-brackets and 16 fixing screws. These components allow you to securely attach the solar panel frame to a mounting surface using a suitable adhesive (not supplied).
Installation Notes
- The universal fitting kit requires a suitable adhesive (e.g., SIKA Flex 252 or similar) for bonding to the mounting surface, which is not included and must be purchased separately.
- Ensure the mounting surface is thoroughly cleaned, dry, and structurally sound before applying adhesive and securing the brackets.
- Position the solar panel in an unshaded area to maximise sun exposure throughout the day for optimal energy generation.
- All electrical connections should be performed by a competent individual, strictly adhering to relevant wiring diagrams and safety standards.
- Verify correct polarity when connecting the solar panel, charge controller, and batteries to prevent potential damage to components.
Before You Buy
- Confirm the power requirements of your intended application to ensure the 30W panel provides sufficient energy.
- Check the nominal voltage of your battery system (12V or 24V) to ensure compatibility with the included charge controller.
- Consider the type and capacity of your batteries; the 10A charge controller is best suited for smaller to medium-sized battery banks.
- Plan your cable runs and ensure appropriate cable gauges are used for the distance and current to minimise voltage drop.
- Remember to purchase a suitable adhesive for the universal fitting kit separately, if required for your specific installation method.
Specifications are based on manufacturer data and are subject to change. Always verify compatibility and installation requirements before purchase.
