Solar Technology 20W Flexi Solar Panel & Roof/Deck Top Kit
Solar Technology 20W Flexi Solar Panel & Roof/Deck Top Kit
SKU:751-STPVFRT020
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
20W Flexi Solar Panel & Roof/Deck Top Kit
Semi-Flexible & Lightweight ย |ย Integrated 10A Dual Battery Charge Controller
The Solar Technology 20W Flexi Solar Panel & Roof/Deck Top Kit (SKU: 751-STPVFRT020) provides a compact and efficient solar power solution for various off-grid applications. This comprehensive kit includes a durable 20W semi-flexible solar panel and a 10A dual battery charge controller, making it ideal for maintaining battery health and powering small devices on the go. Designed for easy installation on curved or flat surfaces, it's a popular choice for UK campervans, motorhomes, boats, and remote cabins.
Featuring an advanced ETFE top layer, the panel offers enhanced resilience and a self-healing capacity against minor abrasions, ensuring long-term performance in challenging outdoor conditions. The included charge controller intelligently manages power flow to two batteries simultaneously, optimising charging and protecting against common electrical faults.

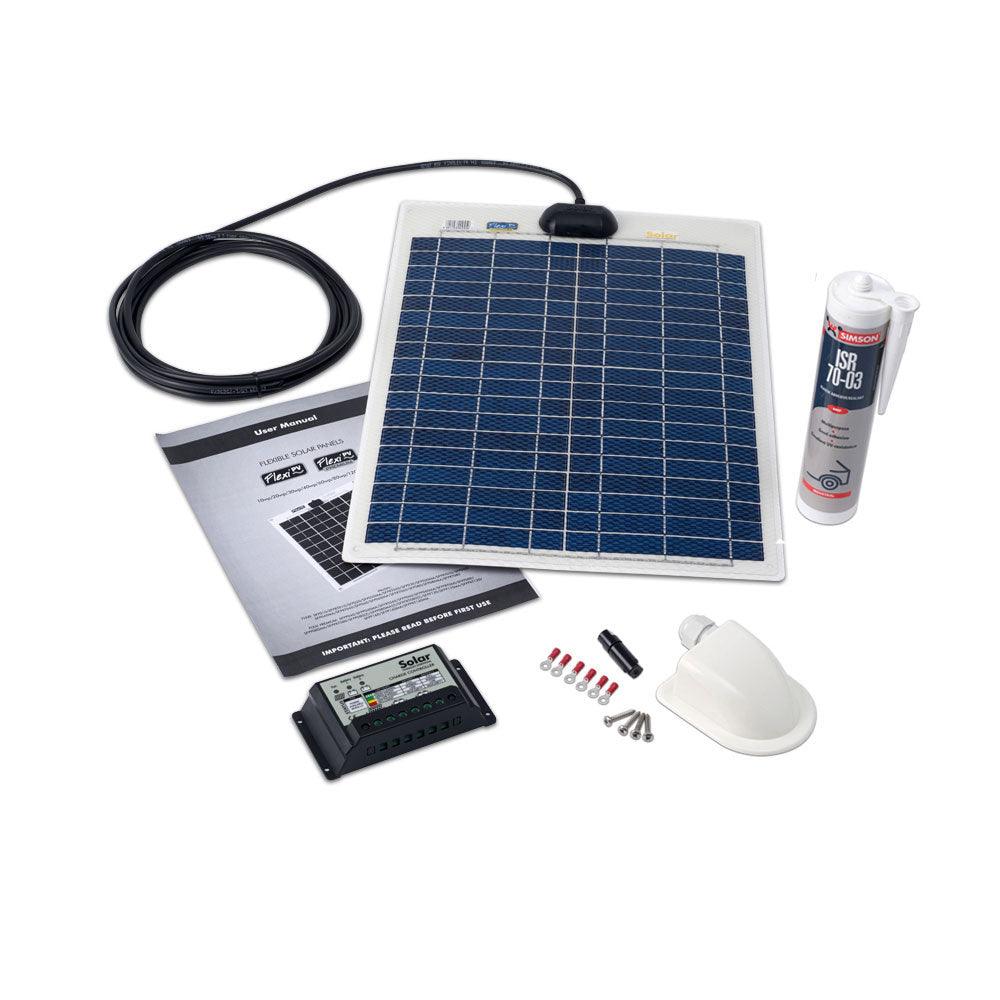

KIT CONTENTS: 20W Flexi Solar Panel, 10A Dual Battery Charge Controller, Bonding Agent, Waterproof Cable Gland, Fuse, Installation Instructions.
Key Features
| โถย Semi-Flexible Design โ Conforms to slightly curved surfaces (up to 3cm per metre) for versatile mounting options. |
| โถย ETFE Top Layer โ Provides a self-healing, anti-slip, and highly durable surface resistant to UV, chemicals, and minor abrasions. |
| โถย Fully Waterproof Construction โ Six-layer heavy-duty laminate and silicon-injected junction box ensure complete encapsulation and protection. |
| โถย Integrated 10A Dual Battery Charge Controller โ Efficiently charges and protects two independent 12V or 24V battery banks simultaneously. |
| โถย Lightweight & Compact โ At just 0.79kg and 4mm thick, it's easy to handle and install without adding significant weight. |
| โถย Superior Design Elements โ Features rounded corners, a curved junction box with strain relief, and pre-drilled holes for secure fixing. |
Technical Specifications
Solar Technology 20W Flexi Solar Panel (STPVF020)
| Parameter | Value |
|---|---|
| Power (Pmax) | 20W |
| Dimensions (L x W x H) | 475 x 345 x 4mm |
| Weight | 0.79kg |
| Amp Hours per Day (A) | 6.84 |
| Voltage at Max Power (Vmp) | 17.6V DC |
| Current at Max Power (Imp) | 1.14A |
| Open Circuit Voltage (Voc) | 21.9V |
| Short Circuit Current (Isc) | 1.23A |
Solar Technology 10A Dual Battery Charge Controller (STCC10)
| Parameter | Value |
|---|---|
| Nominal System Voltage | 12/24V DC (Auto Recognition) |
| Battery Voltage Range | 6-36V |
| Rated Battery Current | 10A |
| Over Voltage Disconnect Voltage | 16V/32V |
| Charging Limit Voltage | 14.6V/29.2V |
| Equalize Charging Voltage | 14.6V/29.2V |
| Float Charging Voltage | 13.8V/27.2V |
| Operating Temperature | -35ยฐC to +55ยฐC |
| Overall Dimensions | 135 x 70 x 35mm |
| Terminal Size | 6mmยฒ |
| Net Weight | 155g |
Charging & Output Modes
The included Solar Technology 10A Dual Battery Charge Controller (STCC10) is designed for optimal battery management in off-grid solar systems.
| Mode/Feature | Description |
|---|---|
| Dual Battery Charging | Charges two separate 12V or 24V battery banks simultaneously, ideal for leisure and engine batteries. |
| Series PWM Charging | Efficient Pulse Width Modulation (PWM) charging increases battery lifetime and improves overall system performance. |
| Automatic System Voltage Recognition | Automatically detects and adapts to 12V or 24V DC nominal system voltages. |
| Optimised Charging Process | Designed to ensure long battery life and consistent system performance through controlled charging stages. |
Typical Applications
| Application | Description |
|---|---|
| Campervans & Motorhomes | Provides supplementary power for lighting, mobile device charging, and small DC appliances on leisure vehicles. |
| Marine Vessels | Suitable for yachts and boats, offering a lightweight and waterproof solution for battery maintenance and small loads. |
| Off-Grid Cabins & Sheds | Ideal for remote locations requiring basic power for lighting or charging small electronics. |
| Portable Power Systems | Its flexibility and light weight make it suitable for temporary setups or mobile power needs. |
Built-In Protection Functions
The Solar Technology 10A Dual Battery Charge Controller is equipped with comprehensive self-diagnostics and electronic protection features to safeguard your system and batteries. These include: Reverse Current Protection ย โขย Overload Protection ย โขย Open Circuit Protection ย โขย Lightning Surge Protection ย โขย Deep Discharge Protection ย โขย Charge Current Protection up to 10A.
Common Questions
What surfaces can this flexible solar panel be mounted on?
The Solar Technology Flexi panel can be bonded to flat or slightly curved surfaces (up to 3cm curve per metre) such as painted aluminium, metal, GRP, and fibreglass using a suitable bonding agent like Simson ISR 70-03. It also features pre-drilled 4.5mm holes for optional mechanical fixing.
Can the included charge controller charge two batteries?
Yes, the STCC10 10A Dual Battery Charge Controller is specifically designed to charge two separate battery banks simultaneously, making it ideal for vehicles or boats with both a leisure battery and a starter battery.
Is the panel durable enough for outdoor use?
Absolutely. The panel features an ETFE top layer known for its high resistance to UV radiation, chemicals, and mechanical stress. It also has a self-healing property for minor abrasions and is fully encapsulated for complete waterproofing, making it robust for various outdoor environments.
Does the kit include everything needed for installation?
The kit includes the 20W flexible solar panel with a 4m cable, the 10A dual battery charge controller, bonding agent, a waterproof cable gland, a fuse, and detailed installation instructions. You will need to supply your own battery/batteries and any additional wiring beyond the pre-wired panel cable for connection to the controller and batteries.
Installation Notes
- Surface Preparation: Ensure the mounting surface is clean, dry, and free from grease or debris before applying the bonding agent.
- Airflow: When bonding the panel, follow the recommended glue pattern (detailed in instructions) to ensure adequate airflow underneath. This prevents heat build-up and potential warping.
- Cable Gland: Use the supplied waterproof cable gland to ensure a secure and watertight entry point for the panel cable into your vehicle or cabin.
- Charge Controller Placement: Position the charge controller as close as possible to the battery in a dry, protected location.
- Polarity: Always observe correct polarity (red for positive, black for negative) when connecting the solar panel, charge controller, and batteries.
- Professional Installation: If unsure about any aspect of installation, it is recommended to consult a qualified professional.
Before You Buy
- Power Requirements: Assess your daily energy needs to ensure a 20W panel is sufficient for your intended applications (e.g., lighting, mobile device charging).
- Battery Compatibility: Confirm the 10A charge controller is suitable for your battery type and capacity. It supports 12V/24V systems.
- Mounting Surface: Verify that your intended mounting surface is compatible with the panel's flexibility and bonding requirements.
- Additional Components: While a comprehensive kit, ensure you have any necessary tools, additional wiring, or battery terminals not included in the standard kit.
Please verify all specifications and compatibility requirements before purchase. Product specifications are subject to change by the manufacturer.
