RELIABILITY: Manufactured from high-grade, rust-free aluminium, these brackets are built to withstand harsh marine and off-road environments.

Key Features

• ✔ Full Adjustability: 0-90 degree tilt range.
• ✔ Heavy Duty: Lightweight yet durable rust-free aluminium.
• ✔ Universal Fit: Ideal for caravans, boats, and flat roofs.
• ✔ Waterproof Ready: Includes rubber pads for surface protection.

Technical Specs

SKU	MBRANGLE28
Material	Anodized Aluminium
Length	710mm (28 inches)
Adjustment	0° - 90° Tilt
Hardware	Stainless Steel Bolts

Surface Type	Application	Max Panel Width
Vehicle Roof	Motorhomes, Caravans, Campers	710mm
Marine Deck	Boats, Yachts, Narrowboats	710mm
Ground/Wall	Sheds, Garages, Off-grid cabins	710mm

1. Secure the fixed L-brackets to your surface using the provided rubber pads and screws.
2. Attach the adjustable arms to your solar panel frame.

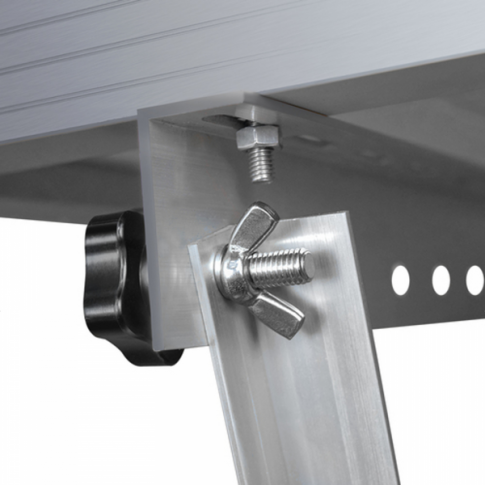

3. Connect the arms to the base brackets at your desired angle using the stainless steel wing-nuts or bolts provided.
4. Ensure all connections are tightened before travel or high-wind exposure.

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking the SKU/MPN and Cross Reference list provided above. If your solar panel has a side dimension of 71cm or less, this bracket set is a compatible fit.

Can these brackets be used for vertical wall mounting?

Yes, because the brackets are adjustable from 0 to 90 degrees, they are perfectly suitable for wall-mounted installations where you need to tilt the panel away from the wall to catch sunlight.
