Scanstrut SC-USB-F3 Flip Pro Max Dual USB-C Fast Charging Socket โ 12V/24V Marine & RV Waterproof Fast Charger
Scanstrut SC-USB-F3 Flip Pro Max Dual USB-C Fast Charging Socket โ 12V/24V Marine & RV Waterproof Fast Charger
SKU:SC-USB-F3
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

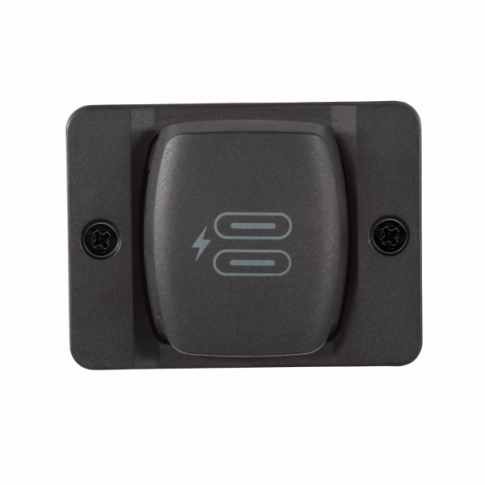

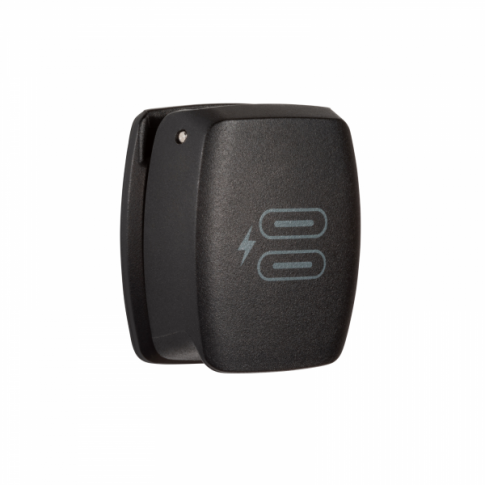

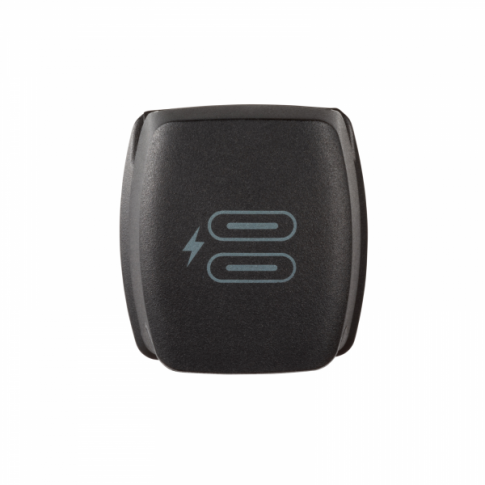

Flip Pro Max Dual USB-C Fast Charging Socket
12V/24V Marine & RV ย |ย IPX4 Waterproof ย |ย Up to 60W USB-C
The Scanstrut Flip Pro Max (SC-USB-F3) delivers next-generation dual USB-C charging in a compact, waterproof design, engineered for demanding marine and RV environments. Compatible with both 12V and 24V systems, it features two powerful USB-C ports, providing an ultra-fast charging solution for laptops, tablets, smartphones, and other high-powered devices onboard.

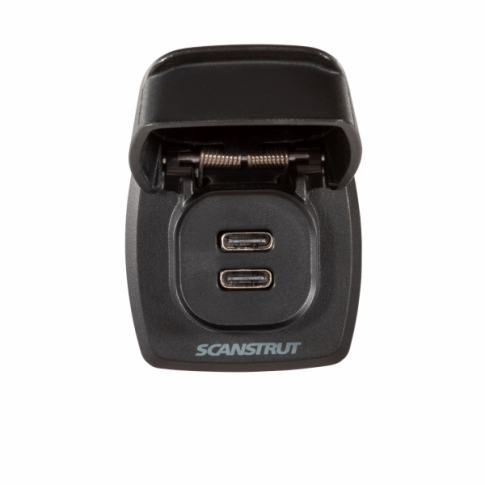

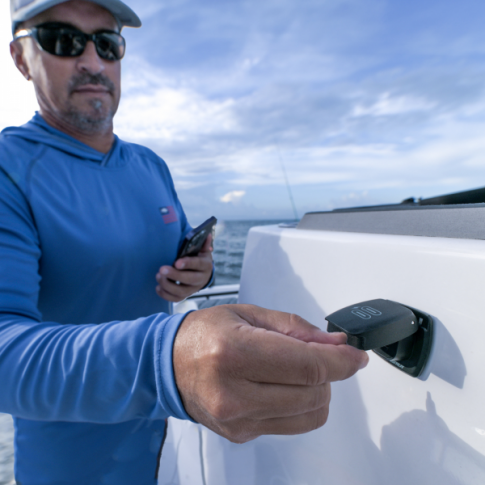

When not in use, the innovative spring-loaded cap locks shut, protecting the ports from water and dust. When charging, it flips open and securely locks cables in place, ensuring they remain protected even in challenging conditions. Built from premium marine-grade materials with a robust 316 stainless steel hinge, the Flip Pro Max is IPX4 waterproof and washdown-ready, ensuring reliable performance in any environment.
IMPORTANT NOTE: For the full 60W output per port, a 24V system is required, particularly for charging laptops. Phones charge efficiently on both 12V and 24V systems.
Key Features
| โถย Dual USB-C Ports โ Charge two devices simultaneously with high power output. |
| โถย Ultra-Fast Charging โ Delivers up to 60W per port on 24V systems, ideal for laptops and tablets. |
| โถย Marine-Grade Construction โ Built from UV-resistant materials with a 316 stainless steel hinge for exceptional durability. |
| โถย IPX4 Waterproof Rating โ Sealed against splashes and washdowns when the spring-loaded cover is closed. |
| โถย Secure Flip Cap โ Locks shut for protection and locks open to secure charging cables in rough conditions. |
| โถย Compact Installation โ Designed for easy installation using a standard ร32mm (1.25โ) hole saw, with an optional front-fit bezel included. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 10-32V DC (12V/24V systems) |
| Max Input Current | 6A (10A fuse recommended) |
| Standby Power Draw | 0.01W |
| Waterproof Rating | IPX4 (with cover closed) |
| Installation Hole Diameter | ร32mm (1.25โ) |
| Max/Min Panel Thickness | 3mm / 25mm |
| Power Connection | 2 x 6.3mm Blade Terminals |
Charging & Output Modes
| System Voltage | Output Per Port (Max) | Voltage/Current Profiles |
|---|---|---|
| 12V DC System | 36W | 5Vโ3A, 9Vโ3A, 12Vโ3A |
| 24V DC System | 60W | 5Vโ3A, 9Vโ3A, 12Vโ3A, 15Vโ3A, 20Vโ3A |
Typical Applications
| Application | Description |
|---|---|
| Marine Vessels | Ideal for yachts, powerboats, RIBs, and commercial craft requiring reliable onboard power. |
| Recreational Vehicles | Perfect for campervans, motorhomes, caravans, and RVs to keep devices charged on the go. |
| Off-Grid Systems | Suitable for remote cabins, workshops, and portable power setups where robust charging is needed. |
| Heavy Duty Vehicles | Can be integrated into trucks, agricultural machinery, and utility vehicles for convenient charging. |
Built-In Protection Functions
The Scanstrut Flip Pro Max is designed for resilience, featuring an internal anti-corrosion protective coating and UV-resistant materials to withstand harsh outdoor environments. It undergoes rigorous SCA (Safe, Certified, Approved) testing, ensuring high standards in electrical, mechanical, UV, corrosion, thermal, and waterproof categories. This charger is certified to global standards including CE ย โขย FCC ย โขย UKCA ย โขย C-Tick ย โขย ROHS ย โขย WEEE.
Common Questions
What devices can I charge with the Flip Pro Max?
The Flip Pro Max is equipped with dual USB-C ports, making it suitable for charging a wide range of modern devices including laptops, tablets, smartphones, drones, action cameras, and GPS units.
Is the charger truly waterproof?
Yes, the Scanstrut Flip Pro Max has an IPX4 rating, which means it is protected against splashing water from any direction. This rating applies when the spring-loaded cover is securely closed, making it washdown-ready.
What is the recommended fuse size for installation?
For optimal circuit protection, a 10A fuse is recommended when installing the Scanstrut Flip Pro Max.
Does it have a running light?

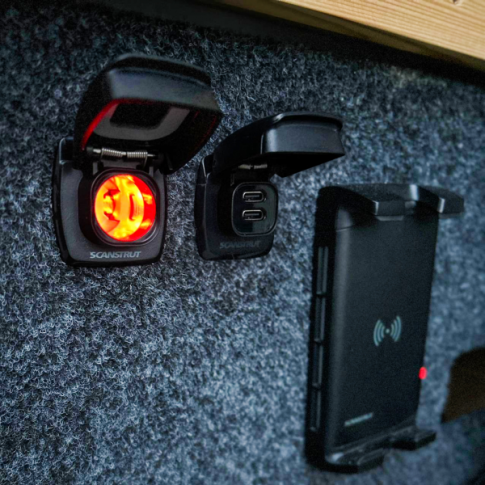

Yes, the Flip Pro Max features a low-intensity red LED running light to help locate the ports in low-light conditions.
Installation Notes
- Installation requires a ร32mm (1.25โ) hole saw for mounting into panels between 3mm and 25mm thick.

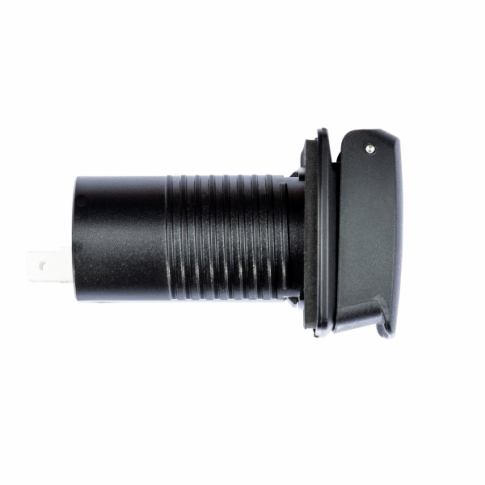

- Electrical connection is made via two 6.3mm blade terminals at the rear of the unit.
- Ensure all connections are secure and that the circuit is protected with a recommended 10A fuse.
- Mount the charger in an easily accessible location, ensuring it is protected from direct, continuous water immersion.
- An optional front-fit bezel is supplied for a clean finish, especially where rear access is limited.
Before You Buy
- Verify your vessel's or vehicle's electrical system voltage (12V or 24V) to understand the maximum charging output available for your devices.
- Ensure you use high-quality USB-C cables, ideally those supplied with your devices, to maximise charging performance.
- Confirm the thickness of your mounting panel is within the 3mm to 25mm range for proper installation.
- If you are unsure about electrical installations, it is always recommended to consult a qualified marine or RV electrician.
All specifications are based on manufacturer data and are subject to change. Please verify compatibility before purchase. Scanstrut offers a 3-year warranty on this product.
