Scanstrut DS-HSL-01 Horizontal Cable Seal
Starlink Compatible | IP68 Waterproof | UV-Stable Plastic | Grey Finish

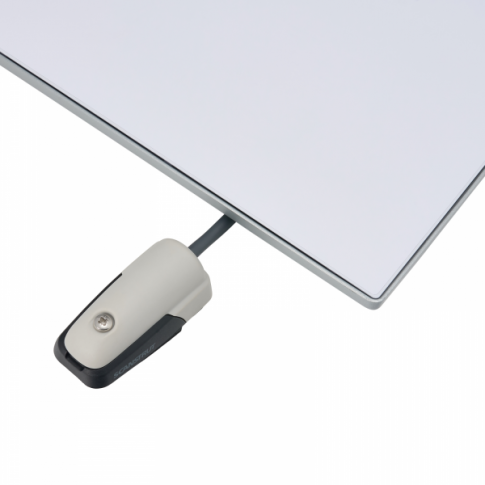

The Scanstrut DS-HSL-01 is a robust horizontal cable seal engineered to provide a secure and 100% watertight entry point for cables through decks, bulkheads, or panels. Designed with compatibility in mind, it is ideal for Starlink, NMEA, and RJ45 cables and connectors, ensuring reliable performance in demanding outdoor and marine environments.
Constructed from premium UV-stable, high-impact plastic, this low-profile cable gland offers exceptional durability and resistance to harsh weather conditions. Its innovative design facilitates quick and easy installation, even allowing cables with pre-attached connectors to pass through without re-termination.
WATERTIGHT INTEGRITY: Guaranteed IP68 rating ensures complete protection against water ingress for long-term reliability.
Key Features
| ▶ Starlink & Multi-Cable Compatibility — Designed for Starlink (Gen 3 Performance, Enterprise, Standard, Mini), NMEA, and RJ45 cables, accommodating various system needs. |
| ▶ IP68 Watertight Seal — Provides a 100% guaranteed watertight seal, crucial for marine, vehicle, and outdoor installations. |
| ▶ UV-Stable High-Impact Plastic — Manufactured from premium, hard-wearing materials for long-term outdoor performance and resistance to UV degradation. |
| ▶ Easy Installation with Captive Nuts — Ensures a fast, secure, and reliable mounting process, allowing for repeat fitting if required. |
| ▶ Split Pre-Drilled Bungs Included — Facilitates installation without the need to cut and re-terminate cables with pre-attached connectors. |
| ▶ Low-Profile & Impact-Resistant Design — Offers a discreet, clean finish and added protection against physical impact and water ingress. |
| ▶ No Messy Sealant Required — Designed for a clean installation without the need for additional sealant on bungs. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DS-HSL-01 |
| Manufacturer | Scanstrut |
| Product Type | Horizontal Cable Seal |
| Material | UV-Stable High-Impact Plastic |
| IP Rating | IP68 (100% Watertight) |
| Cable Diameter Range | 2mm – 8mm |
| Max Connector Size | 16mm |
| Height | 29mm |
| Length | 88mm |
| Width | 44mm |
| Colour | Grey |

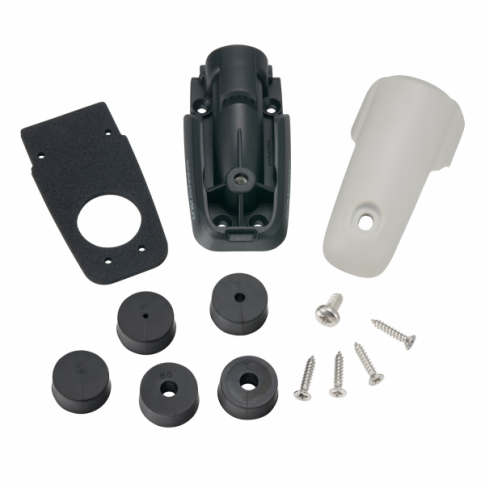

| Included Bungs | 2-3mm, 4-5mm, 6-7mm, 7-8mm, Self-Drill |
Typical Applications
| Application | Description |
|---|---|
| Starlink Systems | Secure and watertight routing for Starlink Performance (Gen 3), Enterprise (Gen 3), Standard (Gen 3), and Mini cables on various surfaces. |
| Marine & Vehicle Installations | Ideal for routing cables on boats, caravans, motorhomes, and other vehicles where a robust, waterproof seal is essential. |
| Rooftop Electronics | Suitable for solar panel cables, light bars, general lighting, and other electronic installations on rooftops. |
| NMEA & RJ45 Networks | Provides a clean and protected cable entry for NMEA and RJ45 network cables and connectors. |
Built-In Protection Functions
The Scanstrut DS-HSL-01 cable seal is engineered for maximum durability and protection. It features an IP68 rating, guaranteeing a 100% watertight seal against dust and prolonged immersion in water, making it suitable for the most challenging outdoor and marine environments. Constructed from UV-stable, high-impact plastic, it resists degradation from sunlight exposure and offers robust protection against physical impacts. Its low-profile design further enhances impact resistance and reduces the risk of snagging.
Common Questions
What types of cables can the DS-HSL-01 seal?
This cable seal is compatible with a wide range of cables, including Starlink (Performance Gen 3, Enterprise Gen 3, Standard Gen 3, Mini), NMEA, and RJ45 cables. It accommodates cable diameters from 2mm to 8mm.
Can I install this cable seal without cutting off connectors?

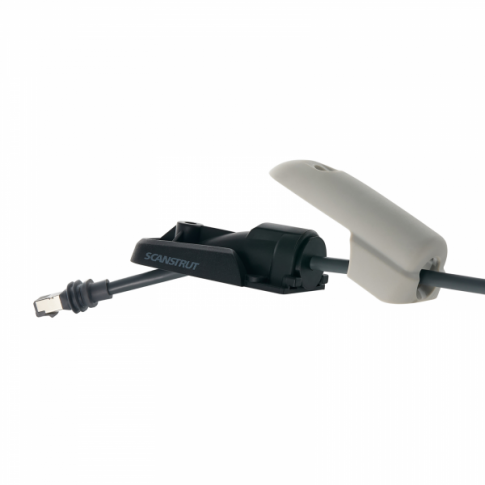

Yes, the Scanstrut DS-HSL-01 includes split pre-drilled bungs that allow cables with pre-attached connectors (up to 16mm diameter) to pass through the seal, eliminating the need for re-termination during installation.
What does the IP68 rating mean for this product?
An IP68 rating signifies that the cable seal is completely protected against dust ingress and can withstand continuous immersion in water beyond 1 meter. This ensures a reliable and watertight seal in harsh outdoor and marine conditions.
Is this cable seal suitable for solar panel installations?
Absolutely. The DS-HSL-01 is ideal for routing solar panel cables through vehicle roofs or other surfaces, providing a durable and watertight entry point for your renewable energy setup.
Installation Notes
- Ensure the mounting surface is clean, flat, and free from debris before installation to achieve an optimal seal.
- Use appropriate fasteners for your specific mounting surface (e.g., screws for wood, bolts for metal). Fixing hardware is typically included.
- Carefully select the correct bung size for your cable diameter (2-8mm) to ensure a snug, watertight fit.
- For cables with pre-attached connectors, utilise the split bungs to avoid cutting and re-terminating.
- Always follow the manufacturer's detailed installation instructions provided with the product for best results.
Before You Buy
- Verify your cable diameter falls within the 2mm to 8mm range for proper sealing.
- Confirm your cable connectors are no larger than 16mm in diameter if you intend to use the split bungs without re-termination.
- Consider the mounting surface and ensure it is suitable for screw-mount installation.
- Review the dimensions (88mm Length x 44mm Width x 29mm Height) to ensure it fits your intended installation area.
- For any specific application, consult the manufacturer's guidelines or a qualified installer.
Always verify product specifications and compatibility with your existing system components before purchase. Specifications are subject to change by the manufacturer.
