Scanstrut DS-HSL-01-BLK Starlink Compatible Horizontal Cable Seal
Waterproof Cable Gland | IP68 Rated | UV-Stable Plastic

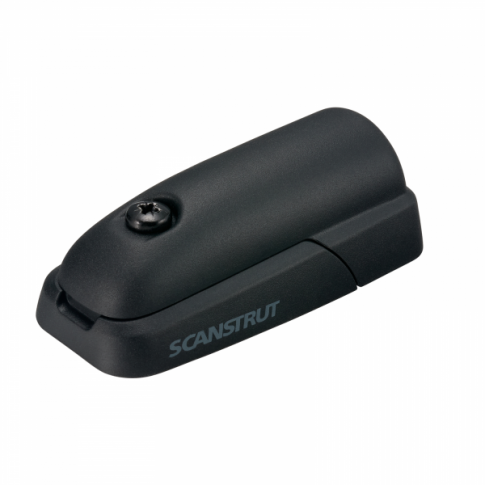

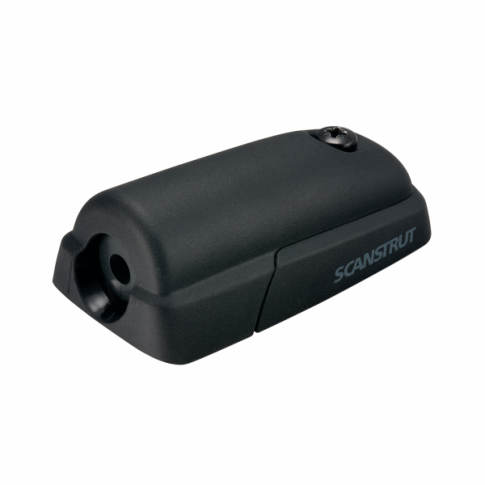

The Scanstrut DS-HSL-01-BLK is a robust horizontal cable seal engineered for secure and waterproof cable entry, specifically designed for Starlink, NMEA, and RJ45 cables and connectors. This low-profile unit ensures a clean, professional finish and reliable long-term performance in demanding outdoor and marine environments.
Manufactured from premium UV-stable, high-impact plastic, this cable gland is built to withstand harsh weather conditions, providing a guaranteed 100% watertight seal with its IP68 rating. Its thoughtful design allows for quick and easy installation without the need for messy sealants, making it an ideal solution for routing cables through roofs, decks, bulkheads, or panels.
KEY COMPATIBILITY: Designed for Starlink (Gen 3 Performance, Enterprise, Standard, Mini), NMEA, and RJ45 cables with diameters from 2-8mm and connectors up to 16mm.
Key Features
| ▶ Starlink & Multi-Cable Compatibility — Securely routes Starlink, NMEA, and RJ45 cables and connectors. |
| ▶ IP68 Watertight Seal — Guarantees 100% waterproof protection for complete peace of mind in harsh environments. |
| ▶ UV-Stable High-Impact Plastic — Constructed from durable, hard-wearing, marine-grade materials for long-term outdoor performance. |
| ▶ Quick & Easy Installation — Features captive nuts for fast, secure mounting and split pre-drilled bungs to avoid re-terminating cables. |
| ▶ Clean, Low-Profile Finish — Eliminates the need for messy sealant on bungs, providing a discreet and impact-resistant cable entry point. |

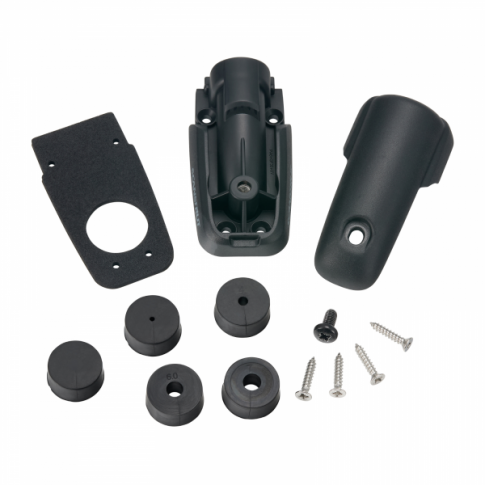

| ▶ Flexible Bung Options — Includes multiple pre-drilled bungs (2-3mm, 4-5mm, 6-7mm, 7-8mm) and a blank self-drill bung for custom cable sizes. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | DS-HSL-01-BLK |
| Material | UV-Stable High-Impact Plastic |
| Waterproof Rating | IP68 (100% Watertight) |
| Cable Diameter Compatibility | 2-8mm |
| Maximum Connector Diameter | 16mm |
| Length | 88mm |
| Width | 44mm |
| Height | 29mm |
| Colour | Black |
| Included Bungs | 2-3mm, 4-5mm, 6-7mm, 7-8mm, Self-Drill |
Typical Applications
| Application Area | Description |
|---|---|

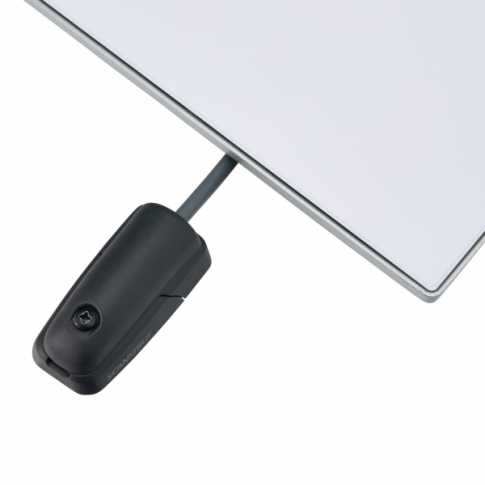

| Starlink Systems | Ideal for routing Starlink cables through vehicle roofs (RVs, campervans, overland vehicles), boat decks, or building bulkheads, maintaining a watertight seal. |
| Marine Electronics | Ensures waterproof cable entry for NMEA networks, radar, GPS, and other marine electronics on boats and yachts. |
| Vehicle Rooftop Electronics | Suitable for solar panel cables, light bars, lighting, and other rooftop electronics on work trucks, agricultural vehicles, and trailers. |
| General Outdoor Cable Routing | Provides a clean and reliable solution for routing various RJ45 and other low-voltage cables through exterior surfaces. |
Built-In Protection Functions
The Scanstrut DS-HSL-01-BLK is designed for durability and protection. It features an IP68 rating, guaranteeing a 100% watertight seal against water ingress and dust. The construction uses UV-stable high-impact plastic, ensuring resistance to degradation from sunlight and physical impacts, making it suitable for long-term outdoor exposure in demanding environments. Its low-profile design also offers additional physical protection to the cable entry point.
Common Questions
What types of cables can the DS-HSL-01-BLK accommodate?
This cable seal is specifically designed for Starlink (Gen 3 Performance, Enterprise, Standard, Mini), NMEA, and RJ45 cables. It can accommodate cables with diameters ranging from 2mm to 8mm and connectors up to 16mm.
Is this cable seal suitable for marine or outdoor use?
Yes, absolutely. The Scanstrut DS-HSL-01-BLK is manufactured from premium UV-stable, high-impact plastic and boasts an IP68 rating, ensuring it is 100% watertight and built for long-term outdoor performance in demanding marine and other harsh environments.
Do I need to cut and re-terminate my cable connectors for installation?
No, one of the key benefits of this seal is the inclusion of split pre-drilled bungs. These allow cables with connectors already attached to pass through the seal, significantly reducing installation time and avoiding the need for connector re-termination.
Is additional sealant required for the bungs?
No, the design of the Scanstrut DS-HSL-01-BLK ensures a clean, watertight seal without the need for messy sealants on the bungs.
Installation Notes
- Ensure the mounting surface is clean, flat, and free from obstructions before drilling.
- Carefully select the appropriate bung size for your cable diameter (2-8mm) to ensure a snug, watertight fit.
- Use the provided fixing hardware and follow the manufacturer's installation instructions for optimal performance and seal integrity.
- For applications where cables with pre-attached connectors are used, utilise the split pre-drilled bungs to avoid cutting and re-terminating.
Before You Buy
- Cable Diameter: Verify your cable's outer diameter falls within the 2-8mm range for proper sealing.
- Connector Size: Confirm your cable's connector diameter is no more than 16mm to pass through the seal.
- Mounting Surface: Consider the material and thickness of your intended mounting surface (e.g., roof, deck, bulkhead) to ensure compatibility with screw mounting.
- Application Needs: Ensure this horizontal cable seal meets the specific requirements for your Starlink, NMEA, RJ45, or other rooftop electronics installation.
Always verify product specifications and compatibility with your specific system requirements before purchase and installation. Manufacturer specifications are subject to change.
