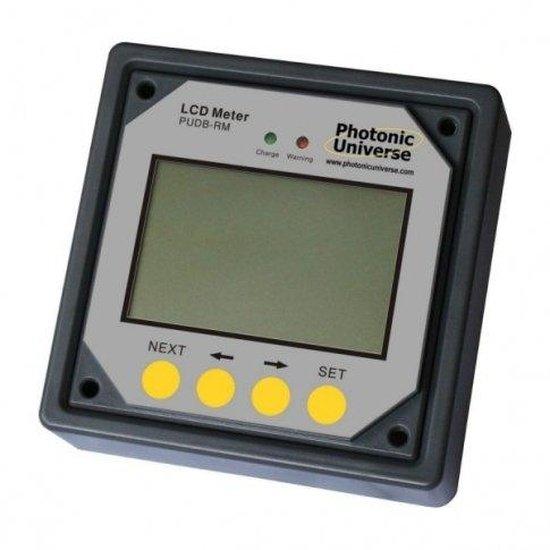

Remote Meter / Display for Photonic Universe Dual Battery Solar Charge Controllers
PUDB-RM | For 10A & 20A DB1024/DB2024 Series | 12V/24V Systems
Gain complete visibility and control over your dual battery solar system with the Photonic Universe PUDB-RM Remote Meter / Display. Specifically engineered for Photonic Universe 10A and 20A dual battery charge controllers (DB1024 and DB2024 series), this essential accessory delivers crucial real-time insights, enabling you to monitor and manage your power efficiently from a distance. It provides peace of mind by showing your batteries are performing optimally, helping to extend their lifespan and ensure reliable energy whenever needed.
Ideal for 12V/24V solar systems utilising two batteries, this high-quality remote display offers comprehensive monitoring capabilities. It seamlessly integrates with your existing Photonic Universe dual battery solar charge controller via the included 10-meter RJ45 cable, providing immediate access to critical charging data and system parameters.
COMPATIBILITY NOTE: Designed exclusively for Photonic Universe 10A and 20A dual battery charge controllers (DB1024 and DB2024 series).
Key Features
| ▶ Comprehensive Monitoring — Real-time data for two batteries and solar panels. |
| ▶ Photonic Universe Specific — Seamlessly integrates with DB1024 & DB2024 series controllers. |
| ▶ 10-Meter RJ45 Cable — Included for flexible, plug & play installation. |
| ▶ Flexible Display Modes — Automatic 3-second data rotation or user-selected specific data views. |
| ▶ Intuitive Navigation — Four front panel buttons for easy data access. |
| ▶ Temperature Monitoring — Supports internal controller sensor or optional external sensor. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PUDB-RM |
| Compatibility | Photonic Universe 10A & 20A Dual Battery Controllers (DB1024, DB2024 series) |
| System Voltage | 12V/24V (as supported by controller) |
| Rated Voltage (Display) | 12V |
| Self-Consumption | 17-23mA |
| Operating Temperature | -40°C to +60°C |
| LCD Operating Temperature | -10°C to +40°C |
| Humidity Tolerance | 0-100% |
| Dimensions | 11 x 11 x 4 cm |
| Weight | 150g (without cable) |
| Cable Length | 10 meters (RJ45) |
System Monitoring Capabilities
The Photonic Universe PUDB-RM remote meter provides detailed real-time data to help you understand and manage your dual battery solar system effectively. Key parameters displayed include:
| Parameter | Description |
|---|---|
| Battery Voltage | Real-time voltage readings for both primary and secondary batteries. |
| Solar Panel Data | Current solar panel voltage, current, and maximum recorded values. |
| Battery State of Charge | Current state of charge (SoC) and accumulated capacity for each battery. |
| Min/Max Voltages | Recorded minimum and maximum voltages for each battery, aiding in performance analysis. |
| Charge Ratio Split | Detailed breakdown of how charge is distributed between the two batteries. |
| Charging Frequency | Displays the frequency of charging pulses from the controller. |
| Temperature | Temperature readings from the controller's inbuilt sensor or an optional external sensor. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Vehicles | Caravans, motorhomes, boats, and campervans with dual battery setups for leisure and engine starting. |
| Remote Cabins & Sheds | Monitoring power in isolated solar installations where two batteries are used for reliability. |
| Small Business Systems | Ensuring reliable power for critical equipment or lighting in small off-grid commercial setups. |
| Backup Power Systems | Observing battery health and charge status for essential backup power solutions. |
Common Questions
What charge controllers is this remote meter compatible with?
It is specifically designed for Photonic Universe 10A and 20A dual battery solar charge controllers (DB1024 and DB2024 series).
How long is the connection cable?
The remote meter comes with a generous 10-meter RJ45 cable, allowing for flexible installation and placement.
Can I monitor temperature with this display?
Yes, it can display temperature readings from your charge controller's inbuilt temperature sensor or an optional external temperature sensor for enhanced accuracy.
Is installation complicated?
No, it features a simple plug & play installation. You just connect the included RJ45 cable to the designated socket on your compatible charge controller.
Installation Notes
- Ensure your existing charge controller is a compatible Photonic Universe 10A or 20A dual battery model (DB1024 or DB2024 series).
- Connect the included 10-meter RJ45 cable to the designated remote meter socket on your charge controller.
- Mount the display in your desired location using the provided wall mounting board with pre-drilled holes.
- Refer to the detailed user manual for complete setup instructions and operational guidance.
Before You Buy
- Verify that your existing charge controller is a Photonic Universe 10A or 20A dual battery model (DB1024 or DB2024 series).
- Confirm your solar system operates at either 12V or 24V.
- Consider the 10-meter cable length to ensure it reaches your desired mounting location for the display.
- Please note that this unit is a remote display and does not function as a charge controller itself.
Please verify all specifications and compatibility with your existing solar system components before purchase. Product details are subject to change by the manufacturer.
