RELIABILITY: Built with high-contrast LCD technology and durable housing to withstand the vibrations and temperature fluctuations of automotive and marine environments.

Key Features

• ✔ Real-Time Data: Monitor Source and Target battery voltages.
• ✔ Full Diagnostics: Track charging current (A) and solar power (W).
• ✔ Plug & Play: Includes 3m RJ45 communication cable.
• ✔ User-Friendly: 3-button interface for easy parameter cycling.

Technical Specs

Working Voltage	12V / 24V / 36V / 48V
Cable Length	3 Metres
Connection Type	RJ45 (8-pin)
Display	Backlit LCD
Power Consumption	Low Draw (System Powered)

System Type	Device Application	Notes
DC-to-DC Chargers	Campervan/RV Dual Battery	Displays Starter vs Leisure battery health.
Solar Controllers	Off-Grid PV Systems	Real-time Wattage and Ampere output.
Marine Systems	Boats and Yachts	Monitor battery bank charging while at sea.

1. Connect the RJ45 cable to the "Remote" port on your DC-DC charger or solar controller.
2. Route the 3m cable to your desired mounting location.
3. Flush mount or surface mount the LCD panel using the integrated screw holes.
4. The unit will automatically power on once the main charging system is active.

Is this a genuine original part?

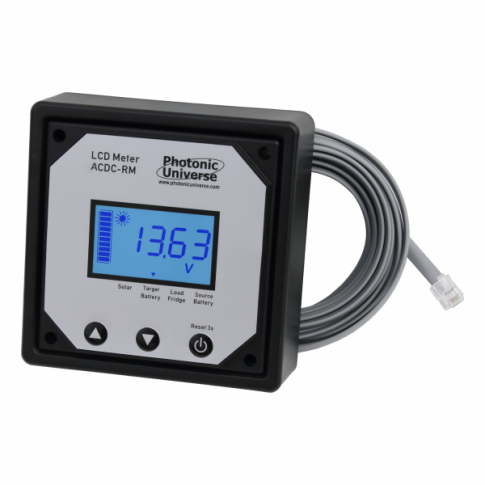

This is a premium quality solarika / Aftermarket replacement part, designed to match the technical specifications of the original Photonic Universe ACDC-RM meter.

How do I know if it is compatible?

This meter is compatible with most DC-DC chargers and solar controllers that feature a standard 8-pin RJ45 communication port and use the RM communication protocol. Please check your manual for "Remote Meter Support".

Does the display stay on all the time?

The display remains active while there is power to the charging system. The backlight may dim or turn off after a period of inactivity to conserve energy in your battery bank.
