Pair of 3-to-1 MC4 cable assemblies for solar panels and photovoltaic systems
Pair of 3-to-1 MC4 cable assemblies for solar panels and photovoltaic systems
SKU:321MC4A
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Pair of 3-to-1 MC4 Cable Assemblies
Parallel Solar Panel Connection | 6mm² Cable | Weatherproof Design

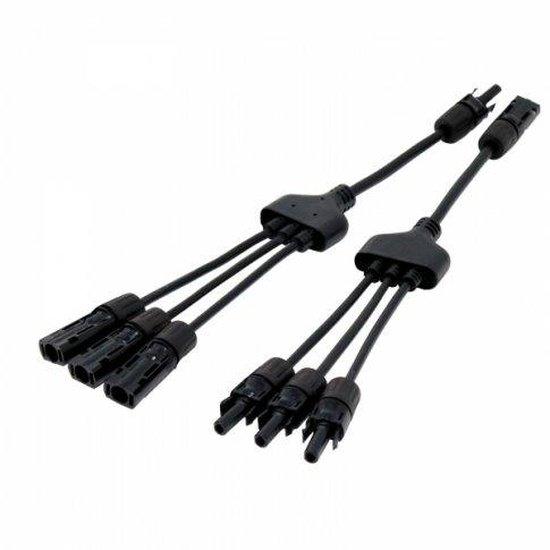

This pair of 3-to-1 MC4 cable assemblies from Photonic Universe is specifically designed for connecting solar panels within photovoltaic systems. Each assembly facilitates the parallel connection of three solar panels, consolidating their output into a single string. The pair includes one assembly with three male inputs and one female output, and another with three female inputs and one male output, ensuring correct polarity for your solar array.
Ideal for expanding existing solar setups or building new ones, these cable assemblies provide a robust and efficient solution for managing multiple panel connections, particularly where 3-to-1 MC4 junctions are required for system optimisation.
IMPORTANT NOTE: Always ensure correct polarity and secure connections for optimal system performance and safety.
Key Features
| ▶ Parallel Connection — Efficiently combine the output of three solar panels into one string. |
| ▶ Universal MC4 Compatibility — Designed to fit Photonic Universe and most standard MC4 solar panels. |
| ▶ Weatherproof Design — Fully waterproof connectors ensure reliable outdoor use in all conditions. |
| ▶ Durable Construction — Built to withstand harsh outdoor environments for long-lasting performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Solar Cable Cross Section | 6mm² |
| Cable Connector Type | MC4 |
| Configuration | 3-to-1 (Pair) |
| Manufacturer | Photonic Universe |
| Product Type | Connectors and Plugs |
| SKU | 321MC4A |
Typical Applications
| Application | Description |
|---|---|
| Parallel Panel Linking | Connect three solar panels in parallel to increase the total current output of your solar array. |
| Complex PV Systems | Integrate into custom solar arrays requiring 3-to-1 junctions for efficient wiring. |
| Off-Grid Installations | Ideal for robust and reliable connections in remote or standalone solar power systems. |
| Grid-Tied Systems | Suitable for residential and commercial grid-connected solar arrays where panel grouping is needed. |
Safety & Durability Features
These Photonic Universe 3-to-1 MC4 cable assemblies are engineered for reliable outdoor performance. They feature a fully waterproof design, ensuring protection against moisture and environmental elements. • The durable construction is built to withstand the rigours of outdoor photovoltaic installations, contributing to the long-term integrity and safety of your solar system connections.
Common Questions
What is a 3-to-1 MC4 cable assembly used for?
It allows you to connect three solar panels in parallel to a single input, typically to increase the total current output of your solar array while maintaining the system voltage.
Are these connectors compatible with all solar panels?
They are compatible with Photonic Universe solar panels and most other solar panels that use standard MC4 connectors. They are not compatible with other connector types such as MC3.
How do I ensure a secure connection?
Always ensure the male and female connectors are fully seated and clicked into place. Verify correct polarity before making final connections to your inverter or charge controller to prevent damage.
Can these be used outdoors?
Yes, these MC4 cable assemblies are designed to be fully waterproof and durable, making them suitable for continuous outdoor use in various weather conditions.
Installation Notes
- Ensure correct polarity when connecting solar panels to avoid system damage.
- Always disconnect power from the solar array before making or breaking any connections.
- Verify all connections are fully seated and secure to prevent loose contacts and potential arcing.
- For complex solar installations, it is recommended to consult a qualified electrician or solar professional.
Before You Buy
- Confirm that your existing solar panels utilise standard MC4 connectors for compatibility.
- Verify that the 6mm² cable cross-section meets the requirements of your solar system design.
- Ensure the 3-to-1 parallel configuration aligns with your specific solar array wiring needs.
- Consider the total current output of your parallel panels to ensure compatibility with your inverter or charge controller.
Always verify product specifications and compatibility with your existing solar equipment before purchase. Consult installation guides or a professional for system design and setup.
