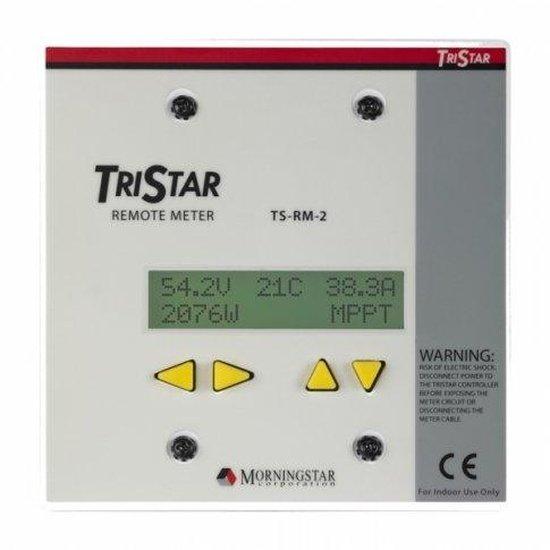

Morningstar TriStar Remote LCD Digital Meter
Model TS-RM-2 | For All TriStar Solar Charge Controllers
The Morningstar TriStar Remote LCD Digital Meter (TS-RM-2) is an advanced accessory designed to provide comprehensive monitoring and diagnostic information for your Morningstar TriStar series solar charge controller. Ideal for UK homeowners, off-grid users, and installers, this remote meter allows you to conveniently view vital system data from a distance, enhancing the management of your solar power setup.
With its clear backlit LCD and intuitive navigation, the TS-RM-2 displays a full range of operating parameters, logged data, and system status, making it easier to ensure optimal performance and troubleshoot any issues. It comes with a generous 30-meter cable for flexible installation in caravans, motorhomes, boats, or fixed installations where the controller is not easily accessible.
COMPATIBILITY NOTE: Designed exclusively for use with all Morningstar TriStar series solar charge controllers.
Key Features
| ▶ Remote Monitoring & Control — Access real-time system data and initiate manual functions from a convenient location. |
| ▶ Broad TriStar Compatibility — Works seamlessly with all TriStar, TriStar MPPT, and TriStar MPPT 600V series controllers. |
| ▶ Clear Backlit LCD — Features a 2 x 16 character display with backlighting for easy readability in various lighting conditions. |
| ▶ Multi-Language Support — View information in English, French, German, Portuguese, or Spanish. |
| ▶ Simple Navigation — Four intuitive pushbuttons for straightforward menu access and data browsing. |
| ▶ System Expandability — Monitor up to 15 TriStar controllers when used with an optional Morningstar MeterHub. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TS-RM-2 |
| Compatibility | All TriStar Series Controllers |
| Self-Consumption | 7.5 mA / 42.5 mA (backlight on) |
| Operating Temperature | -40°C to +60°C |
| Connection | RJ-11 (6-pin) with 30m cable |
| Mounting | Flush mount, wall plate included |
| Dimensions (Mounting Plate) | 116 x 116 mm (4.56 x 4.56 in) |
| Weight (without cable) | 180 g (0.4 lb) |
Monitoring & Display Functions
The Morningstar TS-RM-2 provides a clear overview of your solar system's performance and status. It displays a wide range of real-time and logged data, enabling users to keep track of critical operational parameters.
| Parameter | Description |
|---|---|
| Battery Voltage | Real-time battery voltage readings, including minimum and maximum daily values. |
| Charge Current | Current flowing into the battery from the solar array. |
| State of Charge (SOC) | Indication of battery charge level. |
| Charge Priority & Stage | Displays the active charging stage (e.g., Bulk, Absorption, Float) and charge mode. |
| System Status & Faults | General operational status, alarms, and fault indicators for easy troubleshooting. |
| Logged Data | Includes daily charge Ah, load Ah, and battery Wh for historical analysis. |
Typical Applications
The Morningstar TS-RM-2 remote meter is a versatile tool for various solar power installations, providing essential monitoring capabilities where the charge controller is not directly visible.
| Application | Description |
|---|---|
| Off-Grid Cabins & Homes | Remote monitoring of solar systems in isolated or hard-to-reach locations. |
| Caravans & Motorhomes | Convenient access to solar charge data from inside the vehicle's living area. |
| Marine Vessels | Monitoring battery and solar performance on boats and yachts. |
| Small Business Systems | Centralised monitoring for multiple TriStar controllers in larger installations (with MeterHub). |
Design & Durability
The Morningstar TS-RM-2 is built for reliability and designed to withstand demanding environments. It features a wide operating temperature range of -40°C to +60°C, ensuring consistent performance in various climates. The meter is CE and RoHS compliant, and ETL Recognized Component certified, reflecting its adherence to international safety and environmental standards. Its robust construction and conformal coating on the circuit board enhance durability and protection against humidity.
Common Questions
What TriStar controllers is this meter compatible with?
The TS-RM-2 is compatible with all Morningstar TriStar series solar charge controllers, including the original TriStar (TS-series), TriStar MPPT (TS-MPPT series), and TriStar MPPT 600V series.
How long is the cable supplied with the meter?
The Morningstar TS-RM-2 comes with a 30-meter (98.4 feet) RJ-11 communication cable, allowing for flexible remote mounting away from your charge controller.
Can I monitor multiple TriStar controllers with one TS-RM-2?
Yes, in multi-controller systems, the TS-RM-2 can be networked using an optional Morningstar MeterHub to display individual controller data and aggregate system data for up to 15 TriStar controllers.
Can this meter be used to program the TriStar controller?
No, the TS-RM-2 is designed for displaying information and initiating manual modes such as equalization. It is not capable of programming custom voltage setpoints or other advanced configurations, which are typically set via DIP switches on the controller itself.
Installation Notes
- Mount the meter in a dry, protected location, away from direct sunlight or extreme temperatures, ensuring good ventilation.
- Ensure the 30-meter RJ-11 cable is routed safely, avoiding sharp bends, pinch points, or areas with potential electrical interference.
- Connect the RJ-11 cable directly to the designated MeterBus port on your Morningstar TriStar charge controller.
- Refer to the official Morningstar instruction manual for detailed mounting, connection, and operational guidelines.
Before You Buy
- Verify that you own a Morningstar TriStar series solar charge controller (TS, TS-MPPT, or TS-MPPT-600V).
- Consider the 30-meter cable length to ensure it reaches your desired remote monitoring location.
- For monitoring multiple TriStar controllers, note that a Morningstar MeterHub (sold separately) is required.
- Ensure the chosen mounting location is suitable for the meter's dimensions (116 x 116 mm).
Always verify product specifications and compatibility with your existing system components before purchase. This Morningstar TS-RM-2 meter is covered by a 5-year manufacturer warranty.
