Morningstar EcoBoost MPPT

The EcoBoost MPPT? solar charge controller brings Morningstar's proprietary TrakStar Technology? to their Essentials controllers and accessories.

The EcoBoost controllers automatically detect 12 or 24 V system configuration, are highly efficient and accurate and designed to ensure that batteries attain a complete state of charge.
They are also sophisticated load controllers. Using this feature to manage DC power consumption protects the batteries from over discharge and helps ensure long term system reliability. Small DC loads can be powered directly from the EcoBoost by way of two USB charging ports

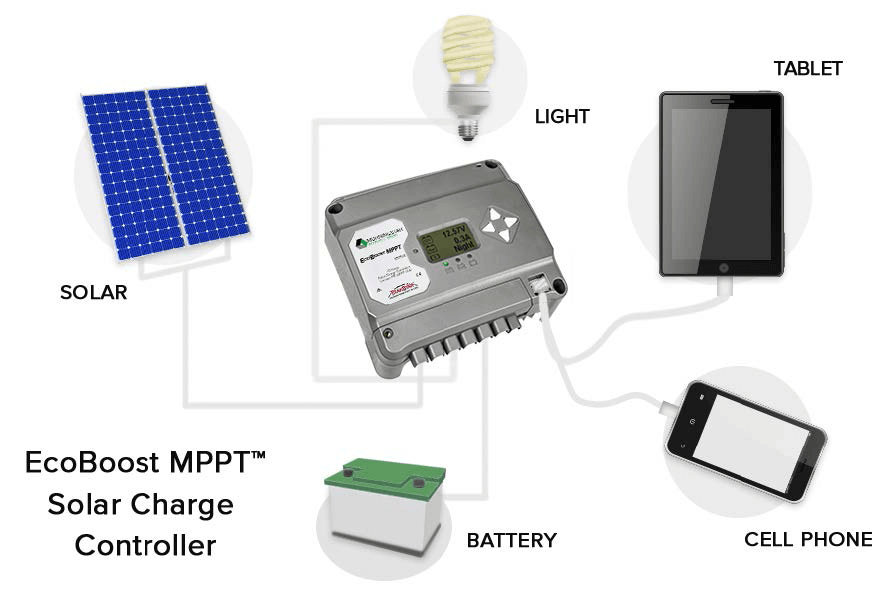

Morningstar EcoBoost controllers act as the central brain of PV powered DC electrical systems up to 1,120 watts and offer outstanding value, performance and dependability.

Features

• High Reliability  conformally coated circuit board and corrosion resistant terminals.
• Maximizes Energy Harvest  using TrakStar MPPT Technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
• High Efficiency  at low, medium, and high power levels.
• Low Noise Design  One of the electrically quietest controllers in this size and price range.
• Optional Meter  provides access to system operational information including current and historical performance data. All EcoBoost "M" controllers include the meter.
• USB Charging  Two USB ports with 3 amps of shared charging capacity.
• USB Data  Retrieve locally stored performance data. Use port for serial emulation for real-time view of system operation.
• Self Diagnostics  continuous monitoring and reporting of any errors through its status LED's, or its optional display.
• Lighting Controller  Uses PV array to switch at dusk and dawn.
• Load Controller  Connect DC loads directly to the controller. Programmable load operation and protects batteries.
• Data Logging  up to 30 days of detailed power and load data.
• 2 year warranty
