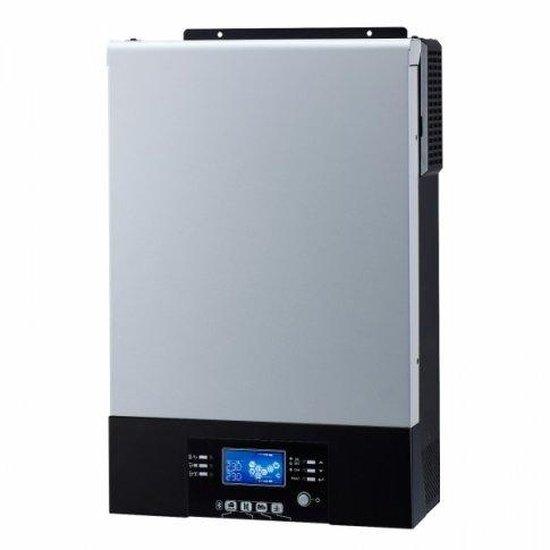

Iconica 5000W 48V Hybrid Pure Sine Wave Inverter
80A MPPT Solar Controller & 100A Mains Charger | Parallel & Bluetooth Capability
The Iconica 5000W 48V Hybrid Pure Sine Wave Inverter (SKU: IC3-KMS5000-48) is a versatile all-in-one solution for off-grid and backup power systems. Manufactured by Photonic Universe, this hybrid inverter intelligently combines a powerful 5000W pure sine wave inverter, an efficient 80A MPPT solar charge controller, and a robust 100A mains battery charger into a single, compact unit.
Designed for UK homeowners, off-grid users, and small businesses, it provides reliable 230V AC power from various sources including solar panels, batteries, mains electricity, or a generator. Its advanced features, such as parallel capability for system expansion and integrated Bluetooth for remote monitoring, make it an ideal choice for remote properties, holiday homes, cabins, and backup power during outages.
KEY ADVANTAGE: This inverter supports battery-free operation, allowing you to power AC loads directly from your solar panels.
Key Features
| ▶ 5000W Pure Sine Wave Output — Provides clean, stable 230V AC power suitable for all household appliances. |
| ▶ Integrated 80A MPPT Solar Controller — Maximises energy harvest from solar panels with up to 98% efficiency. |
| ▶ 100A Smart Mains Battery Charger — Ensures fast, safe, multi-stage charging from grid or generator. |
| ▶ Parallel Capability — Expand your system up to 8 identical units for increased power output or three-phase operation. |
| ▶ Battery-Free Operation — Power AC loads directly from solar panels, reducing reliance on batteries. |
| ▶ Uninterrupted Power Supply (UPS) — Provides seamless power backup during grid outages. |
| ▶ Bluetooth Connectivity — Monitor system performance and settings remotely via the Watchpower mobile app (Android). |
| ▶ Customisable Settings — Tailor charging priorities, input sources, and voltage settings via the LCD or software. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage: | 48V DC |
| Continuous Power Output: | 5000W / 5000VA |
| Surge Power (Peak): | 10000VA |
| Output Waveform: | Pure Sine Wave |
| Max Solar Input Power: | 5000W |
| Max Open Circuit Solar Voltage: | 450V DC |
| MPPT Operating Voltage Range: | 120-430V DC |
| Max Solar Charging Current: | 80A |
| Max Mains AC Charging Current: | 100A |
| Max Combined Charging Current: | 100A |
| Operating Temperature: | -10°C to 50°C |
| Dimensions (D x W x H): | 120 x 295 x 468 mm |
| Weight: | 12 kg |
Charging & Output Modes
| Mode | Description |
|---|---|
| Solar Priority | Prioritises solar power for loads and battery charging, switching to mains/battery only when solar is insufficient. |
| Mains Priority | Utilises mains power first, with solar and battery acting as backup. Ideal for grid-tied systems with backup. |
| Battery Priority | Discharges battery first, then switches to other sources when battery voltage is low. |
| Combined Charging | Allows simultaneous charging from both solar and mains/generator inputs for faster battery replenishment. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides independent and reliable power where grid access is limited or unavailable. |
| Holiday Homes & Caravans | Ensures continuous power for leisure properties and mobile setups. |
| Backup Power Systems | Acts as an Uninterruptible Power Supply (UPS) for critical loads during grid failures. |
| Marine & Mobile Installations | Suitable for narrowboats, yachts, and other mobile applications requiring stable AC power. |
Built-In Protection Functions
The Iconica 5000W 48V Hybrid Inverter incorporates multiple safety features to ensure reliable and safe operation. These include protection against overload, over-temperature, and reverse current. It also features an auto-restart function for seamless recovery after fault conditions and intelligent cooling with variable-speed fans to prevent overheating. The unit is CE certified for electrical safety.
Common Questions
Can this inverter operate without batteries?
Yes, the Iconica 5000W 48V Hybrid Inverter can power AC loads directly from solar panels, even without a connected battery bank. This offers flexibility for various off-grid setups.
What type of batteries is it compatible with?
This inverter is compatible with 48V GEL/AGM and Lithium-Ion batteries, featuring predefined charging programs. A user-defined battery type setting is also available for other lead-acid battery types.
How many of these inverters can be connected in parallel?
You can connect up to 8 identical Iconica 5000W 48V inverters in parallel to increase total power output or enable three-phase operation. A parallel connection kit (sold separately) is required for each additional inverter.
Can I monitor the inverter remotely?
Yes, the inverter features inbuilt Bluetooth connectivity, allowing you to monitor its status and adjust settings via the free Watchpower mobile app, available for Android devices. A PC connection cable and software CD are also included for local monitoring.
Installation Notes
- Installation should be performed by a qualified professional to ensure safety and compliance with local regulations.
- Ensure adequate ventilation around the inverter to prevent overheating.
- Appropriate DC over-current protection and disconnect devices are required between the battery and inverter.
- Refer to the detailed user manual for comprehensive wiring diagrams and operational instructions.
- A parallel connection kit is required for each additional inverter when expanding the system.
Before You Buy
- Verify your battery bank voltage is 48V DC for compatibility.
- Confirm your solar panel array's open circuit voltage and MPPT operating voltage fall within the inverter's specified ranges.
- Consider your total power requirements, including surge loads, to ensure the 5000W continuous output is sufficient.
- For parallel operation, ensure all inverters are identical models and purchase the necessary parallel kits.
- Review the included accessories: PC connection cable and PC software CD.
Please verify all specifications and compatibility requirements before purchase. Product specifications are subject to change by the manufacturer. This product is covered by a 1-year manufacturer warranty.
