Iconica 3000W 24V pure sine wave inverter with zero transfer, parallel capability and Bluetooth (No Battery Required)
Iconica 3000W 24V pure sine wave inverter with zero transfer, parallel capability and Bluetooth (No Battery Required)
SKU:IC-ZT3000-24
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Iconica 3000W 24V Pure Sine Wave Hybrid Inverter
Zero Transfer UPS | Parallel Ready | Integrated MPPT & Mains Charger

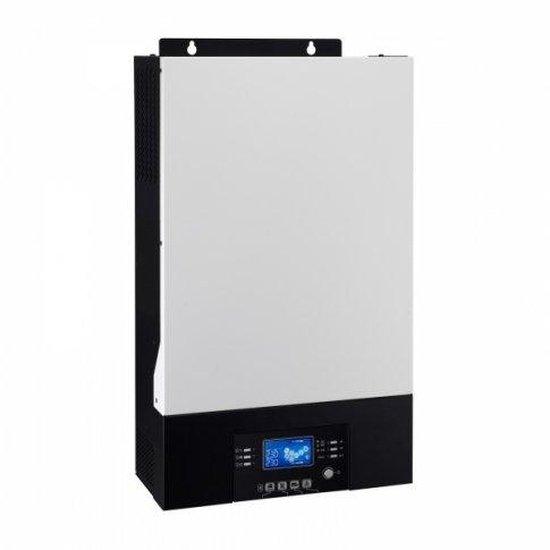

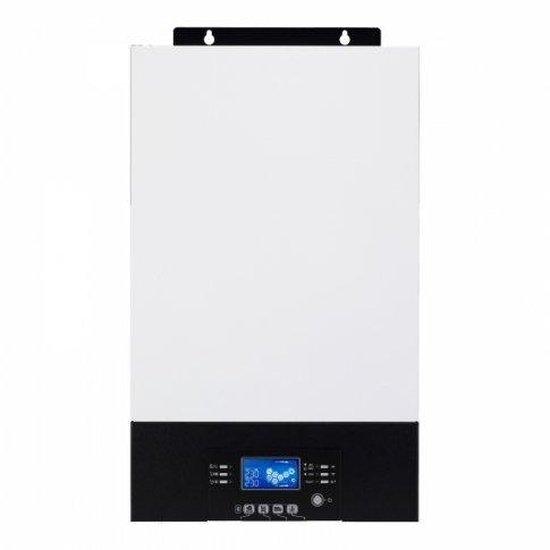

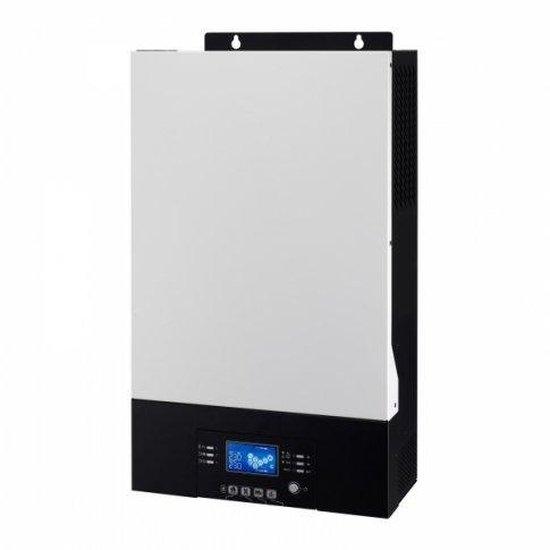

The Iconica 3000W 24V Pure Sine Wave Hybrid Inverter (SKU: IC-ZT3000-24) is a versatile all-in-one power solution designed for off-grid, backup, and hybrid energy systems. This robust unit intelligently combines a 3000W pure sine wave inverter, a 60A MPPT solar charge controller, and a 60A smart mains battery charger into a single, compact device. It provides reliable 230V AC power for a wide range of appliances, making it ideal for homes, remote properties, and mobile installations across the UK.
Engineered for seamless operation, this Iconica inverter features a zero transfer time UPS function, ensuring an uninterrupted power supply for critical loads during mains outages. Its advanced design also allows for direct AC load powering from solar panels, even without a battery, offering enhanced flexibility and efficiency for various energy setups.
KEY CAPABILITY: Powers AC loads directly from solar panels without a battery, or with battery backup for enhanced resilience.
Key Features
| ▶ 3000W Pure Sine Wave Output — Delivers clean, stable 230V AC power suitable for sensitive electronics and motor loads. |
| ▶ Zero Transfer Time UPS — Ensures instantaneous switchover (0ms) from mains to battery power during outages, protecting critical systems. |
| ▶ Integrated 60A MPPT Solar Controller — Maximises solar energy harvest with up to 98% efficiency for faster battery charging or direct load powering. |
| ▶ 60A Smart Mains Battery Charger — Provides efficient, multi-stage charging for 24V battery banks from grid or generator. |
| ▶ Battery-Free Operation — Capable of powering AC loads directly from solar panels, reducing reliance on batteries. |
| ▶ Parallel Capability — Expandable up to 8 units for increased power output and system redundancy. |

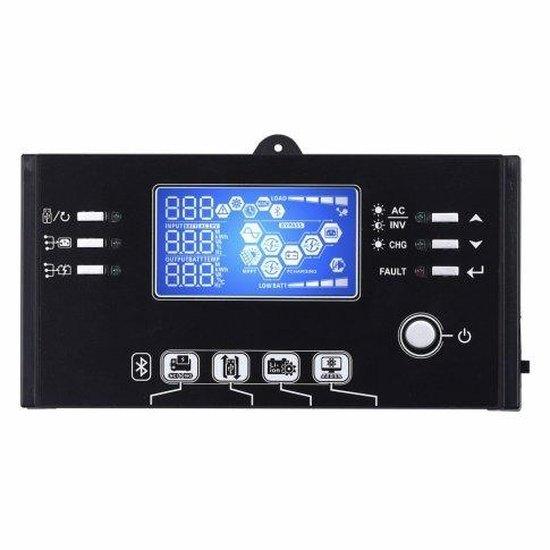

| ▶ Bluetooth Connectivity — Monitor and configure settings wirelessly via the Watchpower mobile app (optional Wi-Fi module for remote access). |
| ▶ Customisable Settings — User-defined parameters for output source priority, charging current, and battery types for optimal performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage: | 24V |
| Continuous Power Output: | 3000W / 3000VA |
| Surge Power: | 6000VA |
| Output Voltage: | 230V AC |
| Output Frequency: | 50Hz / 60Hz |
| Output Waveform: | Pure Sine Wave |
| Max Solar Input Power: | 1500W |
| Max Open Circuit Solar Voltage: | 145V DC |
| MPPT Operating Voltage Range: | 30V - 115V DC |
| Max Solar Charging Current: | 60A |
| Max Mains AC Charging Current: | 60A |
| Max Combined Charging Current: | 120A |
| Peak Inverter Efficiency: | 93% |
| Solar / AC Charger Max Efficiency: | 98% |
| Operating Temperature: | 0°C to 55°C |
| Dimensions (L x W x H): | 52.5 x 30.3 x 14 cm |
Charging & Output Modes
The Iconica 3000W 24V Hybrid Inverter offers flexible charging and output management to optimise your energy usage:
| Mode | Description |
|---|---|
| Solar Priority | Prioritises solar power for AC loads and battery charging, switching to mains/battery only when solar is insufficient. |
| Utility Priority (UPS) | Maintains AC loads from the grid, using battery/solar as backup with 0ms transfer time during outages. |
| SBU Priority | Solar first, then battery, then utility. Ideal for maximising self-consumption and reducing grid reliance. |
| Battery Compatibility | Suitable for 24V flooded, sealed GEL/AGM lead-acid batteries with predefined programs, plus user-defined settings for other lead-acid types. |
The inverter's intelligent charging system supports various battery types and allows for customisation of charging stages to prolong battery life and optimise performance.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable 230V AC power for remote properties without mains electricity. |
| Backup Power Systems | Ensures continuous power during grid failures for essential appliances and IT systems. |
| Mobile Installations | Suitable for narrowboats, yachts, caravans, and motorhomes requiring stable AC power on the go. |
| Energy Bill Reduction | Maximise solar self-consumption to reduce reliance on grid electricity and save on energy costs. |
Built-In Protection Functions
The Iconica 3000W 24V Hybrid Inverter incorporates multiple safety features to ensure reliable and secure operation. These include protection against battery overcharge • overheating • reverse current • overload • and short circuit. It also features an auto-restart function for overload and overheating conditions, enhancing system longevity and safety.
Common Questions
Does this inverter require a battery to operate?
No, this Iconica hybrid inverter can power AC loads directly from solar panels without a battery connected. However, a battery is recommended for backup power during periods of low solar input or grid outages.
How does the parallel capability work?
The inverter supports parallel operation, allowing you to connect up to 8 units together to increase the total power output and provide greater system redundancy for larger loads.
Can I monitor the inverter remotely?
Yes, the inverter includes built-in Bluetooth for local monitoring and configuration via the Watchpower mobile app. For long-distance remote monitoring, an optional Wi-Fi or 3G module can be added.
What type of solar panels are compatible?
The integrated 60A MPPT solar charge controller requires a solar array with an operating voltage between 30V and 115V DC and a maximum open circuit voltage of 145V DC. Ensure your solar panel configuration meets these requirements.
Installation Notes
- Installation should be carried out by a qualified professional to ensure safety and compliance with local regulations.
- Ensure adequate ventilation around the inverter to prevent overheating and maintain optimal performance.
- Verify all wiring connections are secure and correctly polarised before powering on the unit.
- Refer to the manufacturer's manual for detailed installation instructions, wiring diagrams, and safety guidelines.
Before You Buy
- Confirm your total power requirements (continuous and surge) to ensure this 3000W inverter meets your needs.
- Check the voltage and type of your battery bank (if using) for compatibility with the 24V system.
- Review the solar input specifications (Max PV power, Voc, MPPT range) to match your solar panel array.
- Consider future expansion needs; this model supports parallel operation for increased capacity.
Please verify all specifications and compatibility requirements with your system designer or installer before purchase. This product is covered by a 1-year manufacturer warranty.
