Iconica 3000W 24V hybrid pure sine wave inverter with 4000W solar input, 80A 500V MPPT solar controller, 60A mains battery charger and inbuilt Bluetooth (No Battery Required)
Iconica 3000W 24V hybrid pure sine wave inverter with 4000W solar input, 80A 500V MPPT solar controller, 60A mains battery charger and inbuilt Bluetooth (No Battery Required)
SKU:IC3-BM3000-24
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

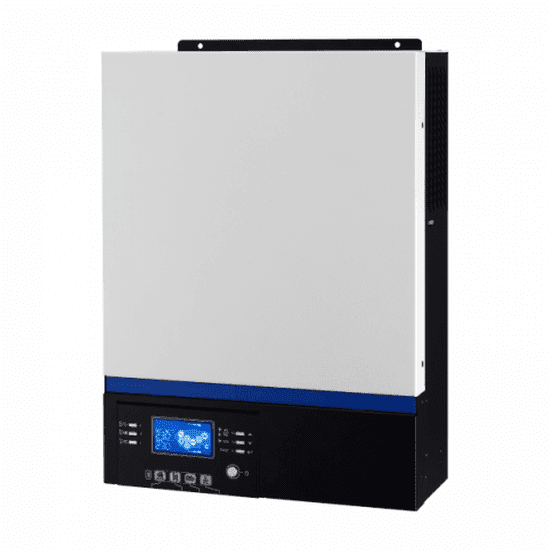

Iconica 3000W 24V Hybrid Pure Sine Wave Inverter
4000W Solar Input | 80A 500V MPPT Controller | 60A Mains Charger
The Iconica 3000W 24V Hybrid Pure Sine Wave Inverter is a versatile all-in-one solution for off-grid and backup power systems. This advanced unit intelligently combines a powerful 3000W pure sine wave inverter, an efficient 80A 500V MPPT solar charge controller, and a robust 60A smart mains battery charger into a single, compact device. It is designed to accept input from solar panels, mains electricity or a generator, and a battery bank, offering flexible power management for various applications.
Ideal for UK homeowners, off-grid installations, and small businesses, this inverter provides reliable 230V AC power for a wide range of appliances. Its hybrid capability allows for seamless power transitions and prioritisation, ensuring an uninterrupted power supply even in areas with unreliable grid access.
KEY CAPABILITY: Powers AC loads directly from solar energy without requiring a connected battery bank.
Key Features
| ▶ 3000W Pure Sine Wave Output — Provides stable 230V AC power for sensitive electronics and motor-driven appliances. |
| ▶ Integrated 80A MPPT Solar Controller — Maximises power harvest from solar panels with up to 4000W input and 500V open circuit voltage. |
| ▶ 60A Smart Mains Battery Charger — Enables fast, efficient, and safe multi-stage charging from a mains supply or generator. |
| ▶ Battery-Less Operation — Can power AC loads directly from solar panels, reducing reliance on batteries. |
| ▶ High Solar Input Voltage (up to 500V) — Simplifies solar array wiring by allowing panels to be connected in series. |
| ▶ Inbuilt Bluetooth Connectivity — Monitor system performance and adjust settings remotely via the Watchpower mobile app. |

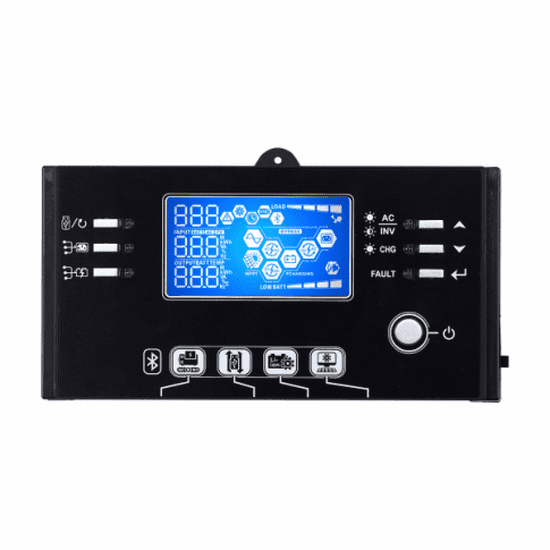

| ▶ Removable LCD Display — Provides vital system statistics and can be positioned up to 20m away for convenient monitoring. |
| ▶ Customisable Settings — Personalise AC input range, battery type, charging currents, and power priorities. |
| ▶ UPS Functionality — Provides uninterrupted power during grid outages, ideal for critical loads. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 24V |
| Continuous Power Output | 3000W / 3000VA |
| Surge Power | 6000VA |
| Output Frequency | 50Hz |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 4000W |
| Max Open Circuit Solar Voltage | 500V DC |
| MPPT Operating Solar Voltage | 120V - 450V DC |
| Max Solar Charging Current | 80A |
| Max Mains AC Charging Current | 60A |
| Max Combined Charging Current | 80A |
| Peak Efficiency | 93% |
| Solar/AC Charger Max Efficiency | 98% |
| Operating Temperature | -10°C to 50°C |
| Dimensions (H x W x D) | 44 x 30 x 11.5 cm |
| Weight | 9 kg |
Charging & Output Modes
The Iconica 3000W inverter offers extensive control over power flow, allowing users to optimise their energy usage based on availability and cost.
| Feature | Description |
|---|---|
| Output Source Priority | Configure the inverter to prioritise solar, battery, or mains/generator input for AC loads, adapting to varying conditions like insufficient solar power or low battery voltage. |
| Battery Charging Priority | Select preferred charging sources for the battery bank, including solar only, a combination of solar and mains, or mains power only. |
| Load Power without Battery | The inverter can power AC loads directly from solar input. If a battery is present, it can power loads while simultaneously charging the batteries. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable electricity for remote properties without access to the national grid. |
| Mobile Installations | Suitable for caravans, motorhomes, narrowboats, and yachts, offering independent power on the move. |
| Backup Power Systems | Acts as an Uninterrupted Power Supply (UPS) for critical loads during mains power cuts. |
| Reducing Mains Usage | Allows users to maximise solar self-consumption, reducing electricity bills and grid dependency. |
Built-In Protection Functions
This Iconica hybrid inverter incorporates multiple safety features to ensure reliable and safe operation. It includes protection against overload and overheating, with an auto-restart function that automatically reconnects loads once safe conditions are detected. An intelligent cooling design with predictive fan logic prevents overheating, and the fan is easily removable for maintenance. The inverter also features a Battery Management System (BMS) port for optional connectivity with compatible battery systems.
Common Questions
Can this inverter operate without a battery?
Yes, a key feature of this Iconica inverter is its ability to power AC loads directly from solar panels, even without a battery bank connected.
What battery types are compatible?
This hybrid inverter is suitable for 24V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs. It also supports user-defined battery types with customisable settings.
What is the minimum solar input voltage required?
To enable solar charging or direct operation from solar panels, the solar array must meet the inverter's minimum MPPT operating voltage requirement of 120V DC.
Can I monitor the inverter remotely?
Yes, the inverter features inbuilt Bluetooth for monitoring via the Watchpower mobile app. Additionally, it supports optional Wi-Fi or 3G connection kits (sold separately) for advanced remote monitoring and notifications.
Installation Notes
- Installation should be performed by a qualified electrician or solar professional.
- Ensure the solar array's open circuit voltage does not exceed 500V DC and the MPPT operating voltage is within 120V-450V DC.
- Consider the inverter's cooling fan noise if installing in quiet environments like bedrooms.
- Proper cable sizing for battery and solar connections is crucial for safety and efficiency.
- A separate AC breaker and DC over-current protection are recommended for safety.
Before You Buy
- Verify your total appliance wattage to ensure the 3000W continuous output is sufficient.
- Confirm your battery bank is a 24V system if you plan to connect one.
- Review the detailed user manual (available on the Solarika website) for comprehensive wiring and operation instructions.
- Consider purchasing optional Wi-Fi or 3G connection kits for enhanced remote monitoring capabilities.
- This inverter is designed for off-grid or backup applications and is not a grid-tied inverter.
Please verify all specifications and compatibility requirements before purchase. Professional installation is recommended. This product comes with a 1-year manufacturer warranty.
