Iconica 11kW 48V Hybrid Inverter
SKU: IC2-MD11000-48 | Dual MPPT Solar Controller

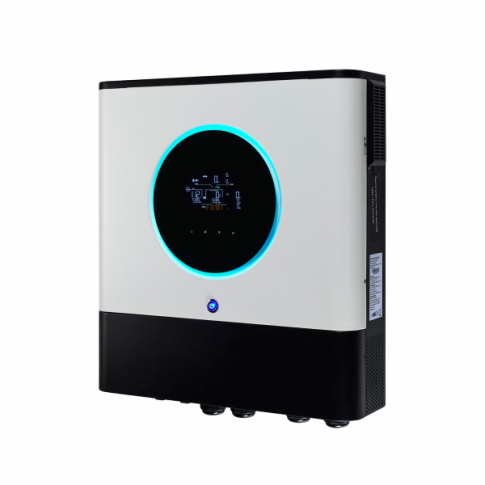

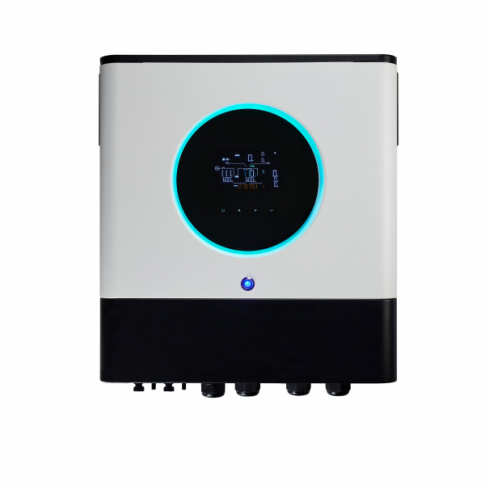

The Iconica IC2-MD11000-48 is a professional-grade 11,000W (11kW) hybrid power system designed for high-demand off-grid and backup applications. It intelligently combines a pure sine wave inverter, two independent 5500W MPPT solar charge controllers, and a high-speed 150A battery charger into a single, wall-mountable unit. This model is specifically engineered to handle heavy industrial and domestic loads, from power tools and water pumps to complete household appliance setups.
Key Features
- ✔ 11,000W Continuous Output (22kVA Surge)
- ✔ Dual MPPT Inputs: 2x 5500W independent controllers
- ✔ Inbuilt Wi-Fi: Mobile monitoring via dedicated app
- ✔ Parallel Ready: Expandable up to 6 units (66kW)
- ✔ Pure Sine Wave: Safe for all sensitive electronics
Technical Specs
| Nominal Battery Voltage | 48V DC |
| Output Voltage | 230V AC |
| Max Solar Input | 11000W (2x 5500W) |
| MPPT Voltage Range | 90V - 450V DC |
| Max Charging Current | 150A (Solar/Mains) |
| Peak Efficiency | 93% |
System Compatibility Guide
| Category | Supported Types | Notes |
|---|---|---|
| Battery Types | AGM, GEL, Flooded, Lithium | Custom settings available for LiFePO4 |
| Solar Array | High Voltage PV Arrays | Max 500Voc; 2 independent strings |
| AC Input | Mains Grid or Generator | Auto-restart/UPS transition |
Identification & Reference
| Part Number / SKU | IC2-MD11000-48 |
| EAN | 5060297347894 |
| Brand | Iconica (Distributed by solarika / Aftermarket) |
Installation & Usage
This unit is intended for permanent wall-mount installation. Due to the high power output (11kW), it must be installed by a qualified electrician or solar technician. Ensure appropriate DC fusing is used on the battery connection (48V) and that the PV string voltages do not exceed the 500V Open Circuit limit. PC software and Wi-Fi configuration instructions are included in the box.
Questions & Answers
Is this a genuine Iconica part?
Yes, this is an authentic Iconica IC2 series hybrid inverter, supplied by solarika / Aftermarket with full technical support and warranty.
Can this inverter power a whole house?
With 11,000W of continuous power, this unit is capable of running multiple high-energy appliances (washing machines, kettles, power tools) simultaneously, making it ideal for large off-grid properties or commercial workshops.
Does it support parallel operation?
Yes, this model features built-in parallel communication ports and can be linked with up to 5 additional units for a total system capacity of 66kW.
Note: Technical data is based on the manufacturer's specifications for the IC2-MD11000-48. Always consult a professional for solar system sizing and installation. Visit solarika.co.uk for further technical support.
