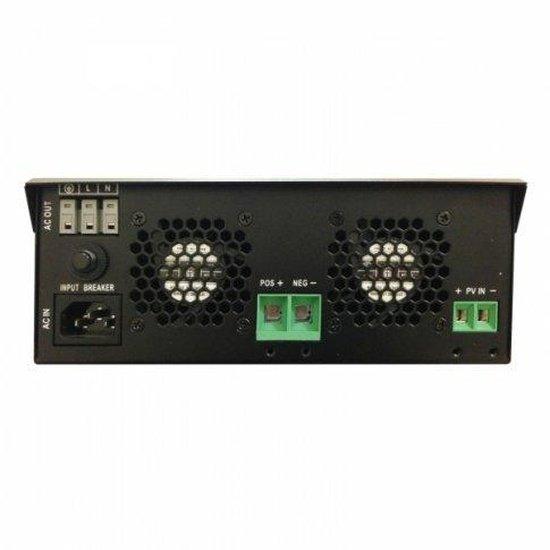

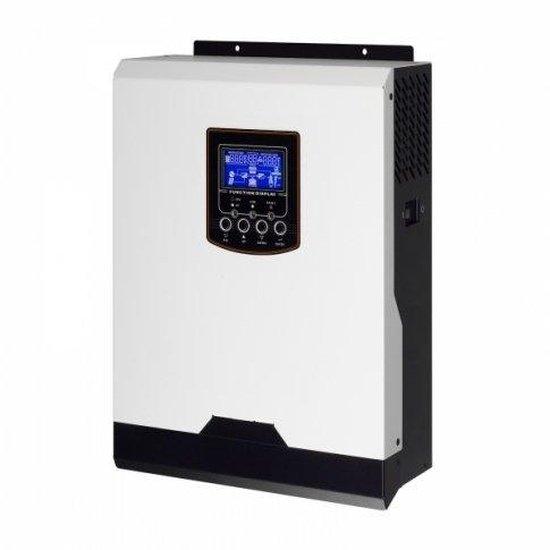

Iconica 1000W 12V hybrid pure sine wave inverter with 50A solar charge controller and 20A mains battery charger

The Iconica 1000W 12V hybrid inverter combines the functions of a 1000W pure sine wave inverter, a 50A solar charge controller, and a 20A smart battery charger in one portable unit. This model can accept input from solar panels, mains power/generator, and a battery, either from a single source or a combination of sources. In addition to its hybrid capability, this innovative inverter features advanced communication functions and customizable settings. It is suitable for off-grid applications with limited or no access to traditional mains power. The hybrid inverter also features an Uninterrupted Power Supply (UPS), making it ideal for areas with unreliable, intermittent, or expensive power supply. It is suitable for both stationary and mobile off-grid installations, as well as for customers looking to reduce their mains electricity usage and save on electricity bills. Additionally, it can serve as a backup system in locations suffering from frequent power cuts.

Key functions:

1. 1000W 12V Pure Sine Wave Inverter:

Converts DC current into 230V AC mains electricity to run various household appliances such as a TV, laptop, lighting, fans, etc. Able to generate 1000VA of continuous power with a strong peak power handling capability of up to 2000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 50A PWM Solar Charge Controller:

Regulates the input from the solar panels to the batteries, with a full range of safety functions, including protection against overcharge, overheating, reverse current, etc. The controller uses PWM (Pulse Width Modulation) technology, which increases charge acceptance, prolongs the life of your battery, and can often recover some lost battery capacity. Performance data for the solar array is displayed on the LCD screen.

3. Enhanced 20A Smart Battery Charger:

Designed to enable safe and efficient unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.

Additional Intelligent Features:

The Iconica 1000W 12V hybrid inverter boasts an abundance of unique features, providing enhanced functionality over standard inverters. These include:

- Output Source Priority: This intelligent feature allows the user to set output source preferences (solar/battery power/mains input or a generator) for the AC load output of the inverter. This menu includes several options for varying conditions and scenarios, e.g., which source of energy is given priority for the AC output if solar power is insufficient/if battery voltage is too low/if mains is unavailable, etc.

- Battery Charging Priority: A wide selection of battery charging priority options are available. For instance, the user can choose to charge the battery using solar power only/using a combination of solar power and mains power/from mains power only, etc.

- A Range of Highly Customizable Settings: The parameters for this inverter can be personalized to an exceptionally specific degree via the user-friendly interface. At the touch of a button, the user can customize parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points (and preferred charging source upon reconnection), the duration and voltage of each charging stage, auto-restart options, power-saving mode, overload bypass, battery equalization stage characteristics, and so on. There are also options for managing operational features such as the audible alarm and backlight settings.

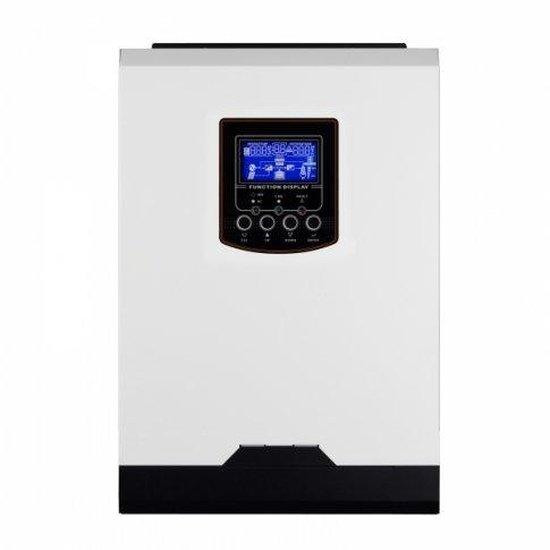

- Illuminated LCD Screen: Displays vital statistics which are easily changeable by the use of the up/down keys. This information includes: status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current, etc.

- Advanced Communication Options: The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, such as: solar/battery/AC voltage, charging current, battery capacity, etc. Detailed data logs are also available to view and export to PDF/Excel formats. This inverter also has the potential to send data to an online user portal using a Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (purchased separately). By connecting via one of these methods, the user will unlock access to exclusive features such as email/push notification/SMS status updates for the inverter, remote system monitoring from any location and much more.

- Auto Restart Function: When overload or overheating occurs, the inverter will disconnect the load appliances and automatically reconnect once safe conditions are detected.

Please memorize the following information:

The built-in fan helps maintain an optimal operational temperature. The inverter uses predictive fan logic based on performance and temperature, with one or two fans operating at variable speeds to prevent overheating of the components. This hybrid inverter is compatible with 12V flooded and sealed GEL/AGM lead-acid batteries and has pre-defined charging programs. It also allows for user-defined battery types with customizable settings for charging other lead-acid batteries.

Note that the PWM solar charge controller in this inverter achieves maximum efficiency with solar panels producing between 17-25V. If you plan to use high-voltage solar panels over 25V, it's recommended to purchase a different model of the Iconica hybrid inverter with an inbuilt MPPT controller. This inverter comes with a 1.5m cable with a 3-pin UK plug for connection to a mains power outlet.

Inverter specifications:

- Nominal battery voltage: 12V

- Continuous power output: 1000W / 1000VA

- Surge power: 2000VA

- Output voltage: 230V AC

- Output frequency: 50Hz /60Hz

- Output waveform: Pure sine wave

- Maximum solar input power: 600W

- Maximum open circuit solar input voltage: 55V

- Maximum solar charging current: 50A

- Maximum mains AC charging current: 20A

- Maximum combined charging current: 50A

- Peak efficiency: 93%

- Operating temperature: -10°C to 50°C

- Supplied with: 1.5m AC power cable with 3-pin UK plug, PC connection cable, and PC software CD

- Size: 32 x 22.5 x 8.8 cm

- Weight: 5 kg

- Covered by a 1-year manufacturer warranty

Please be aware that due to the low noise emitted by the cooling fan(s), this inverter may not be suitable for installation in locations that require absolute silence, such as bedrooms at night. A detailed user manual explaining wiring and operations is included, and free support for installation or technical questions is available. You can contact us by email or phone for assistance.

User manuals for the Iconica IC-BP1000-12 hybrid power inverter and the 'WatchPower' PC software for Iconica IC-BP1000-12 can be downloaded from the Documents tab.
