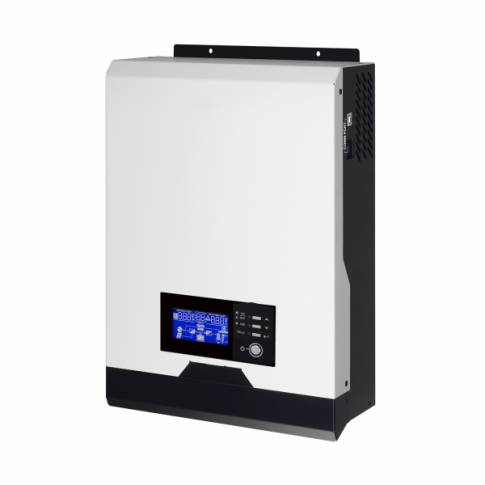

Iconica 1000W 12V hybrid pure sine wave inverter with 40A MPPT solar controller and 20A mains charger
Iconica 1000W 12V hybrid pure sine wave inverter with 40A MPPT solar controller and 20A mains charger
SKU:IC-BM1000-12
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
IC-BM1000-12 HYBRID INVERTER
1000W 12V Pure Sine Wave + 40A MPPT Solar Controller
The IC-BM1000-12 is a professional-grade hybrid power solution designed for off-grid applications, remote properties, and mobile installations. This sophisticated unit intelligently integrates three vital components into one compact housing: a 1000W pure sine wave inverter, a high-efficiency 40A MPPT solar charge controller, and a 20A smart mains battery charger. Whether used for solar energy storage or as a reliable Uninterrupted Power Supply (UPS), this unit ensures seamless power delivery to sensitive electronics.
Key Features
- ✔ Pure Sine Wave Output: Safe for all sensitive electronics.
- ✔ 40A MPPT Controller: Up to 98% efficiency solar charging.
- ✔ UPS Function: Fast switching for backup power.
- ✔ Customizable LCD: Set priority for Solar, Utility, or Battery.
Technical Specs
| Continuous Power | 1000W / 1000VA |
| Surge Power | 2000VA |
| Battery Voltage | 12V DC |
| AC Output | 230V AC, 50Hz |
| Max Solar Input | 500W / 102V VOC |
| Charging Current | 40A Solar / 20A Mains |
Battery Compatibility Guide
| Battery Type | Compatibility | Notes |
|---|---|---|
| AGM / GEL | Fully Compatible | Pre-defined charging programs included. |
| Flooded Lead Acid | Fully Compatible | Optimal for off-grid stationary use. |
| User-Defined | Compatible | Manual voltage settings for custom 12V banks. |
Reference Identifiers
| SKU / Part Number | IC-BM1000-12 |
| EAN | 5060297345456 |
| System Voltage | 12V DC |
Installation & Accessories
The unit is supplied with a 1.5m AC power cable with a standard 3-pin UK plug for mains charging and a PC connection cable with monitoring software. Ensure appropriate DC cabling and fuses are used for battery and solar connections (not included).
Professional installation by a qualified electrician or solar technician is recommended for safety and optimal system performance.
Questions & Answers
Is this suitable for 24V or 48V battery systems?
No, the IC-BM1000-12 is specifically designed for 12V battery banks only. Connecting it to a higher voltage system will cause damage.
Can I use this with Lithium (LiFePO4) batteries?
While optimized for Lead-Acid (AGM/GEL), it features a "User-Defined" battery setting that allows you to manually configure charging voltages to match your Lithium battery's requirements.
Does it support auto-restart after a power failure?
Yes, the unit features an auto-restart function while AC is recovering and includes overload/over-temperature protection for unattended operation.
Note: Please verify your system voltage (12V) and power requirements before purchasing. Visit solarika.co.uk for technical support.
