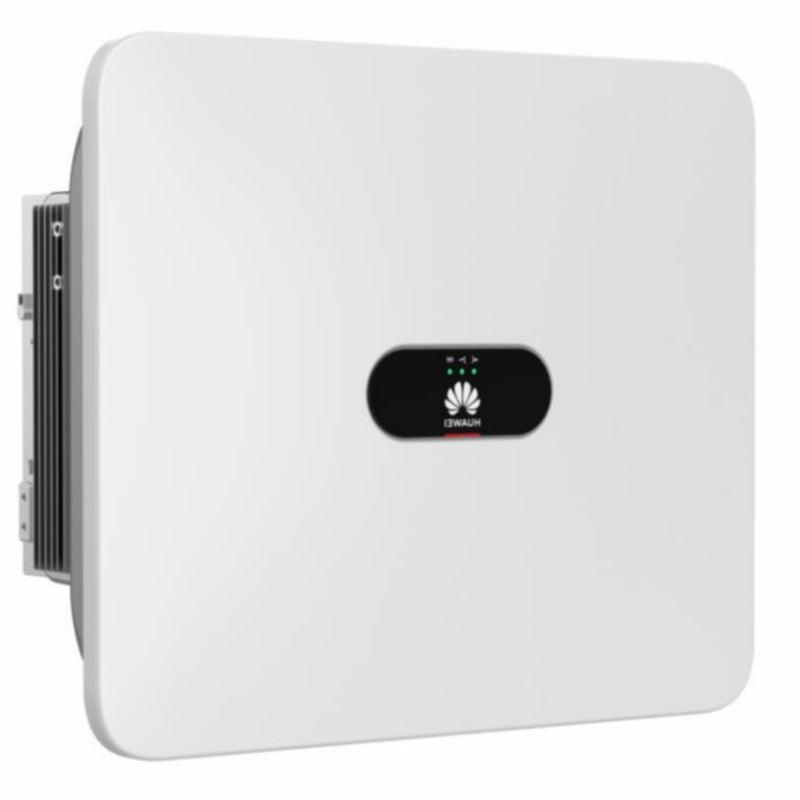

Huawei SUN2000 12KTL M5 Three Phase Inverter

Huawei SUN2000 12KTL M5 Three Phase Inverter

SKU:hu-sun2000-12ktl-m5

Regular price £2,199.00 GBP
Regular price Sale price £2,199.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

The Huawei SUN2000-12KTL-M5 inverter is Huawei's 5th generation of 3 phase string inverter. It boasts a high maximum efficiency of 98.4%, which allows the entire system to operate extremely efficiently. The European efficiency of the inverter is specified at 97.9% and it has a voltage range that extends from 200 to 1,000 volts.

The Huawei SUN2000-12KTL-M5 inverter has many advantages, including compact design, simple plug-in connections, and RS485 communication for data exchange with the smart power meter. While commissioning is greatly simplified by the Huawei FusionSolar app, so that it is successfully completed in just a few minutes.

The inverter is also equipped with overvoltage protection (type 2 for AC and DC), as well as two independent MPP trackers. The system is AI-powered to proactively mitigate fire risk which, combined with arc fault protection, makes the SUN2000-12KTL-M5 one of the safest string inverter options available.

The M5 generation of these inverters is compatible with the Huawei 450W power optimiser, and has built-in PID recovery.

AC attributes
Max power:
12000W
Max current:
17.3A
Number of phases:
3
DC attributes
Number of MPPT 2
V range of MPPT 370-800V
Max input power 18000W
Max input current 30A
Max voltage 1100V
Start up voltage 200V
System
Max efficiency 98.4%
IP rating IP66
Built in protection Type II AC/DC surge arresters, reverse polarity, arc fault protection
Export limitations With smartlogger
Weight 21kg
Dimensions 546x460x228mm
Communication RS485 (WLAN, 4G optional)
Warranty 10 years
Key features

Lighter, more compact design
AI powered arcing protection

Max efficiency of 98.4%
Indoor or outdoor installation
Reliable - Type II surge arresters for AC and DC
