• High efficiency 50A MPPT solar charge controller for solar panels up to 625W (12V) / 1250W (24V) / 1875W (36V) / 2500W (48V) up to 150V
1 1

High efficiency 50A MPPT solar charge controller for solar panels up to 625W (12V) / 1250W (24V) / 1875W (36V) / 2500W (48V) up to 150V

High efficiency 50A MPPT solar charge controller for solar panels up to 625W (12V) / 1250W (24V) / 1875W (36V) / 2500W (48V) up to 150V

PTR5415AN

£189.99 GBP
£189.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

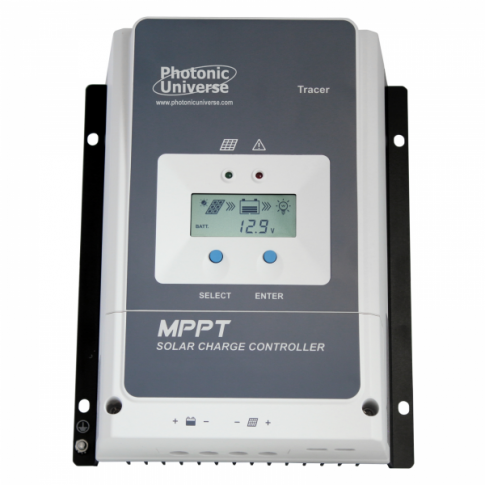

PTR5415AN MPPT Controller

Professional 50A 150V Solar Charge Regulator

The PTR5415AN is a premium-grade 50A MPPT (Maximum Power Point Tracking) solar charge controller designed for high-performance off-grid applications. Utilizing advanced MSRT (Multiphase Synchronous Rectification Technology) and a sophisticated MPPT control algorithm, this unit ensures maximum energy harvest from your solar array even in challenging weather conditions.

RELIABILITY: Engineered with high-quality components from ST and Infineon to ensure a long service life and a tracking efficiency of no less than 99.5%.

Key Features

  • ✔ 12V/24V/36V/48V DC Auto Detection
  • ✔ Advanced MPPT tracking (99.5% efficiency)
  • ✔ Built-in LCD for real-time monitoring
  • ✔ RS485 port with Modbus protocol
  • ✔ Negative common grounding design

Technical Specs

Rated Charge Current: 50A
Max PV Input (Voc): 150V
Battery Voltage: 12/24/36/48V Auto
Max PV Input Power: 625W-2500W
Conversion Efficiency: ≤ 98.6%
Enclosure: IP20

Maximum PV Input Power Guide

System Voltage Max Recommended PV Input
12V System 625 Watts
24V System 1250 Watts
36V System 1875 Watts
48V System 2500 Watts

OEM Cross Reference

EPEVER Tracer 5415AN / Tracer-AN Series
Photonic Universe PTR5415AN
Temank Tracer5415AN

Installation Guide

  1. Step 1 (Critical): Connect the Battery terminals to the controller first. This allows the unit to auto-detect the system voltage (12/24/36/48V).
  2. Step 2: Connect the Solar PV array to the controller. Ensure the Open Circuit Voltage (Voc) does not exceed 150V.
  3. Step 3: Connect the Load (if applicable).
  4. Reverse this order for disconnection (PV first, then Battery).

Questions & Answers

Is this a genuine original part?

This is a premium quality MPPT controller manufactured to the exact PTR5415AN specifications by Solarika, fully compatible with all EPEVER Tracer-AN series monitoring accessories.

Can I use this with Lithium batteries?

Yes. This unit supports Lead-acid (Sealed, Gel, Flooded) and Lithium (LiFePO4, Li-NiCoMn) batteries. Lithium parameters can be set via the unit interface, MT50 remote meter, or PC software.

What happens if my solar panels exceed the rated power?

The PTR5415AN features a charging power and current limiting function. It will automatically limit the charging current to 50A to protect the system without damaging the controller.

Note: Please verify your solar array's Voc and system voltage requirements before purchasing. Distributed by Solarika.co.uk.
