High Efficiency 30A MPPT Solar Charge Controller
Dual Fixed Load Outputs | 12V/24V Auto | Max 100V PV Input

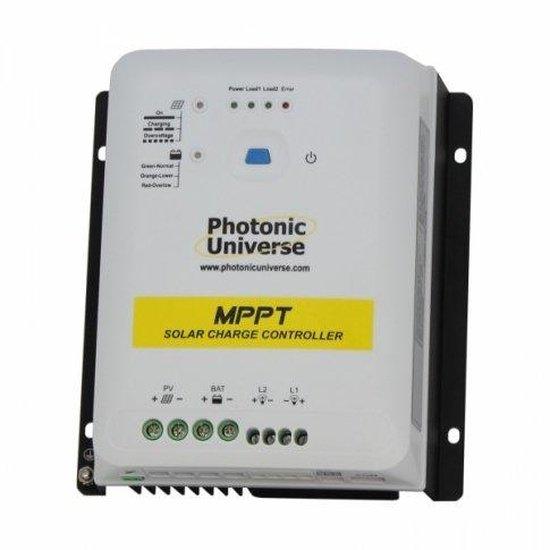

Maximise your solar power and simplify your off-grid system with the Photonic Universe MSC3210N 30A MPPT Solar Charge Controller. This advanced controller efficiently harvests energy from your solar panels, allowing you to power a diverse range of devices, including sensitive electronics, without the need for additional converters. It delivers stable, reliable power, making off-grid setups more efficient and manageable.
Designed for optimal performance, the MSC3210N intelligently tracks your solar panels' maximum power point, ensuring you extract every possible watt. Whether you are setting up a new system or upgrading an existing one, its comprehensive features offer flexibility and peace of mind for various applications.
SYSTEM COMPATIBILITY: Supports 12V (up to 390W) or 24V (up to 780W) solar systems.
Key Features
| ▶ Unmatched Efficiency — Advanced MPPT technology boosts energy harvesting to over 95%. |
| ▶ Dual Independent Load Outputs — Power 12V and 24V equipment simultaneously, ideal for sensitive devices. |
| ▶ Versatile Power Handling — Handles up to 100V PV input, 390W (12V) / 780W (24V) max solar power. |
| ▶ Robust Protection — Comprehensive electronic safeguards for system safety. |
| ▶ Smart Diagnostics — Self-diagnostic capability with advanced fault-targeting technology. |
| ▶ Wide Battery Compatibility — Works with lithium, sealed/AGM, and gel lead-acid batteries; custom settings available. |
| ▶ Advanced Monitoring & Control — Adjust parameters via mobile app or computer using RS485/RJ45 port. |
| ▶ Optimised Charging — Remote temperature sensor socket ensures optimal battery charging and extends lifespan. |
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Current Limit | 30A |
| Automatic Voltage Selection | Auto 12V/24V |
| Terminal Wires | Up to 10mm² |
| Max Solar Panel Voltage | 100V |
| Max Solar Panel Power (12V) | 390W |
| Max Solar Panel Power (24V) | 780W |
| Load Output Power (Load 1) | 100W |
| Load Output Power (Load 2) | 36W |
| Load Ripple | 100mV/200mA |
| Grounding | Negative Common |
| Low Self-Consumption | ≤35mA (12V) / ≤22mA (24V) |
| Operating Temperature | -30°C to +65°C |
| Compact Size | 17.8 x 16.2 x 8.01 cm |
| Lightweight | 1.5kg |
Charging & Battery Modes
| Feature | Description |
|---|---|
| Battery Compatibility | Works seamlessly with lithium, sealed/AGM, and gel lead-acid batteries. |
| Custom Charging Profiles | User-defined battery types and charging voltages can be set via the communication port. |
| Temperature Compensation | Includes a socket for a remote temperature sensor to ensure optimal charging based on ambient conditions. |
| MPPT Algorithm | Utilises Maximum Power Point Tracking to maximise energy harvest from solar panels. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Homes | Efficient power management for remote living, ensuring consistent energy supply. |
| Caravans & Motorhomes | Reliable charging for leisure batteries and onboard 12V/24V electronics. |
| Remote Monitoring Stations | Stable power for CCTV, sensors, telecommunications, and other critical equipment. |
| Small Business Systems | Powering essential equipment in off-grid or backup scenarios where dual voltage loads are present. |
Built-In Protection Functions
The Photonic Universe MSC3210N controller includes comprehensive electronic safeguards to protect your system and connected devices. These include protection against: reverse current at night • over-charging • deep discharge • solar panel overvoltage • overload • short circuit • and reverse polarity.
Common Questions
What battery types are compatible with this controller?
The MSC3210N is compatible with lithium, sealed/AGM, and gel lead-acid batteries. It also allows for user-defined battery types and custom charging voltages via its communication port.
Can I connect both 12V and 24V loads simultaneously?
Yes, this controller features dual independent load outputs. This allows you to power both 12V and 24V equipment from a single off-grid system without requiring additional converters or stabilisers.
How does the MPPT technology benefit my solar system?
MPPT (Maximum Power Point Tracking) technology maximises the energy harvested from your solar panels by continuously tracking their optimal operating point. This boosts efficiency to over 95% compared to traditional PWM controllers, providing more power to your batteries.
Is remote monitoring and control possible?
Yes, the controller includes an RS485/RJ45 communication port. This enables you to adjust charging parameters and controller settings using a compatible mobile app or computer program.
Installation Notes
- Refer to the detailed user manual for comprehensive wiring and operation instructions.
- Ensure correct polarity for all connections (solar panels, battery, loads) before powering on the system.
- Mount the controller in a well-ventilated area, away from direct sunlight and moisture, to ensure optimal performance and longevity.
- Use appropriate cable gauges for all connections to minimise voltage drop and ensure electrical safety.
Before You Buy
- Verify your solar panel array's open-circuit voltage (Voc) does not exceed the controller's maximum input voltage of 100V.
- Confirm your total solar panel power (Wp) is within the controller's limits: 390W for 12V systems or 780W for 24V systems.
- Check your battery type and ensure it is compatible with the controller, or that custom settings can be configured.
- Consider the power requirements of your intended loads to ensure they do not exceed the 100W (Load 1) and 36W (Load 2) output limits.
Always verify product specifications and compatibility with your existing or planned solar system components before purchase. Consult a qualified installer for complex setups.
