High efficiency 30A MPPT solar charge controller with built in Bluetooth for solar panels up to 390W (12V) / 780W (24V) / 1170W (36V) / 1560W (48V) up to 150V
High efficiency 30A MPPT solar charge controller with built in Bluetooth for solar panels up to 390W (12V) / 780W (24V) / 1170W (36V) / 1560W (48V) up to 150V
SKU:XTR3415N
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

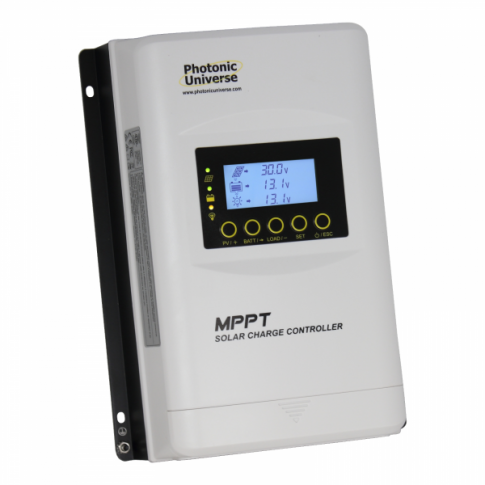

XTR3415N MPPT Solar Charge Controller
30A 12V/24V/36V/48V High-Efficiency Power Management
The XTR3415N is a professional-grade 30A MPPT (Maximum Power Point Tracking) solar charge controller designed for high-performance off-grid power systems. This unit automatically detects system voltages from 12V up to 48V and supports a massive solar input of up to 150V, making it ideal for large solar arrays on motorhomes, yachts, or remote cabins.
Key Features
- ✔ Built-in Bluetooth: Monitor and program via mobile app
- ✔ Multi-Voltage Support: Auto-detects 12V, 24V, 36V, and 48V
- ✔ Lithium Compatible: Pre-set modes for LiFePO4 and Li-NiCoMn
- ✔ 150V Max PV Input: Allows for series connection of multiple panels
- ✔ RS485 Communication: Isolated port for PC or remote display integration
Technical Specs
| Rated Charge Current: | 30 Amps |
| Max PV Input Voltage: | 150V (at 25°C) |
| Max PV Input Power: | 390W (12V) / 1560W (48V) |
| Terminal Size: | 16mm² / 6AWG |
| Enclosure Rating: | IP33 |
| Grounding: | Negative Common |
Compatibility & Battery Support
| Battery Type | Application | Notes |
|---|---|---|
| Lithium | LiFePO4, Li-NiCoMn | Supports self-activation function |
| Lead-Acid | Sealed, Gel, Flooded | Temperature compensation enabled |
| Custom | User-Defined | Fully adjustable voltage parameters |
OEM & Part References
| Part Number / SKU | XTR3415N |
| Manufacturer | EPEVER (XTRA Series) |
| GTIN/EAN | 5060297348747 |
Installation Guide
1. Connect the Battery first to allow the controller to identify system voltage.
2. Connect the Solar Panels (PV) to the controller.
3. Optional: Connect DC loads to the load terminals.
4. Professional installation is recommended to ensure correct cable sizing and fuse placement.
Questions & Answers
Is this a genuine original part?
This is a premium quality replacement/aftermarket power component, manufactured to meet exact technical standards for the solarika range at solarika.co.uk.
How do I know if it is compatible?
Check your solar array's Open Circuit Voltage (Voc); it must not exceed 150V. This controller is compatible with virtually all 12V, 24V, 36V, and 48V battery banks.
Can I monitor this from my phone?
Yes, the XTR3415N features integrated Bluetooth. You can download the companion app (ChargeCloud or EPEVER Pair) to view real-time data and adjust charging settings.
Note: Please verify your system requirements and cable gauges before installation. solarika provides reliable electrical solutions for demanding environments.
