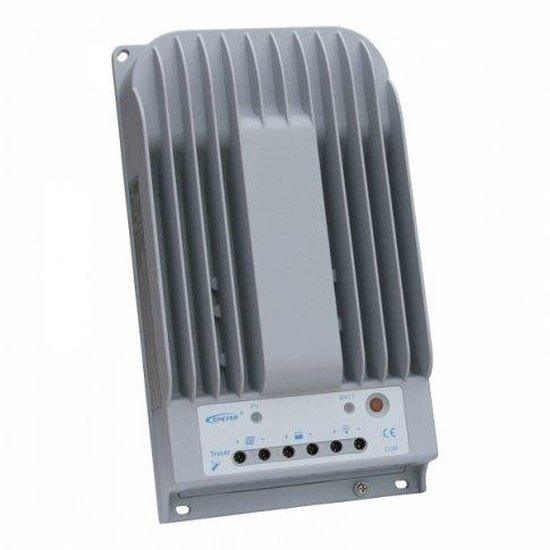

High Efficiency 30A MPPT Solar Charge Controller
Model: TR3215BN | 12V/24V Auto | Max 150V PV Input
The Photonic Universe TR3215BN 30A MPPT Solar Charge Controller is engineered to maximise energy harvest from your solar panels, making it an ideal choice for off-grid solar systems in the UK. This advanced controller efficiently manages power from solar arrays up to 390W for 12V battery systems or 780W for 24V battery systems, supporting a wide solar input voltage of up to 150V.
Utilising Maximum Power Point Tracking (MPPT) technology, it constantly optimises the charging process, ensuring your batteries receive the most efficient charge possible, often boosting energy collection by up to 30% compared to traditional PWM controllers.
MAXIMISE YIELD: Advanced MPPT technology with up to 99.5% tracking efficiency for superior solar energy conversion.
Key Features
| ▶ Advanced MPPT Technology — Maximises power harvest with high tracking and conversion efficiency. |
| ▶ High Power Handling — Supports up to 390W (12V) or 780W (24V) solar panel arrays. |
| ▶ Wide PV Voltage Input — Accommodates solar panel voltages up to 150V for flexible system design. |
| ▶ Automatic System Recognition — Seamlessly adapts to both 12V and 24V battery systems. |
| ▶ Robust Electronic Protection — Comprehensive safeguards against common electrical issues. |
| ▶ 30A Current Limiting — Allows for future expansion of your solar array without overload. |
| ▶ Efficient Cooling Design — Durable die-cast aluminium construction for excellent heat dissipation. |
| ▶ Flexible Monitoring Options — Connect optional remote meter, Wi-Fi module, or PC software. |
| ▶ Optimised Charging — Dedicated port for an optional remote battery temperature sensor. |
Technical Specifications
| Parameter | Value |
|---|---|
| System Voltage | 12V / 24V Auto |
| Rated Charge Current | 30A |
| Max. PV Input Voltage | 150V DC |
| Max. PV Input Power (12V) | 390W |
| Max. PV Input Power (24V) | 780W |
| MPPT Tracking Efficiency | ≥99.5% |
| Conversion Efficiency | ≥95% |
| Battery Compatibility | Sealed, Gel, Flooded, User-defined, Lithium |
| Temperature Compensation | -3mV/°C/2V (Auto) |
| Communication Port | RS485 / RJ45 |
| Grounding | Negative Common |
| Self-Consumption | <60mA (12V), <30mA (24V) |
| Operating Temperature | -35°C to +55°C |
| Dimensions (L x W x H) | 28.1 x 15.9 x 6.0 cm |
| Weight | 2.2 kg |
Charging & Battery Modes
The Photonic Universe TR3215BN employs an intelligent multi-stage charging algorithm to ensure optimal battery health and longevity. It supports various battery types, including Sealed, Gel, Flooded, and User-defined lead-acid batteries. Lithium battery charging is also possible when a specific program is selected via monitoring tools.
Automatic temperature compensation adjusts charging parameters based on battery temperature, further enhancing charging accuracy and extending battery lifespan. The controller's auto 12V/24V detection simplifies setup, automatically configuring itself to match your battery bank voltage.
For enhanced control and monitoring, the controller features an RS485/RJ45 communication interface. This allows connection to an optional remote meter (MT50), a Wi-Fi module for smartphone app integration, or PC software (Solar Station Monitor) for detailed data analysis and custom parameter programming.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Sheds | Provides reliable power management for lighting, small appliances, and tools in remote locations. |
| Motorhomes & Caravans | Efficiently charges leisure batteries from roof-mounted solar panels for extended travel. |
| Boats & Marine Systems | Maintains battery banks for navigation, communication, and onboard electrical needs. |
| Small Commercial Systems | Powers remote monitoring stations, security systems, or telecommunication equipment. |
| Backup Power Solutions | Integrates into small-scale backup systems to keep essential loads running during outages. |
Built-In Protection Functions
The Photonic Universe TR3215BN is equipped with a comprehensive suite of electronic protection features to safeguard your solar system and ensure long-term reliability. These include protection against overcharging • deep discharge • solar panel overvoltage • overload • short circuit • reverse polarity • and reverse current prevention (to stop battery drain at night). The controller also features self-diagnostic capabilities to identify and highlight system errors.
Common Questions
What is MPPT technology and why is it important?
MPPT (Maximum Power Point Tracking) technology allows the charge controller to find the optimal voltage and current point of your solar panels. This ensures maximum power extraction, leading to significantly higher energy yields (up to 30% more) compared to older PWM controllers, especially in varying weather conditions.
Can this controller charge lithium batteries?
Yes, the Photonic Universe TR3215BN is compatible with lithium batteries. You can select a dedicated lithium battery charging program or create a user-defined profile using the optional PC software or mobile app.
What is the maximum solar panel voltage I can connect?
This controller supports a maximum solar panel open-circuit voltage of 150V DC. This wide input range allows for greater flexibility in panel configuration, including connecting higher voltage panels or multiple panels in series.
Do I need a remote meter or other accessories?
While the controller operates automatically, optional accessories like the MT50 remote meter, Wi-Fi module, or PC connection cable enhance monitoring and control. These allow you to view real-time data, adjust settings, and customise charging parameters for your specific system needs.
Installation Notes
- Always connect the battery to the charge controller first before connecting any solar panels.
- Ensure all power connections are tight to prevent excessive heating from loose contacts.
- Install appropriate external fuses or breakers for both the solar array and battery connections.
- Mount the controller indoors in a well-ventilated area, away from direct sunlight and moisture.
- The controller features negative common grounding, allowing negative connections to be earth grounded if required.
Before You Buy
- Verify your battery system voltage (12V or 24V) matches the controller's auto-detection capability.
- Confirm your total solar panel power (Watts) does not exceed 390W for 12V systems or 780W for 24V systems.
- Check that your solar panel's open-circuit voltage (Voc) does not exceed 150V.
- Consider any optional accessories (remote meter, Wi-Fi module, PC cable) if advanced monitoring or customisation is desired.
- Ensure you have adequate wiring (up to 16mm²) and appropriate overcurrent protection for your system.
Always verify product specifications and compatibility with your specific solar system components before purchase. This Photonic Universe controller is backed by a 2-year manufacturer warranty.
