High efficiency 10A MPPT solar charge controller for solar panels up to 130W (12V) / 260W (24V) up to 100V
High efficiency 10A MPPT solar charge controller for solar panels up to 130W (12V) / 260W (24V) up to 100V
SKU:PTR1210AN
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

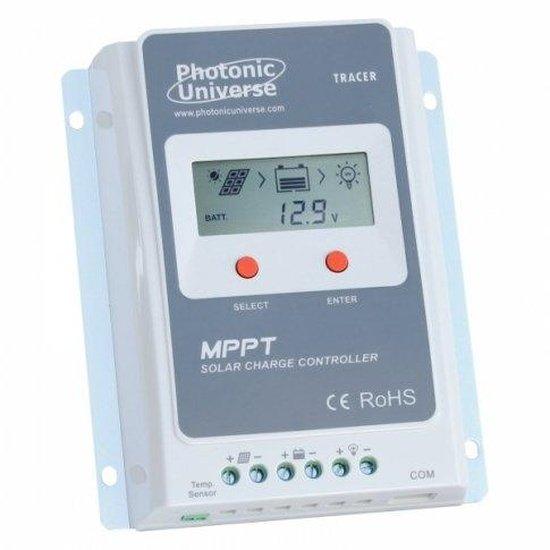

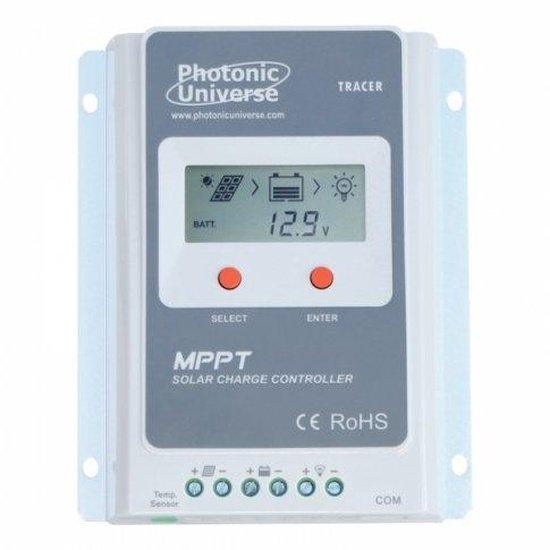

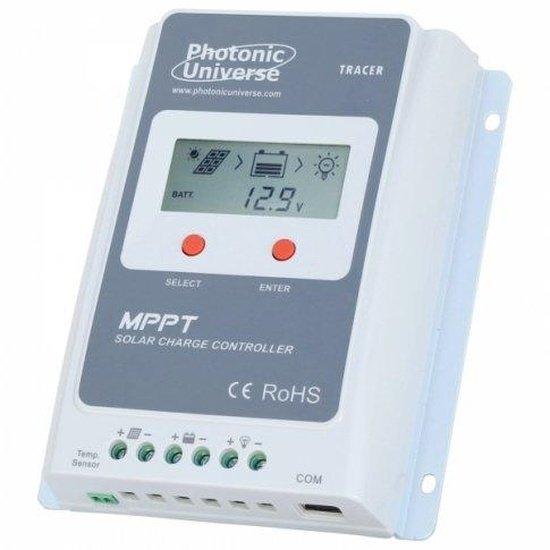

10A MPPT Solar Charge Controller
Model PTR1210AN | 12V/24V Auto | Up to 100V PV Input
The Photonic Universe 10A MPPT Solar Charge Controller (PTR1210AN) is engineered for high efficiency in off-grid solar systems. Utilising advanced Maximum Power Point Tracking (MPPT) technology, it intelligently optimises power extraction from solar panels, ensuring your battery receives the maximum available charge. This controller is compatible with both 12V and 24V battery systems, automatically detecting the voltage for seamless integration.
Designed to work with solar panels up to 100V, it efficiently manages solar arrays with a combined input power of up to 130W for 12V systems or 260W for 24V systems. Its wide input voltage range makes it particularly effective when solar panel voltage significantly exceeds battery voltage, enhancing overall system performance compared to traditional PWM controllers.
SYSTEM EFFICIENCY: Achieves over 95% efficiency through advanced MPPT technology.
KEY FEATURES
| ▶ Advanced MPPT Technology — Maximises solar energy harvest with >95% efficiency. |
| ▶ Auto 12V/24V System Recognition — Automatically adapts to battery voltage for ease of use. |
| ▶ Wide PV Input Range — Supports solar panels up to 100V, ideal for various panel configurations. |
| ▶ Integrated LCD Display — Shows real-time charging parameters and system status. |
| ▶ Battery Type Selection — Manually select Sealed, Flooded, or Gel battery types. |
| ▶ Load Control Functions — Program load settings with timers for various DC appliances. |
| ▶ Current Limiting (10A) — Allows for future expansion of solar panel capacity. |
| ▶ Multiple Connectivity Options — Supports remote meter (MT50), Wi-Fi module, and PC software. |
| ▶ Comprehensive Protection — Built-in safeguards against common system faults. |
TECHNICAL SPECIFICATIONS
| Parameter | Value |
|---|---|
| Rated Charge Current | 10A |
| System Voltage | 12V / 24V Auto |
| Max. PV Input Voltage | 100V |
| Max. PV Input Power (12V) | 130W |
| Max. PV Input Power (24V) | 260W |
| Self-Consumption | <12mA |
| Operating Temperature | -25°C to +50°C |
| Communication Port | RS485 / RJ45 |
| Grounding | Negative Common |
| Dimensions (L x W x H) | 17.2 x 13.9 x 4.4 cm |
| Weight | 0.57 kg |
| Mounting Dimensions | 13 x 13 cm |
CHARGING & BATTERY MODES
This MPPT charge controller offers versatile battery charging capabilities, supporting a range of battery types to suit various solar setups.
| Feature | Description |
|---|---|
| Battery Compatibility | Supports Sealed, Gel, and Flooded lead-acid batteries. Lithium battery charging is possible via PC software or mobile app. |
| Charging Algorithm | Features a 3-stage charging algorithm (Bulk, Boost, Float) for lead-acid batteries, ensuring efficient and safe charging. |
| Temperature Compensation | Includes a temperature sensor for automatic charging compensation, optimising battery lifespan. A remote sensor socket is also available for precise measurements. |
| Custom Battery Settings | Via PC software, users can create custom battery types with specific charging parameters, including for lithium batteries. |
TYPICAL APPLICATIONS
| Application | Description |
|---|---|
| Off-Grid Cabins & Sheds | Ideal for powering lighting, small appliances, and charging devices in remote locations. |
| Motorhomes & Caravans | Manages leisure battery charging from solar panels, extending independence on the road. |
| Small Marine Systems | Suitable for boats and yachts to maintain battery health and power onboard electronics. |
| Backup Power Systems | Integrates into small-scale backup power solutions for essential loads during outages. |
BUILT-IN PROTECTION FUNCTIONS
The Photonic Universe PTR1210AN controller is equipped with a comprehensive suite of electronic protection features to safeguard your solar system. These include reverse current prevention at night, automatic cutoff for over-charging and deep discharge, and protection against solar panel overvoltage, overload, short circuit, and reverse polarity. The unit also features self-diagnostic capabilities to identify and address system errors, ensuring reliable and safe operation.
COMMON QUESTIONS
What types of batteries are compatible with this controller?
The controller is compatible with Sealed, Gel, and Flooded lead-acid batteries. For lithium batteries, a specific charging program can be selected using PC software or a mobile app.
How does MPPT technology benefit my solar system?
MPPT (Maximum Power Point Tracking) technology continuously tracks the optimal power voltage point of your solar panels, which changes with sunlight and temperature. This ensures maximum energy extraction, significantly boosting your solar system's efficiency compared to standard PWM controllers.
Can I monitor the controller remotely?
Yes, the controller offers multiple connectivity options. You can connect it to a remote meter (MT50), a Wi-Fi module for mobile app monitoring (Android/iOS), or directly to a PC/laptop via an RJ45 to USB cable for detailed monitoring and parameter adjustment using free software.
What is the maximum solar panel power I can connect?
The maximum combined solar panel input power is 130W for a 12V battery system and 260W for a 24V battery system. The controller has a 10A current limiting function.
INSTALLATION NOTES
- Mount the controller indoors in a well-ventilated area to ensure adequate heat dissipation.
- Prevent exposure to moisture and do not allow any contact with water.
- Ensure all power connections are tight to prevent excessive heating from loose wiring.
- Install appropriate external fuses or breakers as recommended by the manufacturer.
- Always connect the battery to the controller first before connecting solar panels.
BEFORE YOU BUY
- Confirm your battery system voltage (12V or 24V) matches the controller's auto-detection capability.
- Verify your total solar panel power does not exceed 130W for 12V systems or 260W for 24V systems.
- Ensure your solar panel open-circuit voltage (Voc) is within the controller's maximum 100V input limit.
- Consider if additional accessories (remote meter, Wi-Fi module, USB cable) are needed for advanced monitoring or lithium battery programming.
- Review the user manual for detailed wiring diagrams and operational instructions.
Always verify product specifications and compatibility with your existing solar system components before purchase. This product is covered by a 1-year manufacturer's warranty.
