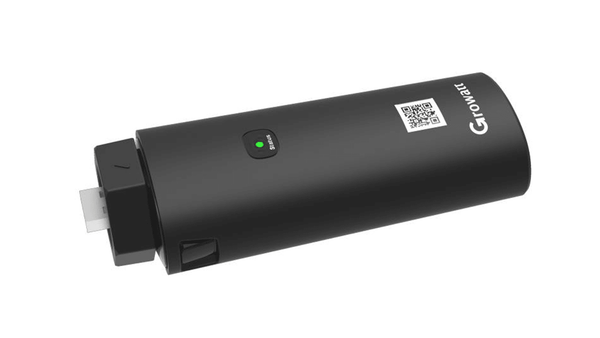

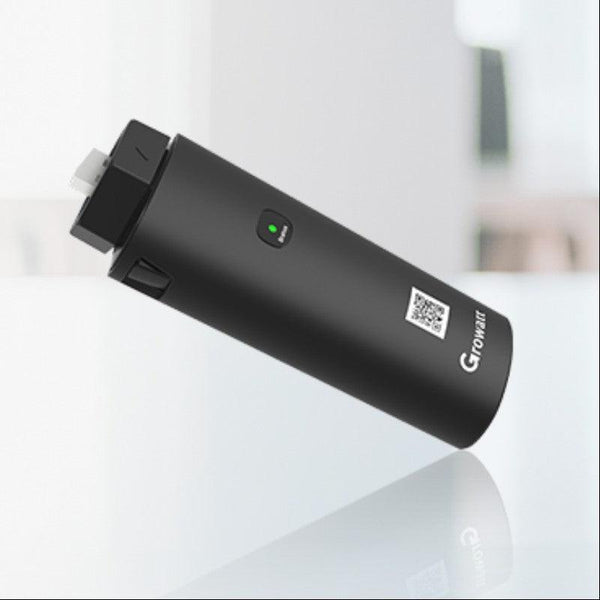

Growatt ShineWIFI-X Monitoring Dongle
Wireless Data Logger | For Growatt X and XE Series Inverters
The Growatt ShineWIFI-X is a compact and efficient wireless monitoring dongle designed to bring your Growatt solar inverter online. This plug-and-play device connects directly to your compatible inverter via USB, enabling seamless data transmission to the Growatt monitoring platform.
With the ShineWIFI-X, you can access real-time performance data, historical records, and receive fault alerts for your solar PV system through the intuitive Growatt ShineServer web portal and the ShinePhone mobile application. It offers a convenient way to manage and oversee your renewable energy generation from anywhere with an internet connection.
COMPATIBILITY NOTE: Specifically designed for Growatt MIC-X, MIN-X, MOD-X, SPH-X/XE, and 3-phase X series inverters. Requires a USB communication port.
Key Features
| ▶ Wireless Monitoring — Access real-time and historical data via the Growatt ShineServer and ShinePhone app. |
| ▶ Easy Installation — Features a cable-free, plug-and-play USB connection directly to your inverter. |
| ▶ Remote Management — Monitor and maintain your solar system from any location with internet access. |
| ▶ Data Logging — Built-in memory stores up to one month of performance data, preventing loss during network interruptions. |
| ▶ Firmware Updates — Supports Over-The-Air (OTA) firmware updates for continuous improvement. |
| ▶ 2.4GHz Wi-Fi — Utilises standard IEEE 802.11 b/g/n for reliable wireless connectivity. |

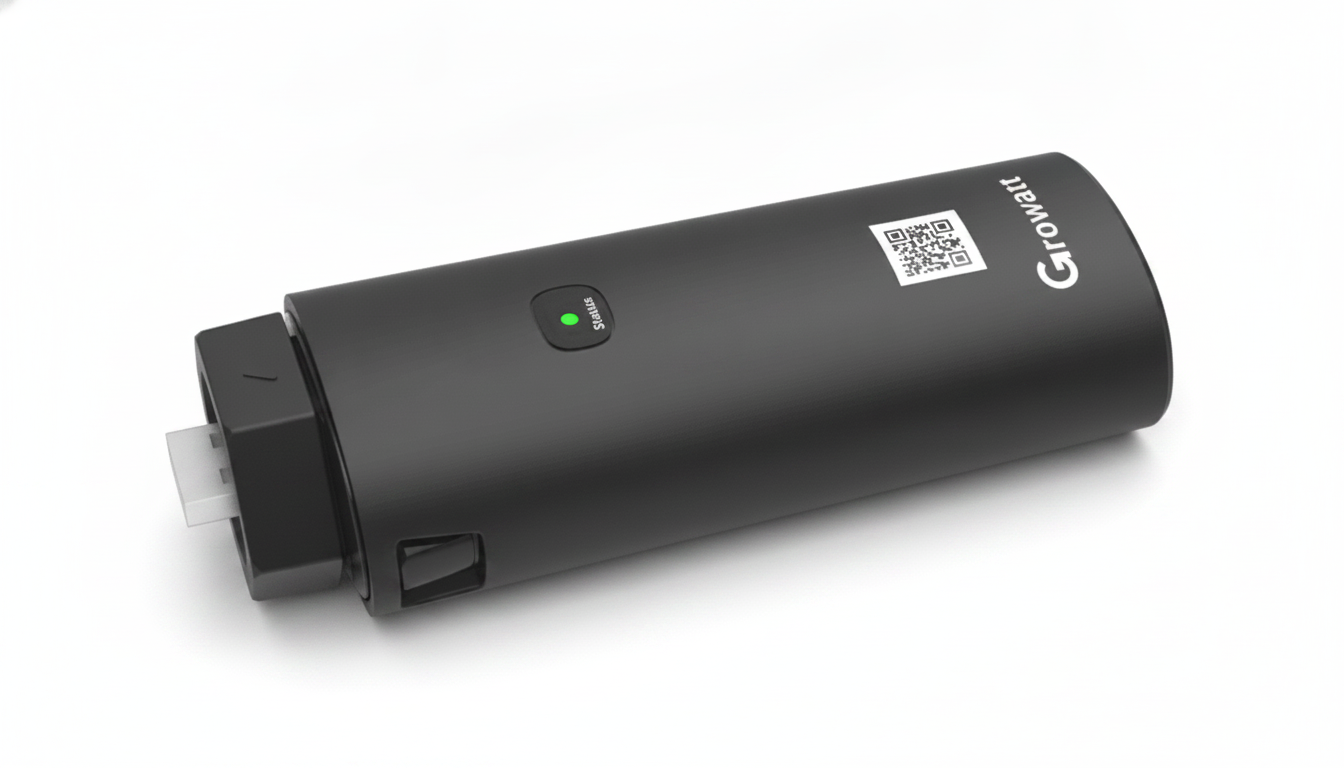

Technical Specifications
| Parameter | Value |
|---|---|
| Model | Growatt ShineWIFI-X |
| Device Type | WiFi Data Logger |
| Communication Interface | USB |
| Wireless Standard | IEEE 802.11 b/g/n |
| Frequency Band | 2.4 GHz |
| Data Transmission Interval | 5 Minutes (Default) |
| Data Storage | 1 Month (Built-in) |
| Max. Communication Range | 50m (Line of Sight) |
| Operating Voltage | 5V (via inverter) |
| Rated Power | 1.2W |
| Operating Temperature | –20°C to +65°C |
| Protection Rating | IP30 |
Monitoring & Connectivity Overview
| Aspect | Detail |
|---|---|
| Inverter Communication | USB (Modbus RTU protocol) |
| Server Communication | TCP (Modbus TCP protocol) |
| Supported Platforms | Growatt ShineServer, ShinePhone App |
| Configuration Method | ShinePhone App |

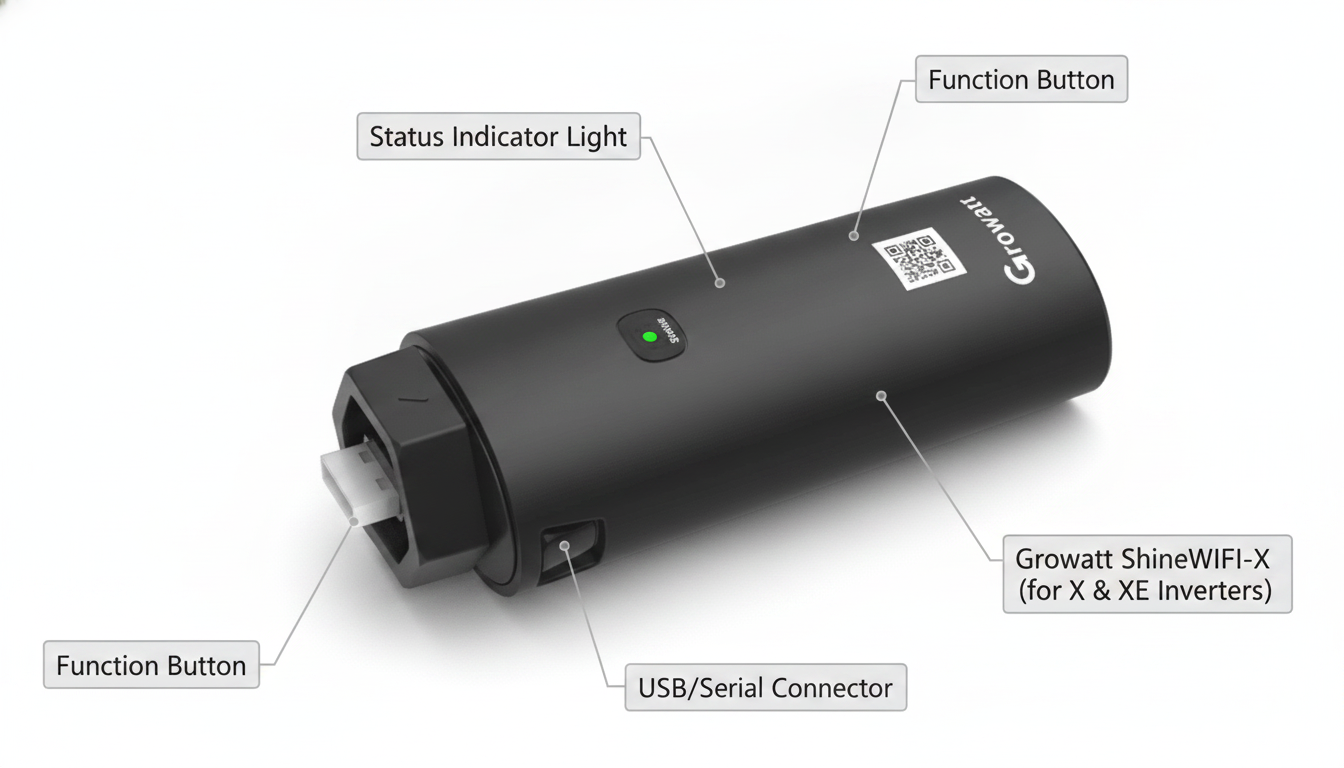

| Key Indicators | LED (Power, Communication, WiFi Status) |
Typical Applications
| Application | Description |
|---|---|
| Residential Solar PV Systems | Enables homeowners to monitor energy production and system health from their smartphone or computer. |
| Small Commercial Installations | Provides businesses with essential data for tracking performance and optimising energy management. |
| Off-Grid Solar Setups | Crucial for remote oversight of power generation and consumption in standalone systems. |
| Remote Monitoring Needs | Ideal for any Growatt X/XE series inverter installation where convenient off-site data access is required. |
Built-In Protection Functions
The Growatt ShineWIFI-X is designed for reliable operation within its specified environment. It features an IP30 protection rating, indicating suitability for indoor use and protection against solid objects larger than 2.5mm.
Common Questions
What is the primary function of the Growatt ShineWIFI-X?
The Growatt ShineWIFI-X is a wireless data logger that connects compatible Growatt inverters to the internet, enabling remote monitoring of solar PV system performance via the Growatt ShineServer and ShinePhone app.
Which Growatt inverters are compatible with this dongle?
The ShineWIFI-X is designed for Growatt's X and XE series inverters, including MIC-X, MIN-X, MOD-X, SPH-X/XE, and 3-phase X models, which feature a USB communication port.
Does the ShineWIFI-X support 5GHz Wi-Fi networks?
No, the Growatt ShineWIFI-X operates exclusively on the 2.4GHz Wi-Fi frequency band. It is not compatible with 5GHz or mixed 2.4GHz/5GHz networks unless your router can provide a dedicated 2.4GHz signal.
How is the ShineWIFI-X installed and configured?
It features a plug-and-play USB connection to the inverter. Configuration is typically done via the Growatt ShinePhone mobile application, requiring a stable 2.4GHz Wi-Fi signal at the inverter's location.
Installation Notes
- Ensure your Growatt inverter is powered on and operational before connecting the ShineWIFI-X.
- Connect the ShineWIFI-X module securely into the designated USB communication port on your inverter.
- Configuration is typically performed using the Growatt ShinePhone mobile application, available for iOS and Android devices.
- A strong and stable 2.4GHz Wi-Fi signal is essential at the inverter's location for reliable data transmission to the Growatt monitoring server.
- Refer to the Growatt user manual for detailed, step-by-step installation and configuration instructions.
Before You Buy
- Inverter Compatibility: Confirm your Growatt inverter model is from the compatible X or XE series (e.g., MIC-X, MIN-X, MOD-X, SPH-X/XE, 3-phase X) and features a USB communication port.
- Wi-Fi Network: Verify that a 2.4GHz Wi-Fi network is available at the inverter's installation site. The ShineWIFI-X does not support 5GHz Wi-Fi or mixed-band networks unless a dedicated 2.4GHz signal can be provided.
- Network Credentials: Ensure your Wi-Fi network name (SSID) and password consist only of English letters and numbers, avoiding special characters or spaces, as these can cause connection issues.
- Signal Strength: Consider the maximum communication range of 50m (line of sight) between the inverter and your Wi-Fi router for optimal performance.
Always verify product specifications and compatibility with your specific system requirements before purchase. Information is subject to change by the manufacturer.
