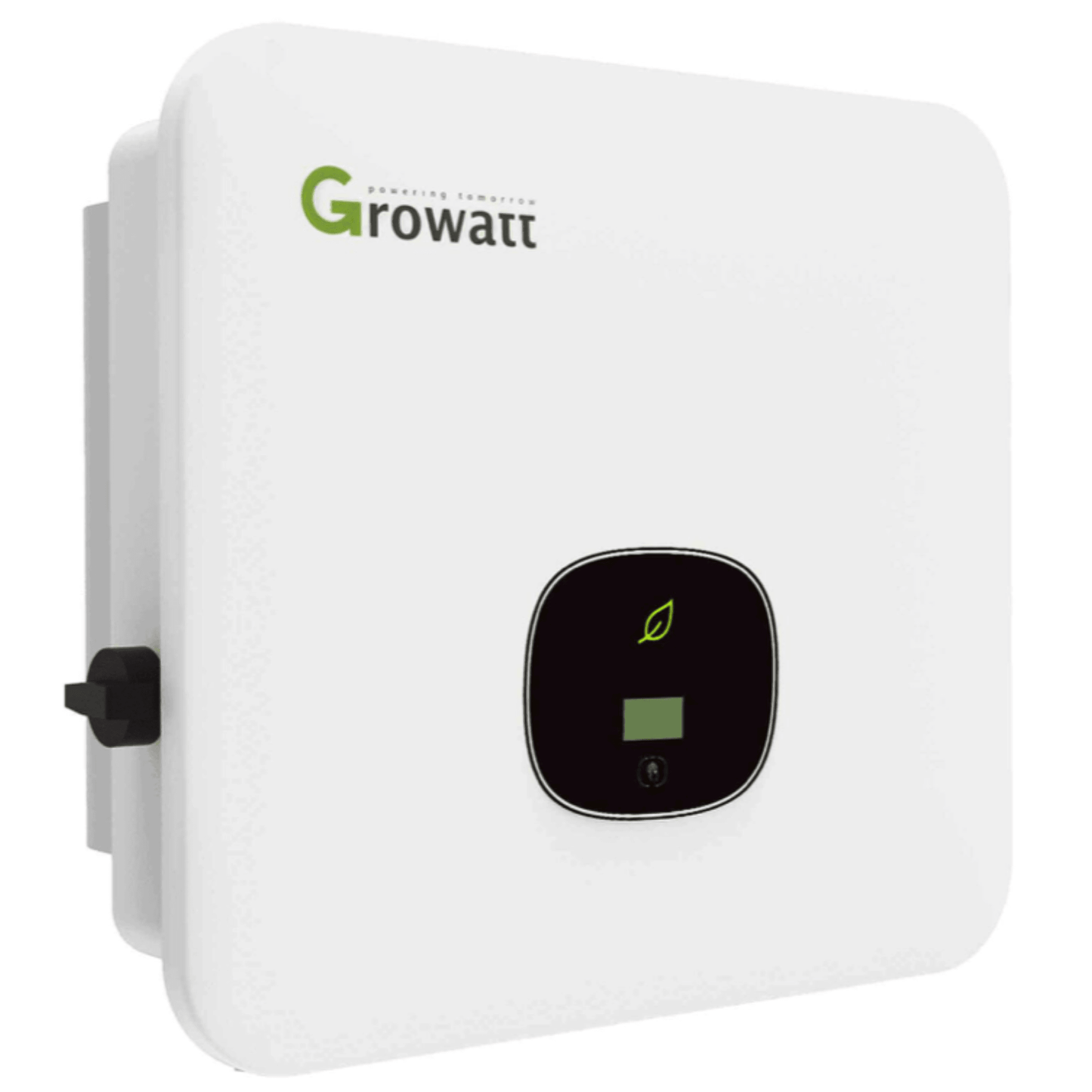

Growatt MOD 12000 TL3-X Three Phase Inverter

Growatt MOD 12000 TL3-X Three Phase Inverter

SKU:TL3-12>10k

Regular price Β£1,029.00 GBP
Regular price Sale price Β£1,029.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.

The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.

The ultra-low start-up and wide working voltages enable wider power generation windows.

AC attributes
Max power:Β 12000W
Max current: 20A
Number of phases:Β 3

DC attributes
Number of MPPTΒ 2
V range of MPPT 140 - 1000V
Max power 18000W
Max Isc currentΒ 16A
Max voltageΒ 1100V
Start up voltage 160V

System
Max efficiencyΒ 98.6%
IP ratingΒ IP66
WeightΒ 16kg
DimensionsΒ 425x387x178mm
CommunicationΒ USB/RS485 (Optional- WiFi/GPRS/LAN/RF)

Key features
  • Dual independent MPPTs
  • Built-in DC switch
  • High maximum efficiency 98.6%
  • Touch key and OLED display
  • Optional AFCI (Arc-Fault Circuit Interrupter function)
  • IP66 protection grade
  • Easy installation
