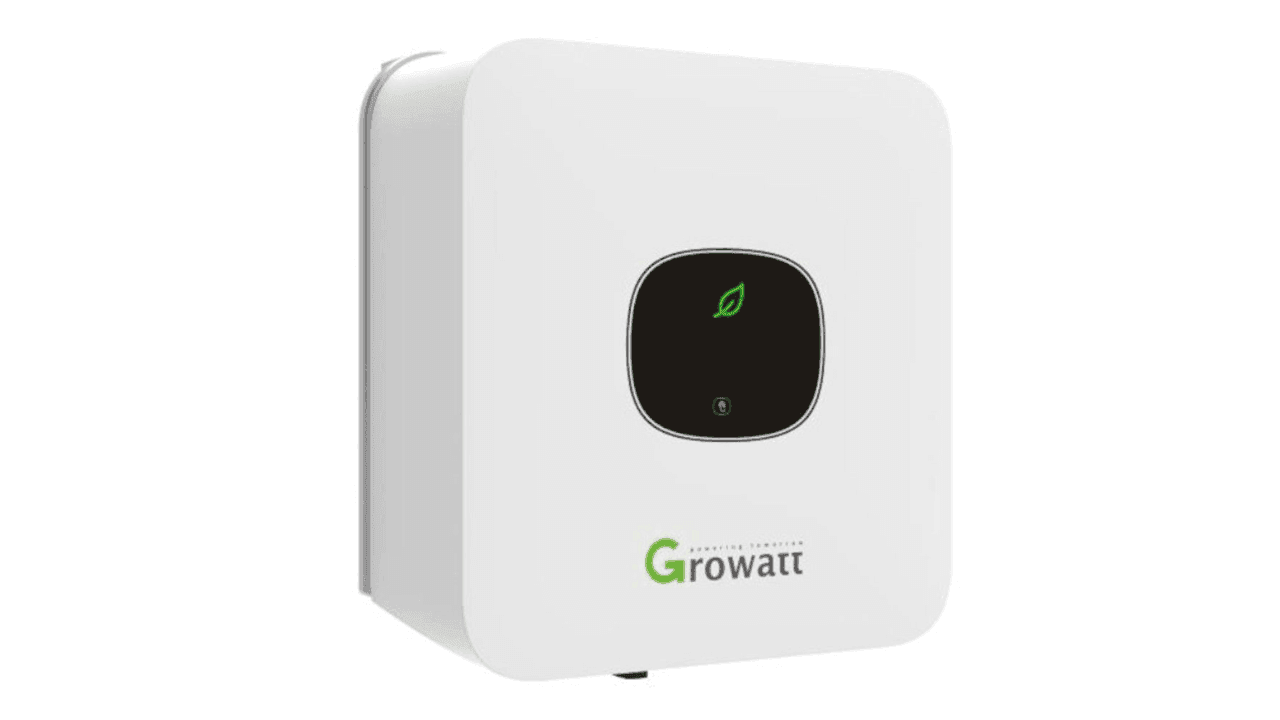

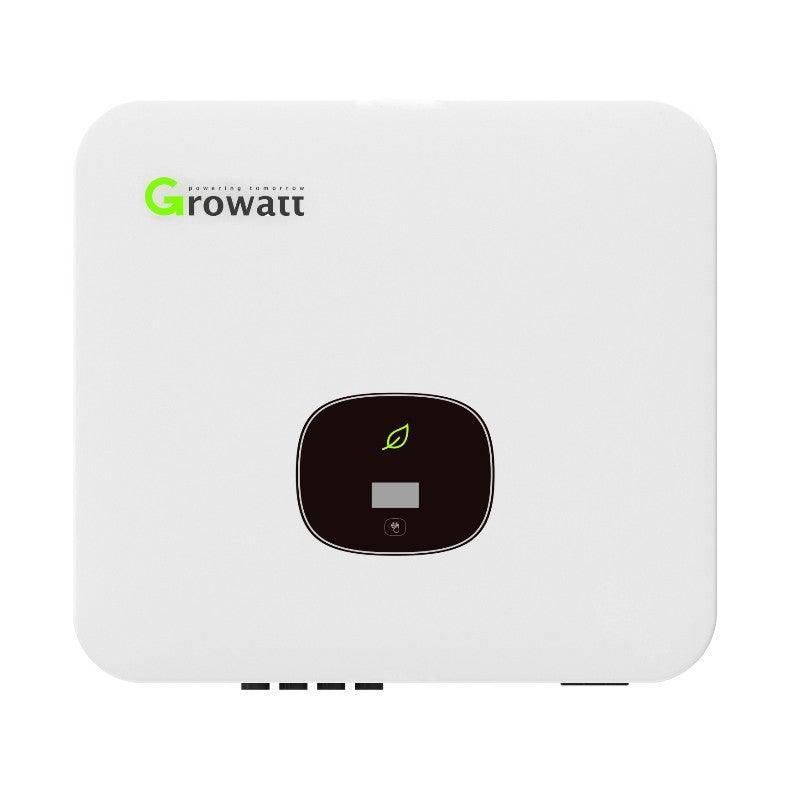

Growatt MIN 4200 TL-X Dual MPPT Single Phase Inverter (inc DC)

Growatt MIN 4200 TL-X Dual MPPT Single Phase Inverter (inc DC)

SKU:GROWATT-min4200-TL-X

Regular price Β£524.99 GBP
Regular price Sale price Β£524.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

Growatts MIN 2500-6000TL-X series are the most up-to-date smart inverter solution for residential rooftop solar systems. It sports a compact design with a touch key and OLED display thats simple and easy to use and boasts a max efficiency of up to 98.4%

  • MIN inverters require a meter to achieve the export limit function.

Β

AC attributes
Max power: 4200W
Max current: 19A
Number of phases:Β 1

DC attributes
Number of MPPTΒ 2
V range of MPPTΒ 80 - 500V
Max power 5880W
Max Isc currentΒ 16.9A
Max voltageΒ 500V
Start up voltageΒ 100V

System
Max efficiencyΒ 98.4%
IP ratingΒ IP65
Built in protectionΒ Type III AC/DC surgeΒ
Export limitationsΒ With meter or CT
WeightΒ 10.8kg
DimensionsΒ 375x350x160mm
CommunicationΒ RS485, USB, (wifi, GPRS,RF,LAN optional)
Warranty (extensions)Β 10 years

Key features

  • Dual MPPT Trackers
  • Touch Key and OLED Display
  • Efficient Power Generation
  • Support Export Control
View full details

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
G
George Anderson
The Growatt Min 4200 TL X Dual MPPT Single Phase

The Growatt Min 4200 TL X Dual MPPT Single Phase Inverter's ability to handle two separate MPPT inputs is a practical feature for optimizing solar panel performance. My tip for users is to ensure proper placement and orientation of panels for maximum efficiency. I give it 4 stars because the display could be more intuitive for easier monitoring.

I
Ivan Chen
The Growatt Min 4200 TL-X Dual MPPT Single Phase Inverter

The Growatt Min 4200 TL-X Dual MPPT Single Phase Inverter is a solid choice for efficient solar energy conversion. Its dual MPPT technology allows for optimal power generation even in less than ideal conditions. Make sure to properly size your PV array to maximize the benefits of this inverter.

H
Harry Moore
The Growatt Min 4200 TL X Dual MPPT Single Phase

The Growatt Min 4200 TL X Dual MPPT Single Phase Inverter is efficient and reliable, providing optimal power conversion for solar energy systems. Its dual MPPT feature allows for better energy harvesting, especially in situations with shading or panel orientation differences. For best results, ensure proper installation and regular maintenance to maximize performance.

T
Thomas Lee
The Growatt Min 4200 TL X Dual MPPT Single Phase

The Growatt Min 4200 TL X Dual MPPT Single Phase Inverter is efficient and reliable, providing excellent performance for solar energy systems. With its dual MPPT tracking feature, it maximizes energy production even in less than ideal conditions. Make sure to properly orient and angle your solar panels for optimal performance.
