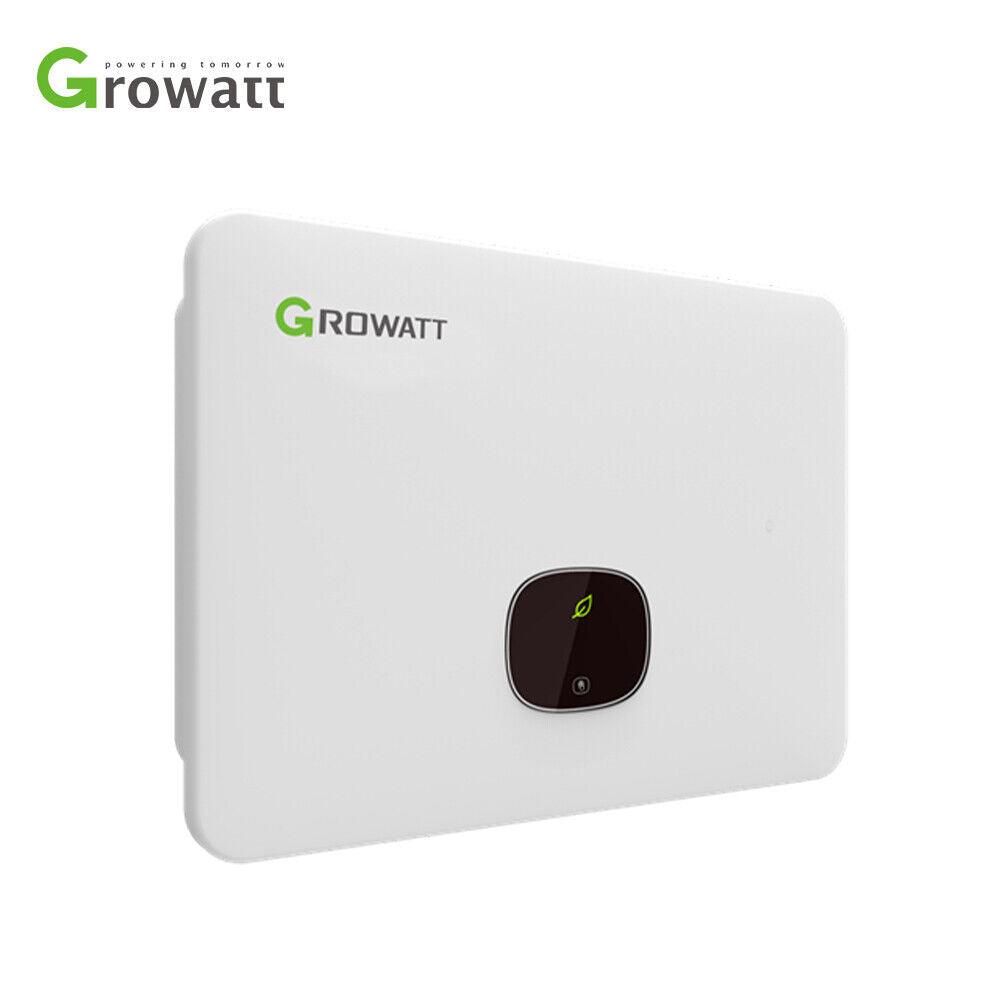

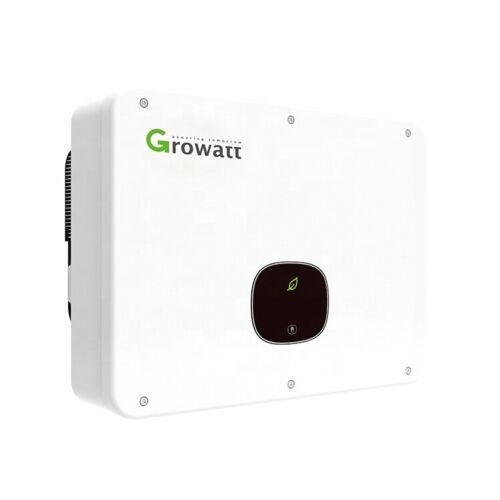

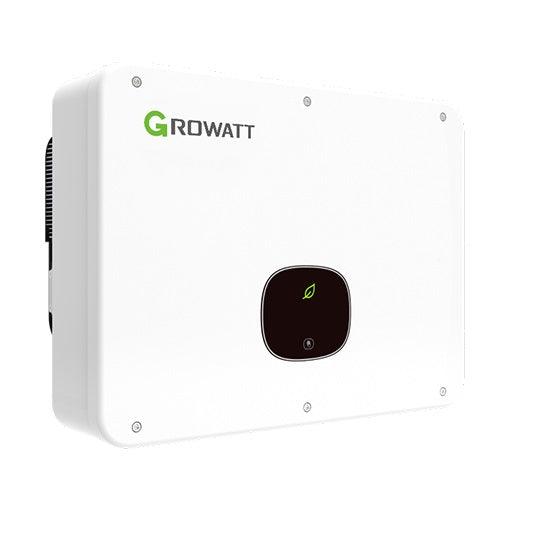

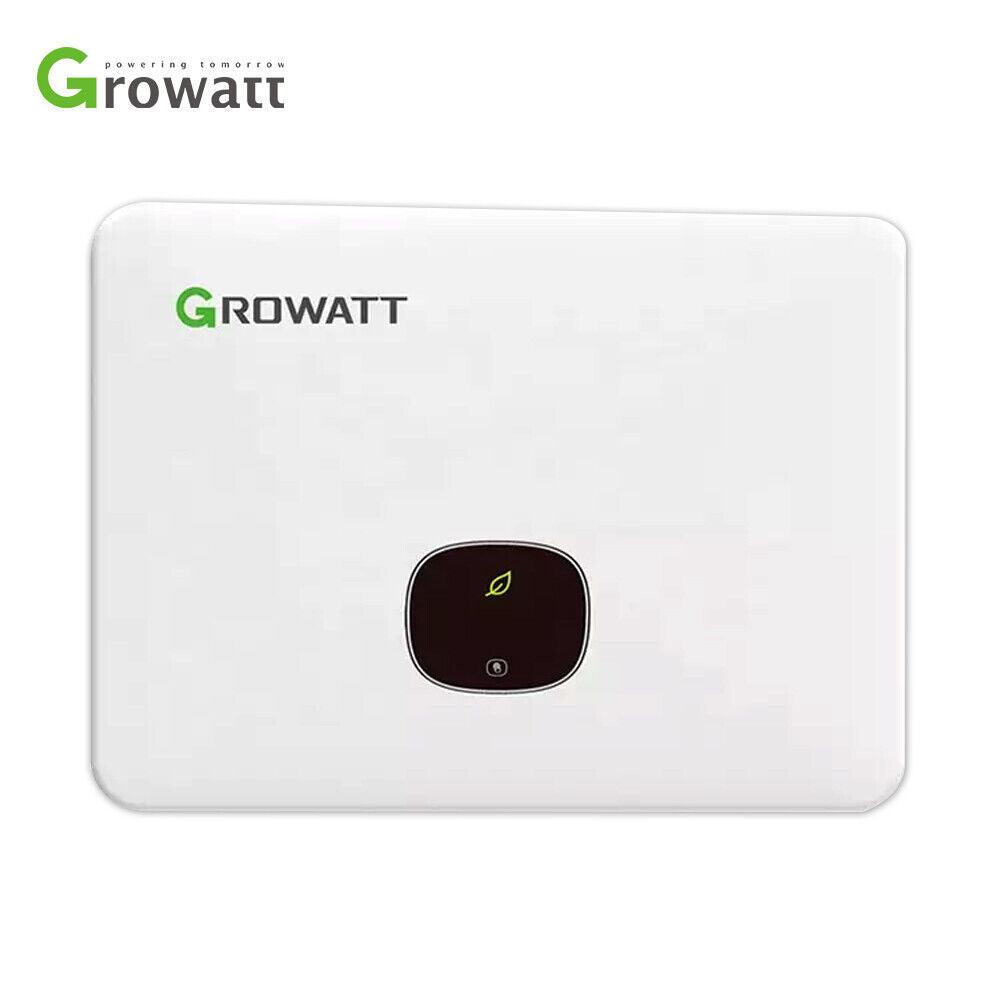

Growatt MID 40 KTL3-X Three Phase Inverter (4x MPPT)
Growatt MID 40 KTL3-X Three Phase Inverter (4x MPPT)
SKU:MID KTL3-40
Regular price
£2,199.00 GBP
Regular price
Sale price
£2,199.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.
The new OLED screen makes settings changes on the unit itself easier then ever.
Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.Now comes with a 10 year warranty as standard.

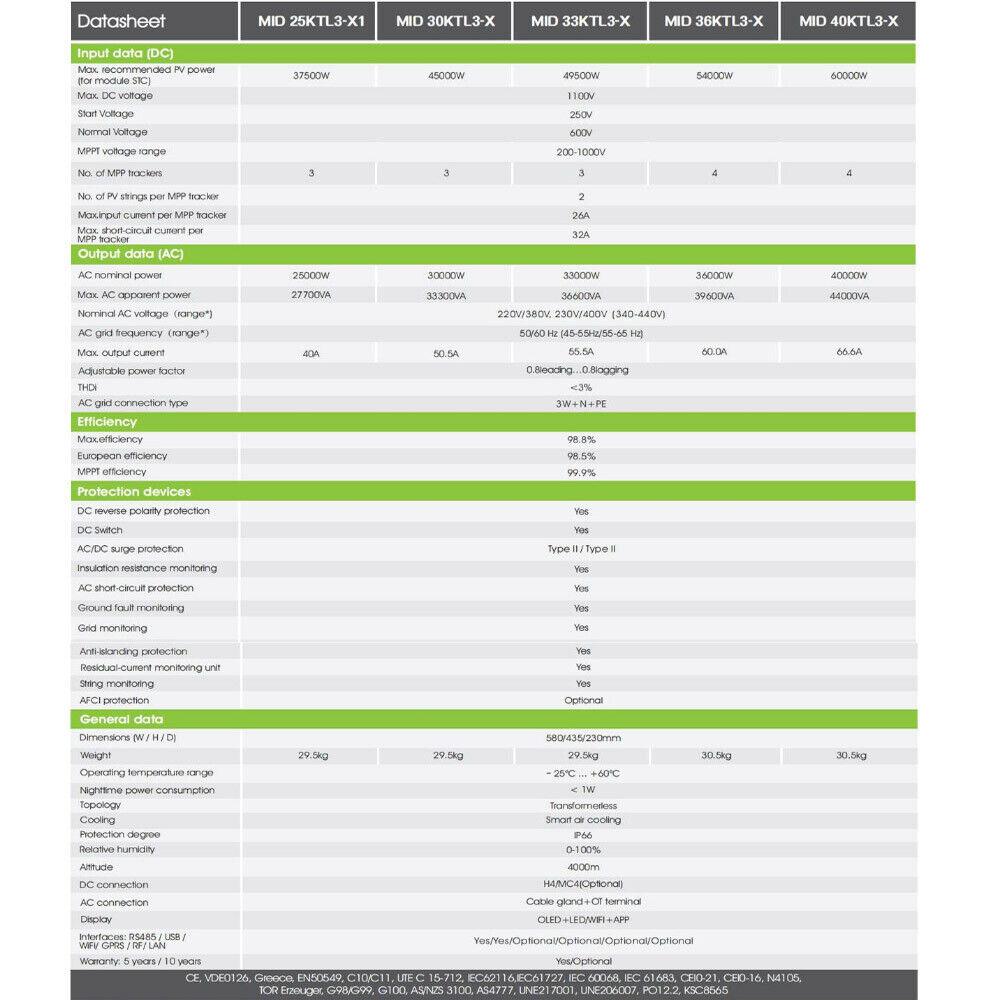

AC attributes
Max power: 40KW
Max current: 66.6A
Number of phases: 3
DC attributes
Number of MPPT 4
Strings per MPPT 2
Strings per MPPT 2
V range of MPPT 200 - 1000V
Max power 60KW
Max Isc current 32A
Max voltage 1100V
Start up voltage 250V
System
Max efficiency 98.8%
IP rating IP65
Built in protection AC/DC Type II SPD
Export limitations With meter
Weight 29.5kg
Dimensions 580x435x230mm
Communication USB, RS485 (wifi, GPRS, 4G, optional)
Warranty (extensions) 10 years
Key features
Compact design
Easy-to-use OLED display
Easy-to-use OLED display
Flexible communication options
