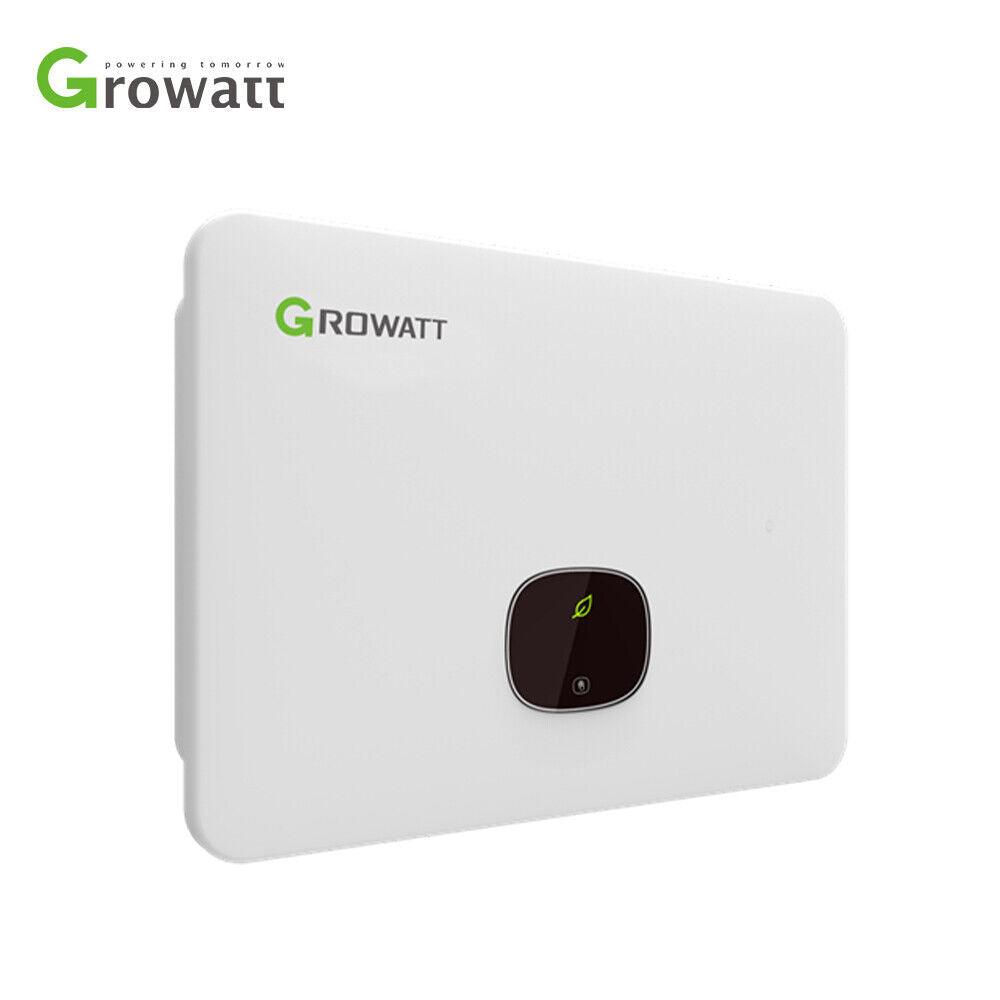

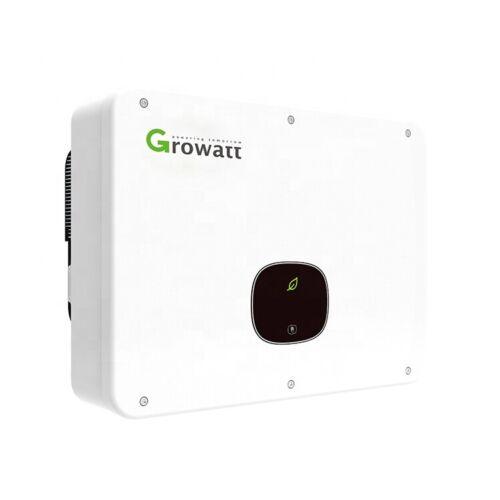

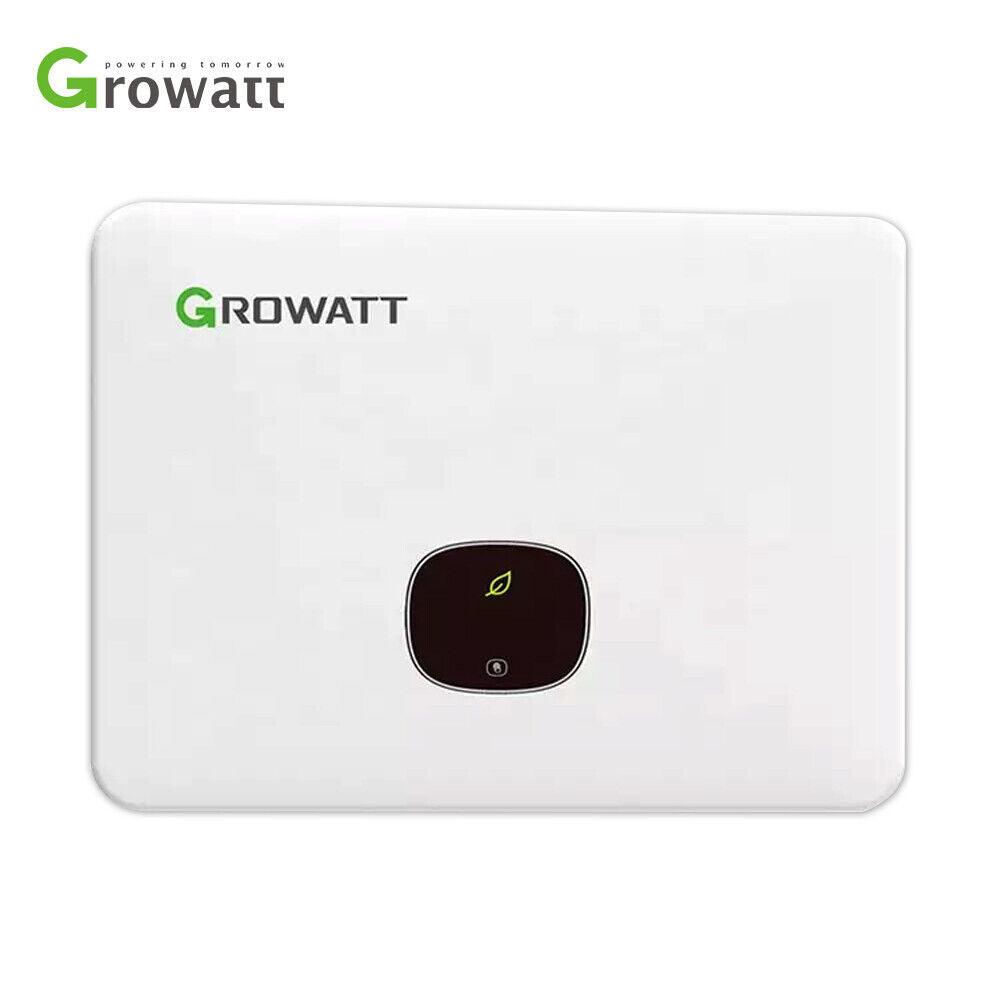

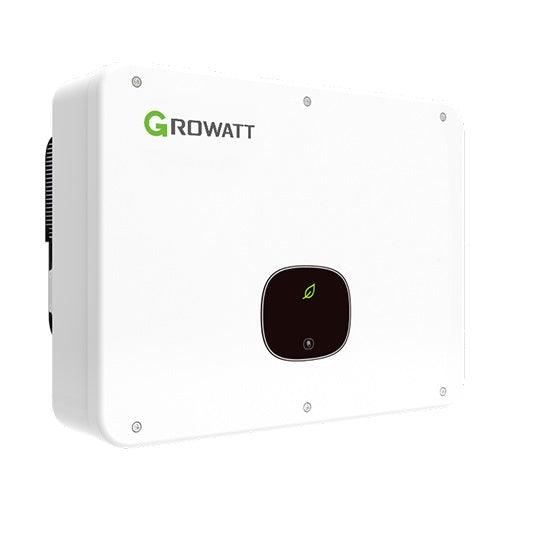

Growatt MID 20 KTL3-X Three Phase Inverter with dual MPPT

Growatt MID 20 KTL3-X Three Phase Inverter with dual MPPT

SKU:MID KTL3-20

Regular price Β£1,449.00 GBP
Regular price Sale price Β£1,449.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

  • The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

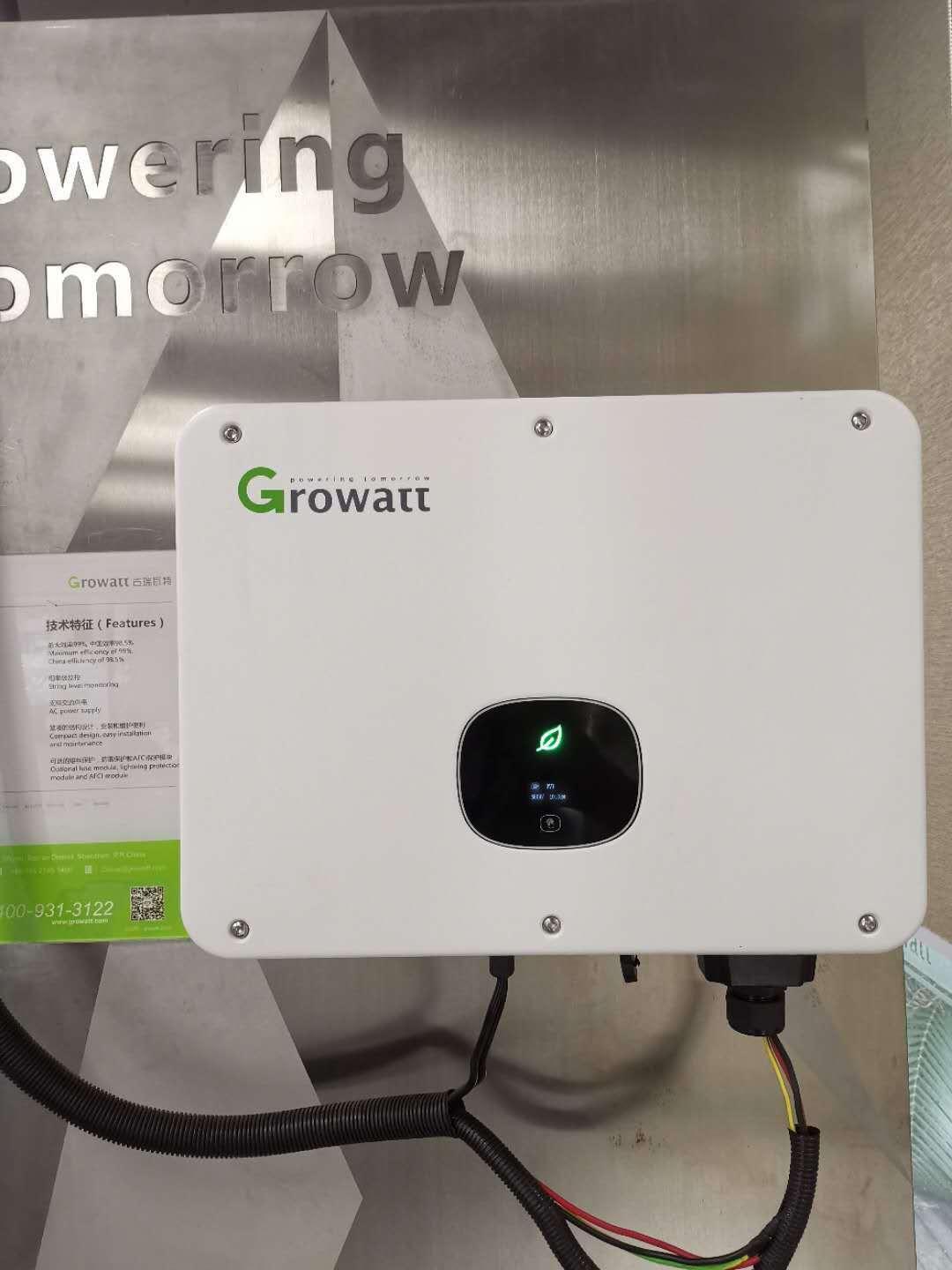

    The new OLED screen makes settings changes on the unit itself easier then ever.

    Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require theΒ Shinelink-XΒ for monitoring.

    Now comes with a 10 year warranty as standard.

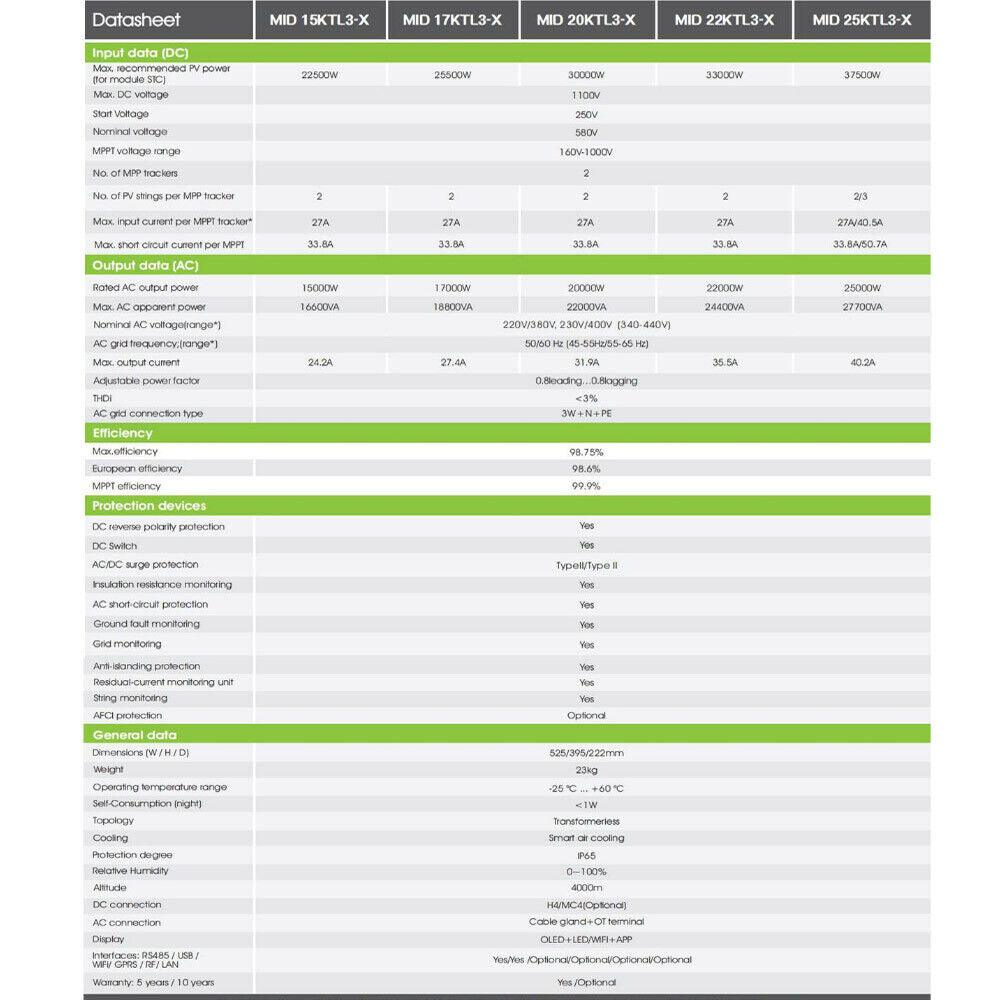

    AC attributes
    Max power: 20000W
    Max current: 31.9A
    Number of phases:Β 3

    DC attributes
    Number of MPPT 2
    Strings per MPPT 2
    V range of MPPTΒ 200 - 1000V
    Max power 26000W
    Max Isc currentΒ 32A
    Max voltageΒ 1100V
    Start up voltageΒ 250V

    System
    Max efficiencyΒ 98.6%
    IP ratingΒ IP65
    Built in protectionΒ AC/DC Type II SPD
    Export limitationsΒ WithΒ meter
    Weight
    23kg
    Dimensions
    525x395x222mm
    Communication
    USB, RS485 (wifi, GPRS, 4G, optional)
    Warranty (extensions)
    10 years
    Key features

    Compact design
    Easy-to-use OLED display
    Flexible communication options
