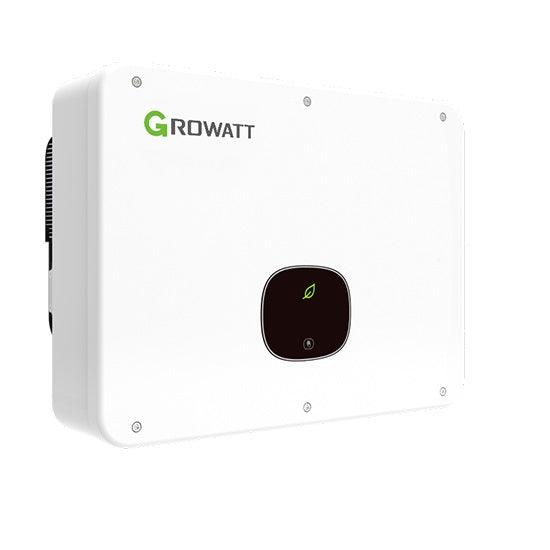

Growatt MID 17 KTL3-X Three Phase Inverter with dual MPPT

Growatt MID 17 KTL3-X Three Phase Inverter with dual MPPT

MID KTL3-17

£1,349.00 GBP
£1,349.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

  • The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

    The new OLED screen makes settings changes on the unit itself easier then ever.

    Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.

    Now comes with a 10 year warranty as standard.

    AC attributes
    Max power: 17000W
    Max current: 27.4A
    Number of phases: 3
    DC attributes
    Number of MPPT 2
    Strings per MPPT 2
    V range of MPPT 200 - 1000V
    Max power 22100W
    Max Isc current 32A
    Max voltage 1100V
    Start up voltage 250V
    System
    Max efficiency 98.6%
    IP rating IP65
    Built in protection AC/DC Type II SPD
    Export limitations With meter
    Weight
    23kg
    Dimensions
    525x395x222mm
    Communication
    USB, RS485 (wifi, GPRS, 4G, optional)
    Warranty (extensions)
    10 years
    Key features

    Compact design
    Easy-to-use OLED display
    Flexible communication options
